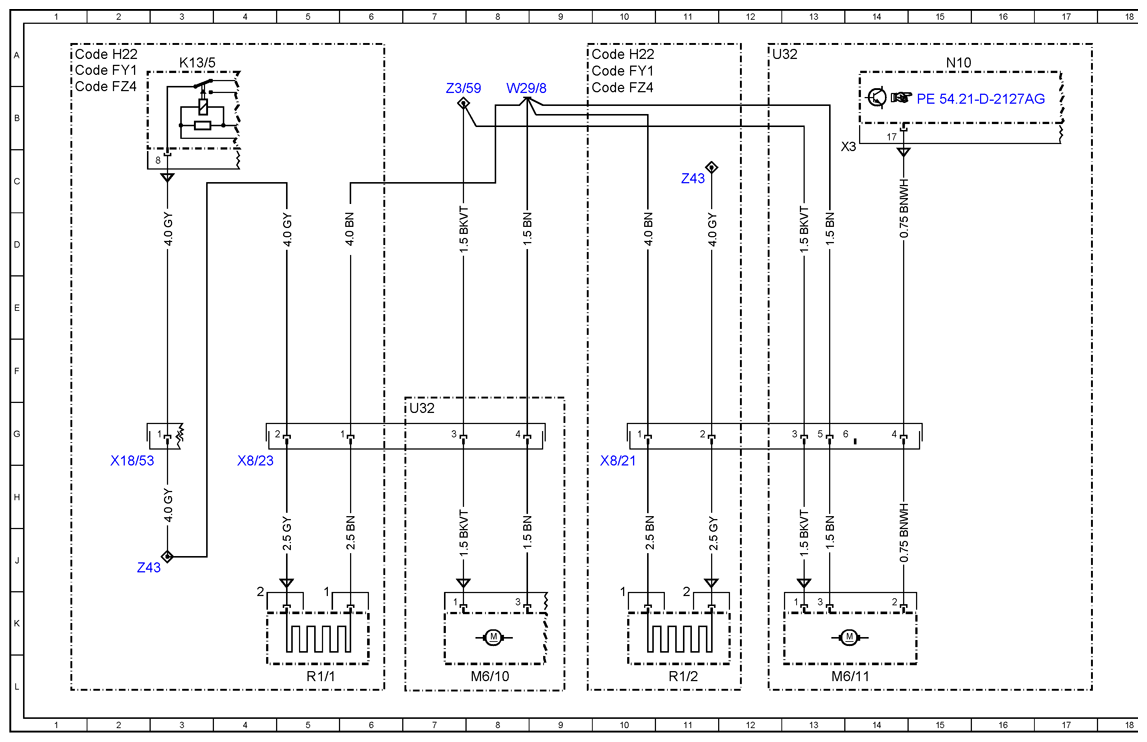

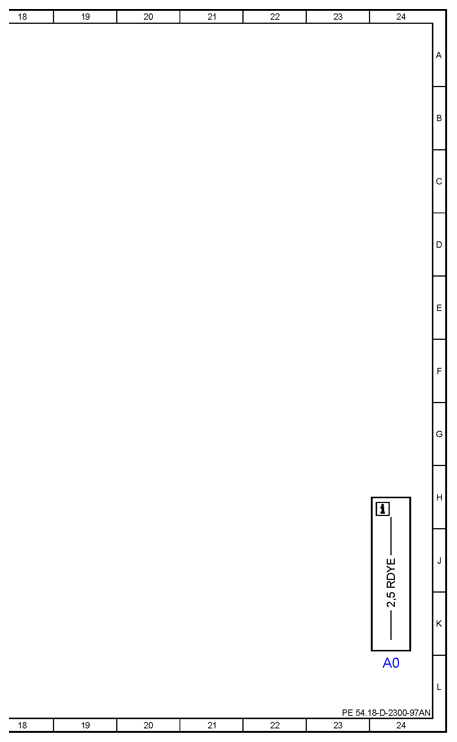

| AO |
Color code key |
24L |
| Code FY1 |
Theft protection package |
9A |
| Code FY1 |
Theft protection package |
1A |
| Code FZ4 |
Anti-theft alarm system with interior protection and tow-away protection |
9B |
| Code FZ4 |
Anti-theft alarm system with interior protection and tow-away protection |
1B |
| Code H22 |
Heated rear window |
1A |
| Code H22 |
Heated rear window |
9A |
| K13/5 |
Heated rear window relay 1 |
3A |
| M6/10 |
Left rear-end door wiper motor |
8L |
| M6/11 |
Right rear-end door wiper motor |
13L |
| N10 |
SAM control unit |
15A |
| R1/1 |
Left heated rear window |
5L |
| R1/2 |
Right heated rear window |
11L |
| U32 |
Valid for MPV version |
12A |
| U32 |
Val id for MPV version |
7G |
| W29/8 |
Left D-pillar ground point |
8B |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
2H |
| X8/21 |
Right roof/rear-end door electrical connector |
10H |
| X8/23 |
Left roof/rear-end door electrical connector |
4H |
| Z3/59 |
Circuit 15 connector sleeve, rear-end door wiper motor |
7B |
| Z43 |
Heated rear window connector sleeve |
3J |
| Z43 |
Heated rear window connector sleeve |
11C |
