| A0 |
Color code key |
144L |
| A1 |
Instrument cluster |
71L |
| A44/9 |
Center front PARKTRONIC warning element |
87L |
| A46 |
Tone signal generator |
119L |
| A49/4 |
Stationary heater Telestart receiver |
99L |
| A56 |
Tachograph |
63L |
| A9 |
Refrigerant compressor |
35A |
| A9 |
Refrigerant compressor |
49A |
| A9/10 |
Refrigerant compressor with magnetic clutch |
51A |
| B12 |
Refrigerant pressure sensor |
31A |
| B12 |
Refrigerant pressure sensor |
39A |
| Code BB9 |
|
64A |
| Code CE2 |
|
81A |

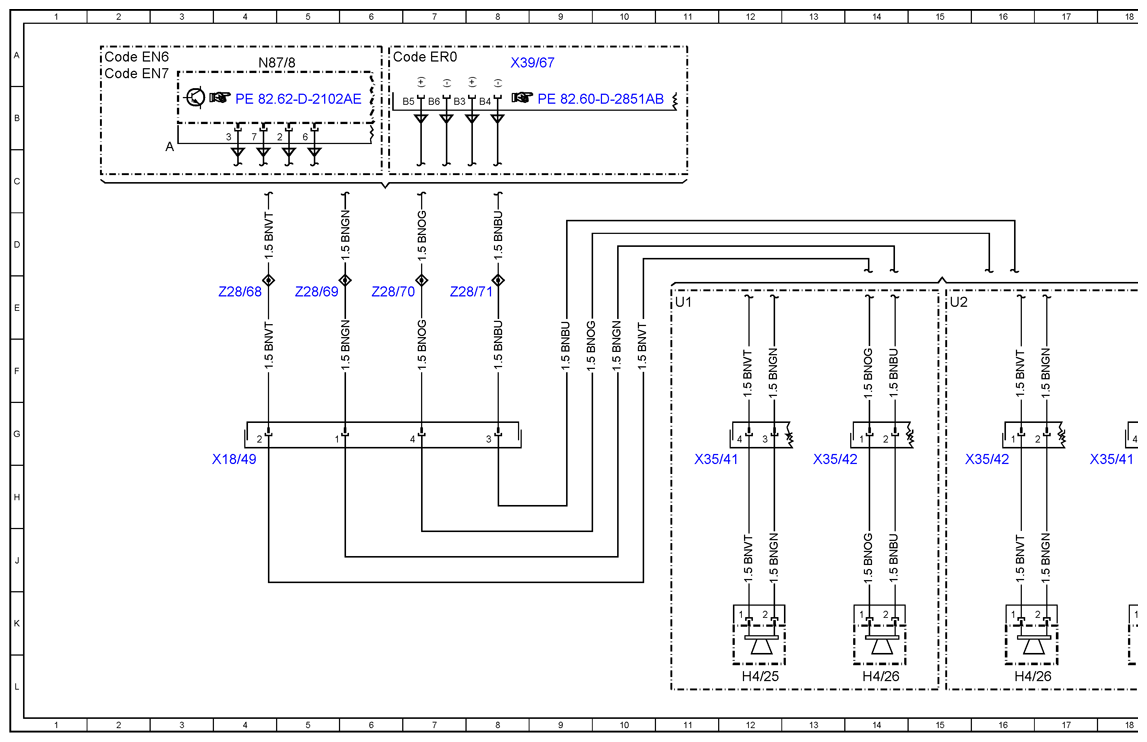

| Code EN6 |
Audio 10 |
2A |
| Code EN7 |
Audio 15 |
2A |
| Code ER0 |
Radio preinstallation |
6A |
| Code EZ8 |
PARKTRONIC |
85A |
| Code G40 |
Automatic transmission |
54H |
| Code G42 |
7G-TR0NIC PLUS |
54H |
| Code H12 |
Auxiliary water heater |
41A |
| Code H12 |
Auxiliary water heater |
95A |
| Code H12 |
Auxiliary water heater |
137G |
| Code H13 |
Additional heat exchanger in passenger/load compartment |
24H |
| Code H13 |
Additional heat exchanger in passenger/load compartment |
41A |
| Code H13 |
Additional heat exchanger in passenger/load compartment |
112A |
| Code H15 |
Seat heater for front passenger |
130G |
| Code H16 |
Seat heater for driver |
134G |
| Code H72 |
Electric roof ventilator |
100A |
| Code HH2 |
Electric auxiliary air heater |
24H |
| Code HH2 |
Electric auxiliary air heater |
112A |
| Code HY1 |
Radio remote control for auxiliary water heater |
98F |
| Code HZ5 |
10 kW auxiliary water heater with timer |
41B |
| Code HZ5 |
10 kW auxiliary water heater with timer |
137H |
| Code HZ9 |
Heater booster |
41B |
| Code HZ9 |
Heater booster |
92A |

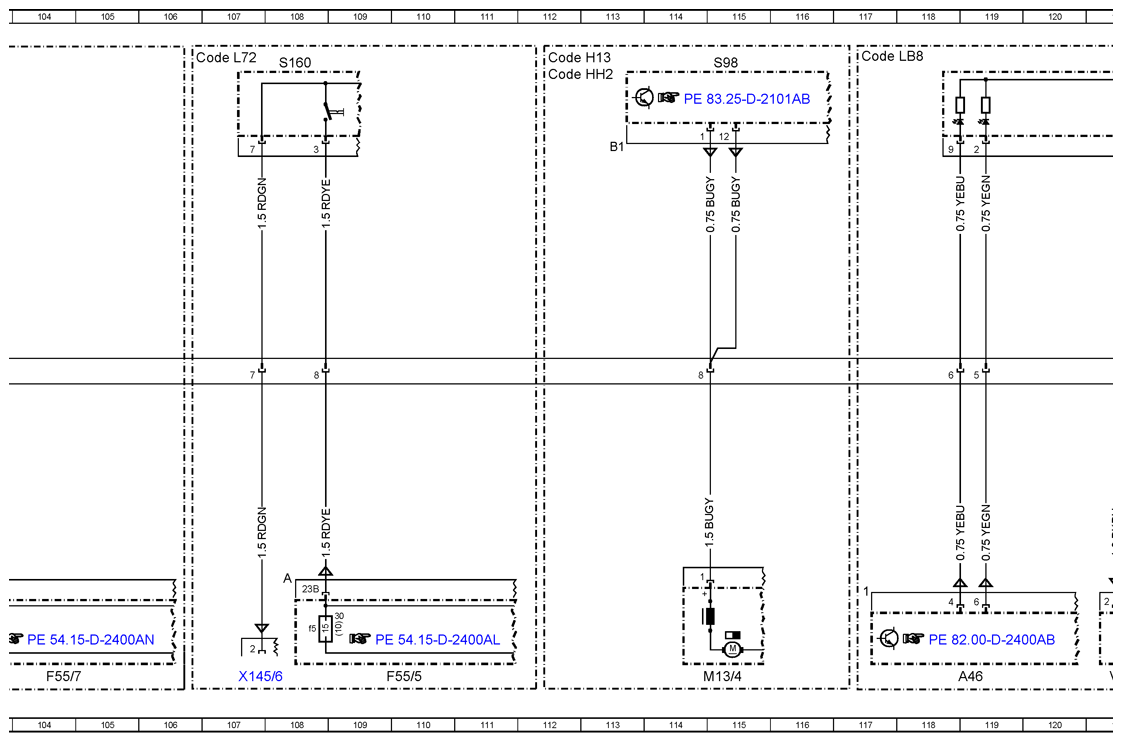

| Code L72 |
|
106A |
| Code LB8 |
|
117A |
| Code M53 |
Constant rpm control |
58H |
| Code MT4 |
Variable electronic rpm regulator |
58J |
| Code MZ2 |
Natural gas engine M271 |
43A |
| Code MZ2 |
Natural gas engine M271 |
47B |
| Code N05 |
Countershaft power take-off (2c) without flange |
58H |
| Code N07 |
Countershaft power take-off (2b) with flange |
58H |
| E2/7 |
Right lamp unit |
90A |
| E2/7m1 |
Headlamp range adjustment motor |
91B |
| F55/1 |
Fuse block (1, 9-pin) |
128L |
| F55/1f8 |
ATA rotating beacon/tone sequence fuse 8 |
127K |

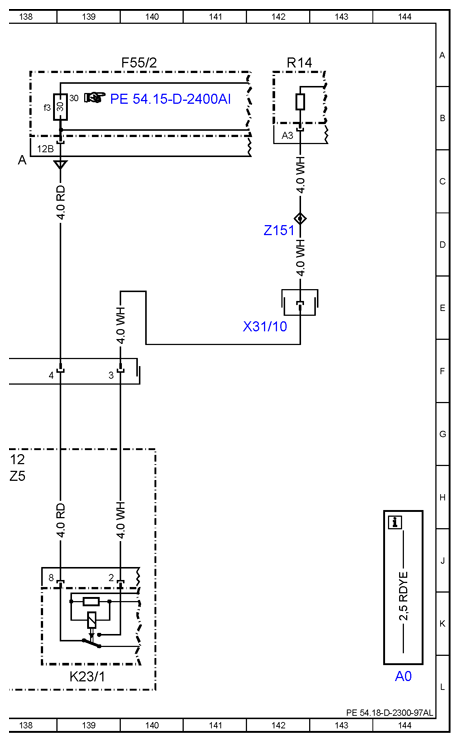

| F55/2 |
Fuse block 2 (9-pin) |
67L |
| F55/2 |
Fuse block 2 (9-pin) |
140A |
| F55/2f3 |
Front blower motor fuse 12 |
138B |
| F55/2f6/1 |
Brake system fuse 15 |
66K |

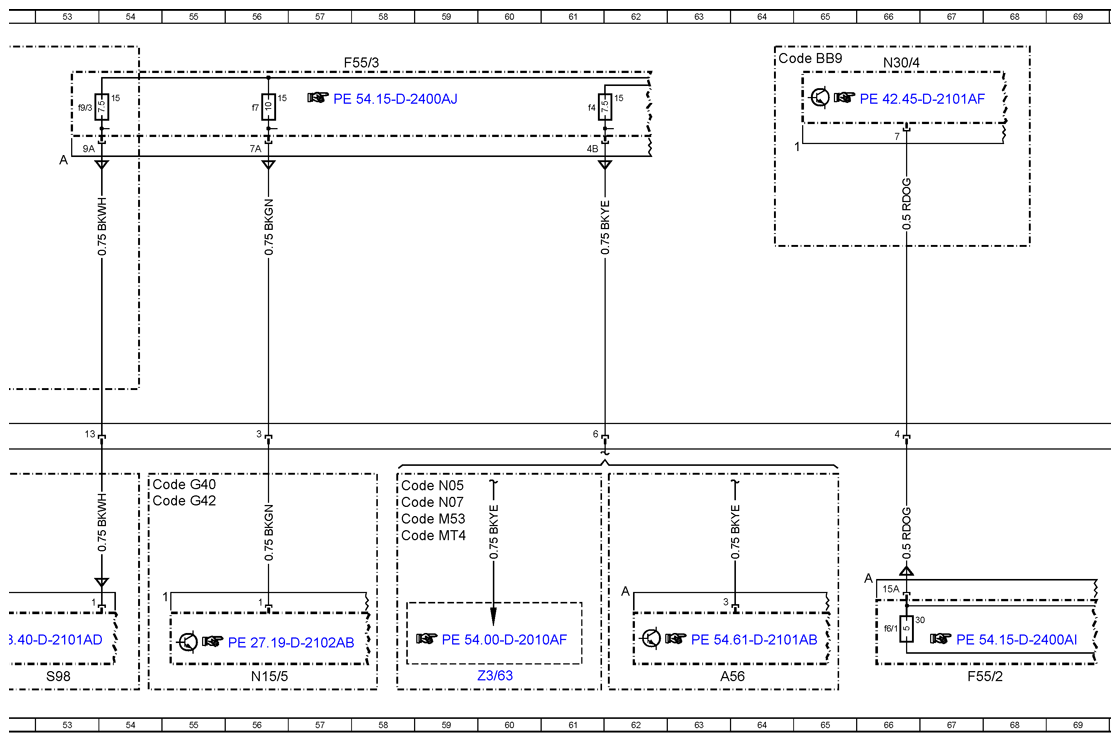

| F55/3 |
Fuse block 3 (9-pin) |
58A |
| F55/3f4 |
AAG/tachograph/ADR fuse 4 |
61B |
| F55/3f7 |
Electronic selector lever module fuse 7 |
56B |
| F55/3f9/3 |
Refrigerant compressor magnetic clutch fuse 9 |
53B |
| F55/5 |
Fuse block 5 (9-pin) |
110L |
| F55/5f5 |
Other make body electrical system/left rear socket fuse 23 |
108K |
| F55/7 |
Fuse block 7 (9-pin) |
104L |
| F55/7f3/1 |
Siren/roof ventilator fuse 39 |
103K |
| G2/8 |
Alternator |
26A |
| G2/8 |
Alternator |
45A |
| H4/25 |
Left bass midrange speaker |
12L |
| H4/25 |
Left bass midrange speaker |
18L |
| H4/26 |
Right bass midrange speaker |
14L |
| H4/26 |
Right bass midrange speaker |
16L |

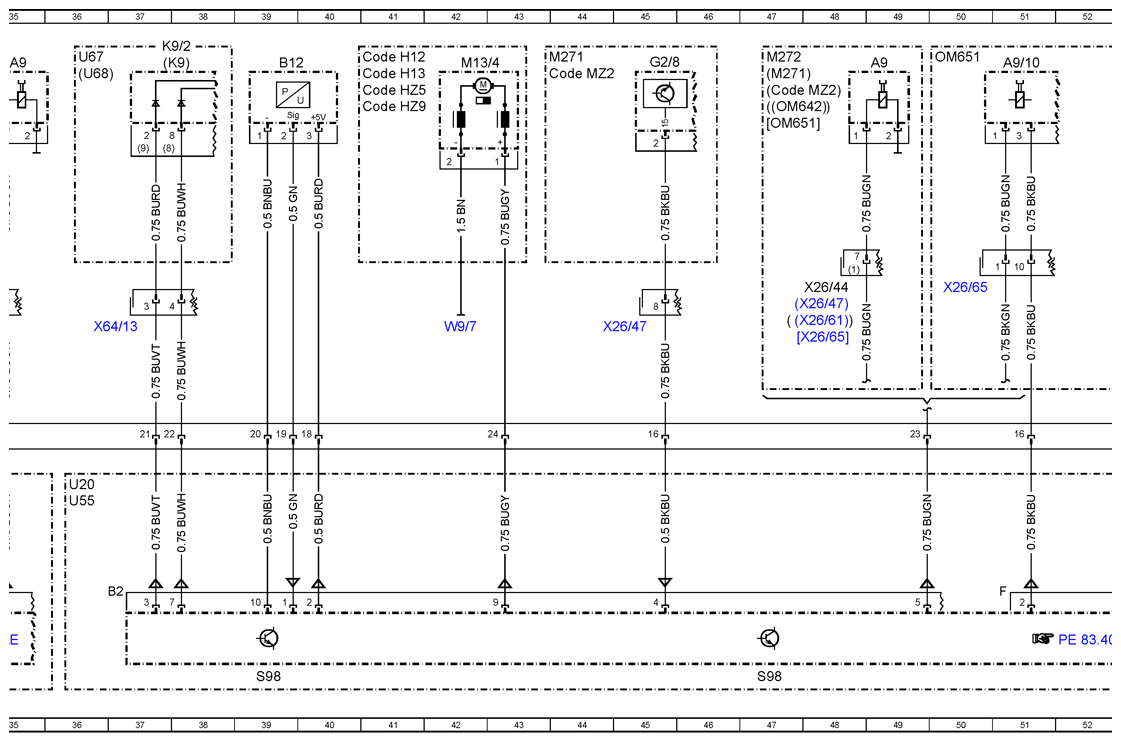

| K23/1 |
Blower stage 1 fan relay |
139L |
| K51/10 |
Rotating beacon relay |
124L |
| K9 |
Additional fan relay |
29A |
| K9 |
Additional fan relay |
37A |
| K9/2 |
Additional fan relay (mono) |
29A |
| K9/2 |
Additional fan relay (mono) |
37A |
| M13/4 |
Circulation pump |
33A |
| M13/4 |
Circulation pump |
42A |
| M13/4 |
Circulation pump |
115L |
| N10 |
SAM control unit |
75L |
| N15/5 |
Electronic selector lever module control unit |
56L |
| N30/4 |
ESP® control unit |
66A |
| N33/3 |
Auxiliary water heater control unit |
93A |
| N33/3 |
Auxiliary water heater control unit |
97A |
| N33/3x2 |
Electrical connector, auxiliary water heater (4-pin) |
93E |
| N33/3x2 |
Electrical connector, auxiliary water heater (4-pin) |
96E |

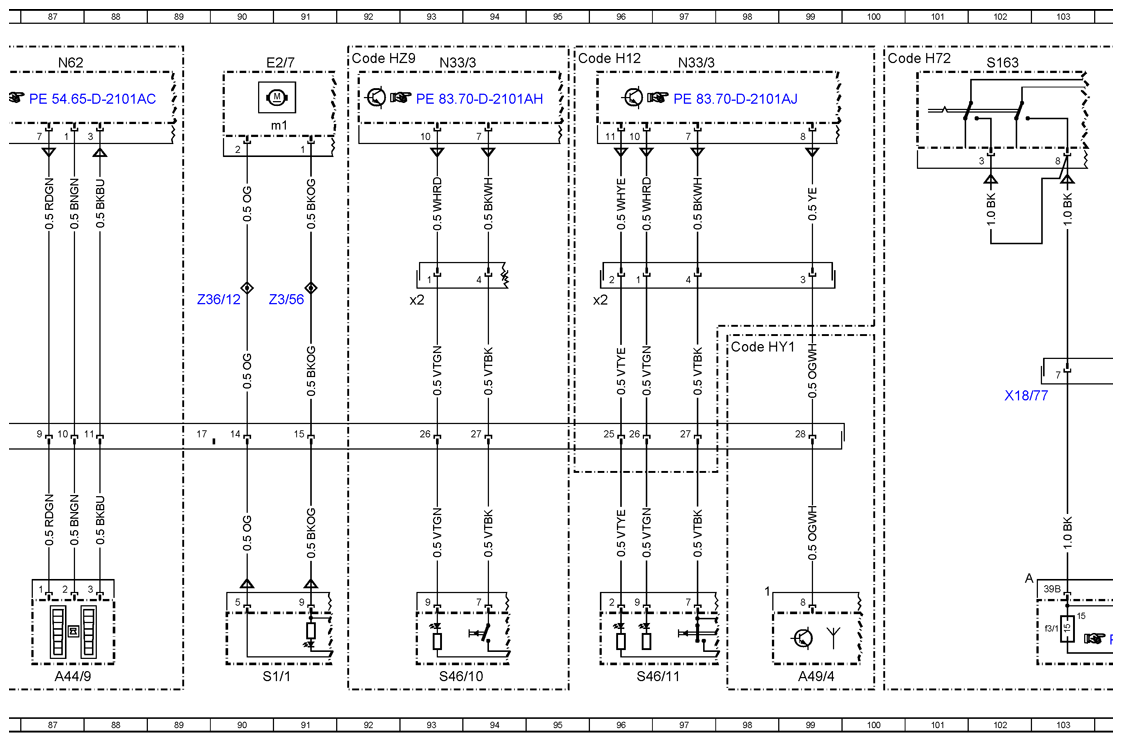

| N62 |
PARKTRONIC control unit |
87A |
| N72/1 |
Upper control panel (UCP [OBF]) control unit |
134A |
| N73 |
Electronic ignition lock (EZS) control unit |
79L |
| N87/8 |
Radio/radio with navigation |
4A |
| N97 |
Electronic level control [ENR] control unit |
83A |
| R13/1 |
Left front seat sitting surface heated cushion |
136L |
| R13/2 |
Left front backrest heated cushion |
135L |
| R13/3 |
Right front seat sitting surface heated cushion |
132L |
| R13/4 |
Right front backrest heated cushion |
133L |
| R14 |
Blower motor series resistor group |
142A |
| S1/1 |
Headlamp range controller |
90L |

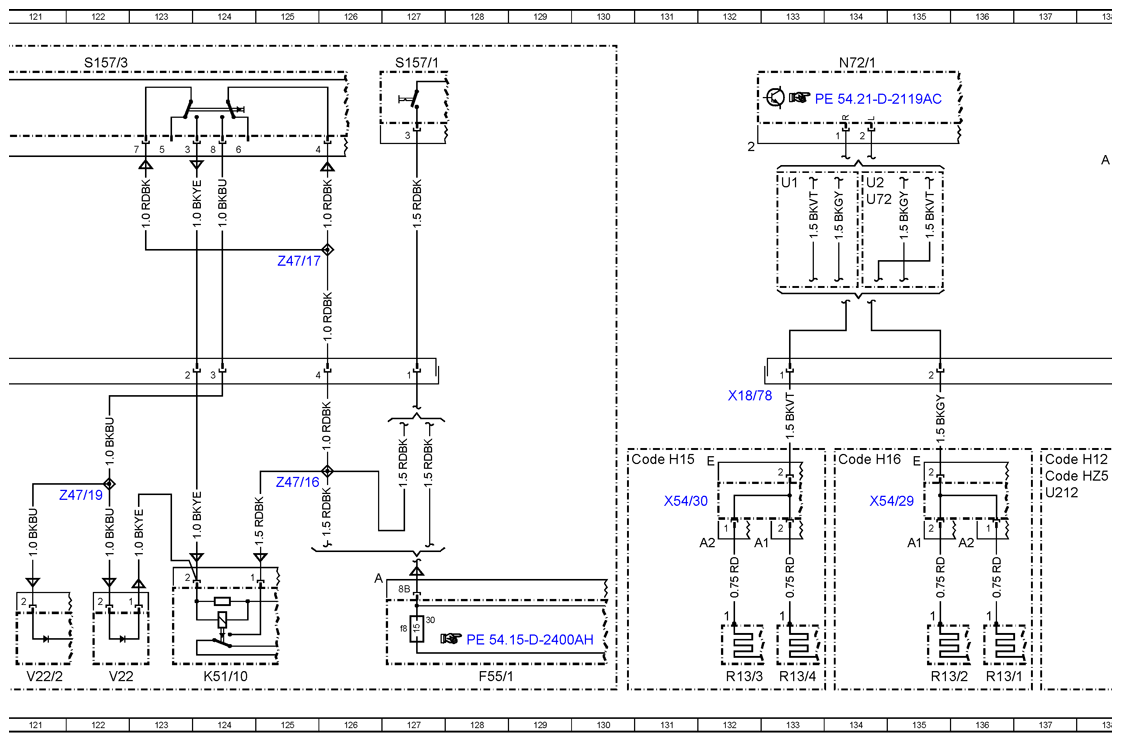

| S157/1 |
Rotating beacon switch |
127A |
| S157/3 |
Rotating beacon with tone sequence switch |
122A |
| S160 |
Body manufacturer electrical system switch |
108A |
| S163 |
Roof ventilator switch |
102A |
| S21/2 |
Passenger-side power window switch |
75A |
| S46/10 |
Heater booster button |
93L |
| S46/11 |
Heater booster/stationary heater button |
96L |
| S77/1 |
Lock ELC [ENR] button |
82L |
| S77/2 |
Raise/lower ELC [ENR] button |
84L |

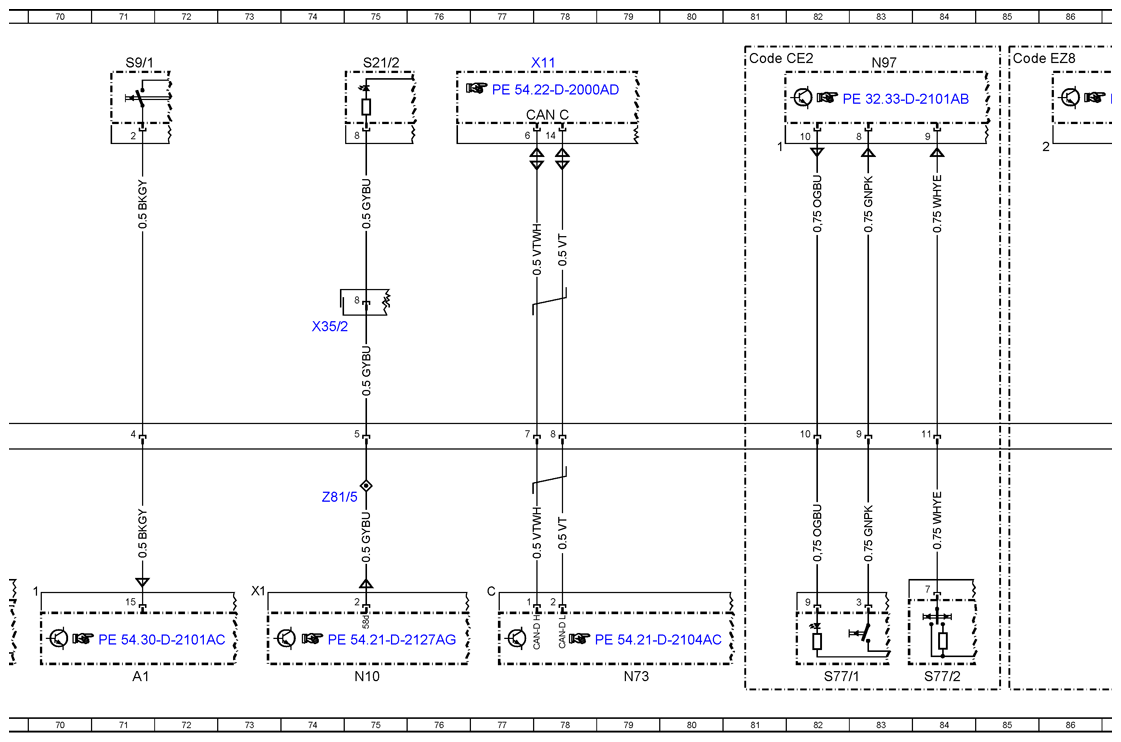

| S9/1 |
Stop lamp switch |
71A |
| S98 |
AC control and operating unit |
32L |
| S98 |
AC control and operating unit |
26L |
| S98 |
AC control and operating unit |
39L |
| S98 |
AC control and operating unit |
53L |
| S98 |
AC control and operating unit |
115A |
| S98 |
AC control and operating unit |
47L |
| U1 |
Valid for left-hand drive vehicles |
133C |
| U1 |
Valid for left-hand drive vehicles |
11E |
| U2 |
Valid for right-hand drive vehicles |
134C |
| U2 |
Valid for right-hand drive vehicles |
15E |
| U20 |
Valid for vehicles with air conditioning |
28H |
| U20 |
Valid for vehicles with air conditioning |
36H |
| U212 |
|
137H |
| U55 |
Valid for rear heater/air conditioning |
36H |
| U67 |
Va Ii d for AC mono fan |
28A |
| U67 |
Va Ii d for AC mono fan |
36A |
| U68 |
Val id for AC duo fan |
28A |
| U68 |
Val id for AC duo fan |
36A |
| U72 |
Valid for all except USA, Canada |
134C |
| V22 |
Tone sequence diode |
122L |
| V22/2 |
Horn/tone sequence decoupling diode |
121L |
| W9/7 |
Left front ground point 2 |
33E |
| W9/7 |
Left front ground point 2 |
42E |
| X11 |
Diagnostic connector (16-pin) |
78A |
| X145/6 |
Body manufacturer electrical connector |
107L |
| X18/49 |
MWH [HLS]/cockpit electrical connector 2 |
4G |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
20H |
| X18/77 |
MWH [HLS]/cockpit electrical connector 6 |
102F |
| X18/78 |
MWH [HLS]/cockpit electrical connector 7 |
132F |
| X26/44 |
Engine wiring harness electrical connector |
48E |
| X26/47 |
Engine wiring harness electrical connector |
26E |
| X26/47 |
Engine wiring harness electrical connector |
45E |
| X26/47 |
Engine wiring harness electrical connector |
48E |
| X26/61 |
Engine wiring harness electrical connector |
48E |
| X26/65 |
Engine wiring harness electrical connector 4 |
34E |
| X26/65 |
Engine wiring harness electrical connector 4 |
48F |
| X26/65 |
Engine wiring harness electrical connector 4 |
50E |

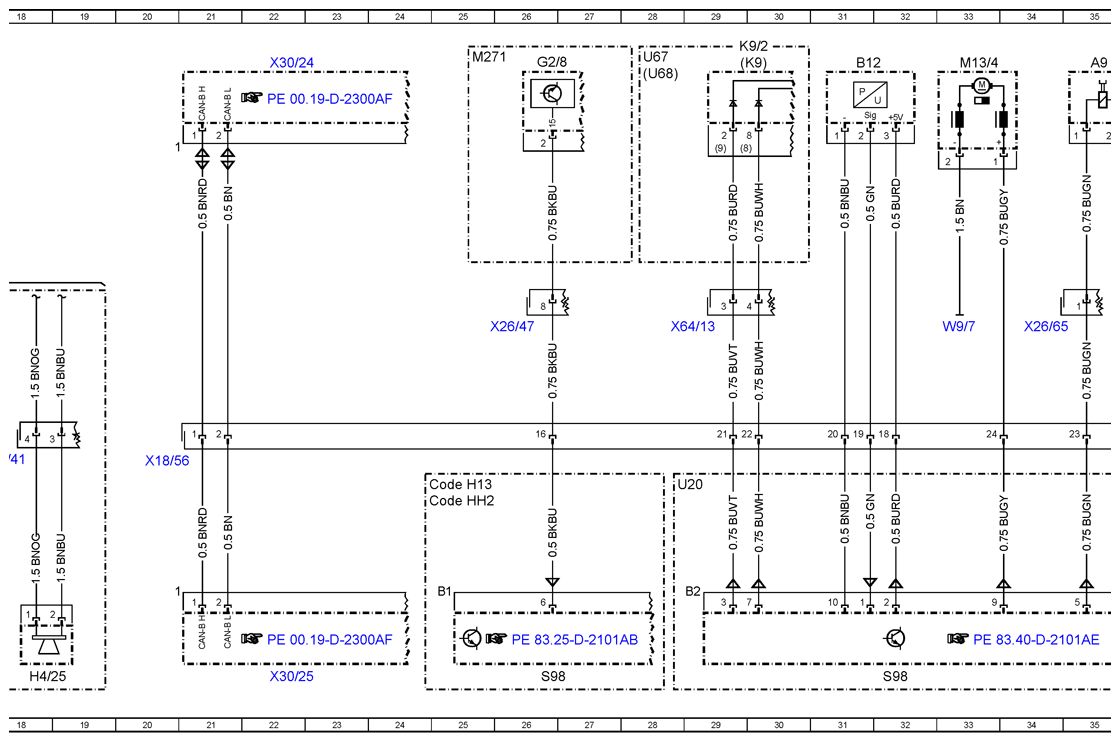

| X30/24 |
Interior CAN electrical connector |
22A |
| X30/25 |
Interior CAN electrical connector |
22L |
| X31/10 |
Blower setting electrical connector 1 |
142E |
| X35/2 |
Front passenger door electrical connector |
74E |
| X35/41 |
Driver door/MWH [HLS] electrical connector 2 |
11G |
| X35/41 |
Driver door/MWH [HLS] electrical connector 2 |
18G |
| X35/42 |
Front passenger door electrical connector |
13G |
| X35/42 |
Front passenger door electrical connector |
16G |
| X39/67 |
Radio preinstallation electrical connector |
8A |
| X54/29 |
Driver seat heater electrical connector |
134H |
| X54/30 |
Front passenger seat heater electrical connector |
131H |
| X64/13 |
Double auxiliary fan electrical connector |
29E |
| X64/13 |
Double auxiliary fan electrical connector |
37E |
| Z151 |
Blower motor connector sleeve |
142D |
| Z28/68 |
Left cockpit speaker connector sleeve |
4E |
| Z28/69 |
Left cockpit speaker connector sleeve |
5E |
| Z28/70 |
Right cockpit speaker connector sleeve |
6E |
| Z28/71 |
Right cockpit speaker connector sleeve |
8E |
| Z3/56 |
Headlamp range adjustment (HRA [LWR]) circuit 15 connector sleeve |
91E |
| Z3/63 |
Working speed control (ADR) circuit 15 connector sleeve |
60L |
| Z36/12 |
Headlamp range adjustment (HRA [LWR]) control bus connector sleeve |
90E |
| Z47/16 |
Rotating beacon with tone sequence circuit 30 connector sleeve |
125H |
| Z47/17 |
Rotating beacon with tone sequence circuit 30 connector sleeve |
125D |
| Z47/19 |
Rotating beacon with tone sequence connector sleeve |
122H |
| Z81/5 |
Circuit 58d connector sleeve |
74H |
