| A0 |
Color code key |
136L |
| A2/101 |
KEYLESS ENTRY & SLIDE right sliding door antenna |
71L |
| A2/101 |
KEYLESS ENTRY & SLIDE right sliding door antenna |
117L |
| A2/102 |
KEYLESS ENTRY & SLIDE left sliding door antenna |
58L |
| A2/102 |
KEYLESS ENTRY & SLIDE left sliding door antenna |
91L |
| A2/103 |
KEYLESS ENTRY & SLIDE driver door antenna |
19L |
| A2/104 |
KEYLESS ENTRY & SLIDE front passenger door antenna |
12L |
| Code EL9 |
|
93A |
| Code EL9 |
|
119A |
| Code EN6 |
Audio 10 |
34A |
| Code EN6 |
Audio 10 |
128A |
| Code EN6 |
Audio 10 |
102A |
| Code EN7 |
Audio 15 |
34A |
| Code EN7 |
Audio 15 |
128A |
| Code EN7 |
Audio 15 |
102A |
| Code ER0 |
Radio preinstallation |
38A |
| Code ER0 |
Radio preinstallation |
123A |
| Code ER0 |
Radio preinstallation |
97A |
| Code F68 |
Electrically adjustable and heated outside mirror |
22A |
| Code JA7 |
Blind spot assist |
25A |
| Code LB9 |
11luminated exits |
15A |
| Code LB9 |
11luminated exits |
20G |
| Code T16 |
Right sliding door |
108A |
| Code T16 |
Right sliding door |
115A |
| Code T16 |
Right sliding door |
119A |
| Code T19 |
Left sliding door |
83A |
| Code T19 |
Left sliding door |
90E |
| Code T19 |
Left sliding door |
93A |
| Code T50 |
Right sliding door electric closing assist |
70C |
| Code T51 |
Left sliding door electric closing assist |
57C |
| Code T55 |
Electric controls for right sliding door |
70C |
| Code T55 |
Electric controls for right sliding door |
78C |
| Code T56 |
Electric controls for left sliding door |
57C |
| Code T56 |
Electric controls for left sliding door |
65C |
| E17/10 |
Front passenger exit lamp |
17L |
| F55/1 |
Fuse block (1, 9-pin) |
32A |
| F55/1f1 |
Driver control unit fuse 1 |
30B |

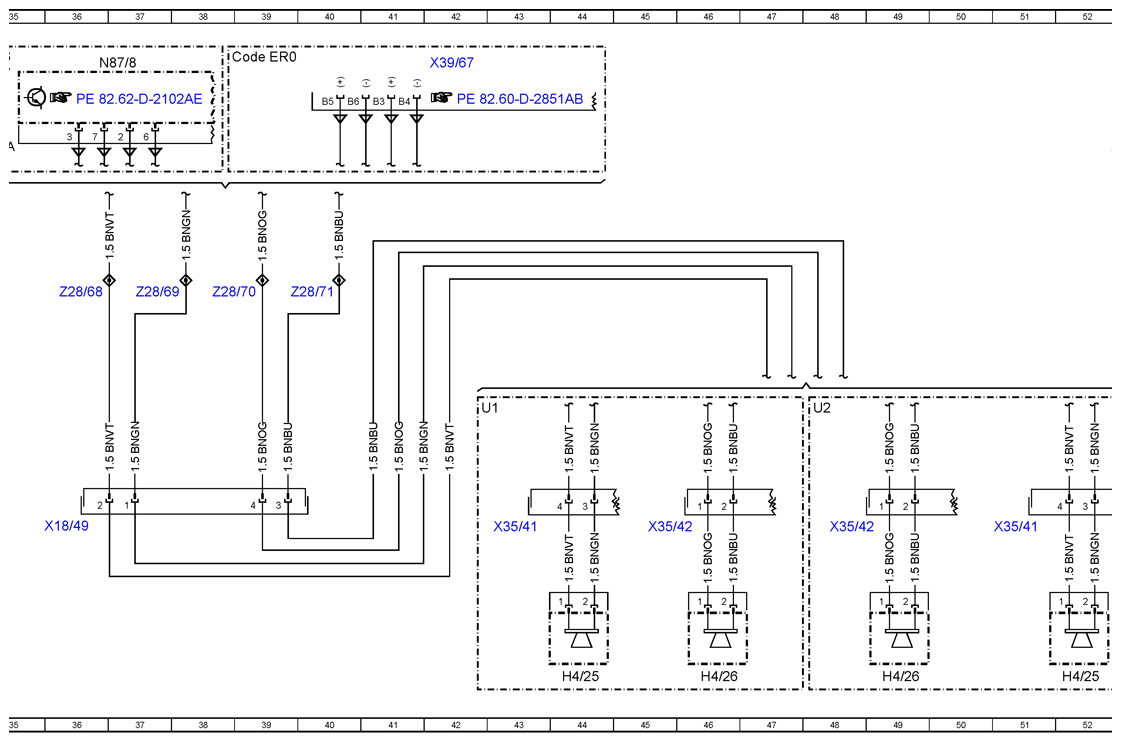

| H4/25 |
Left bass mi drange speaker |
44L |
| H4/25 |
Left bass mi drange speaker |
52L |
| H4/26 |
Right bass midrange speaker |
46L |
| H4/26 |
Right bass midrange speaker |
49L |

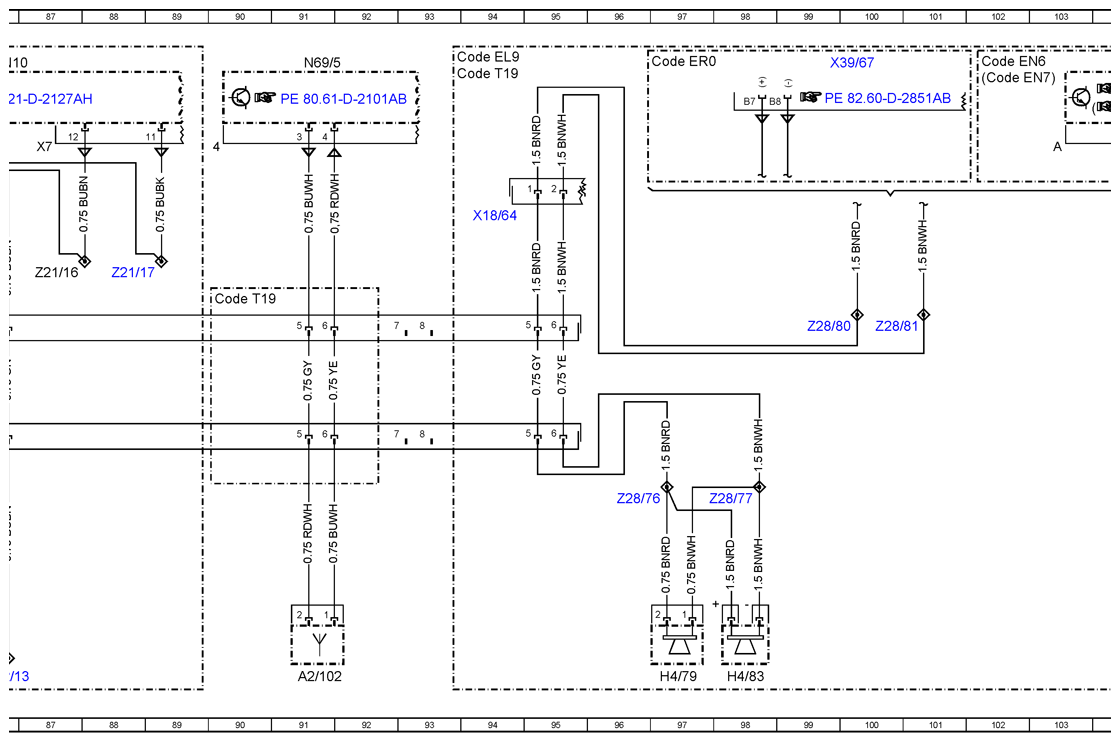

| H4/79 |
Left s sliding door tweeter |
97L |

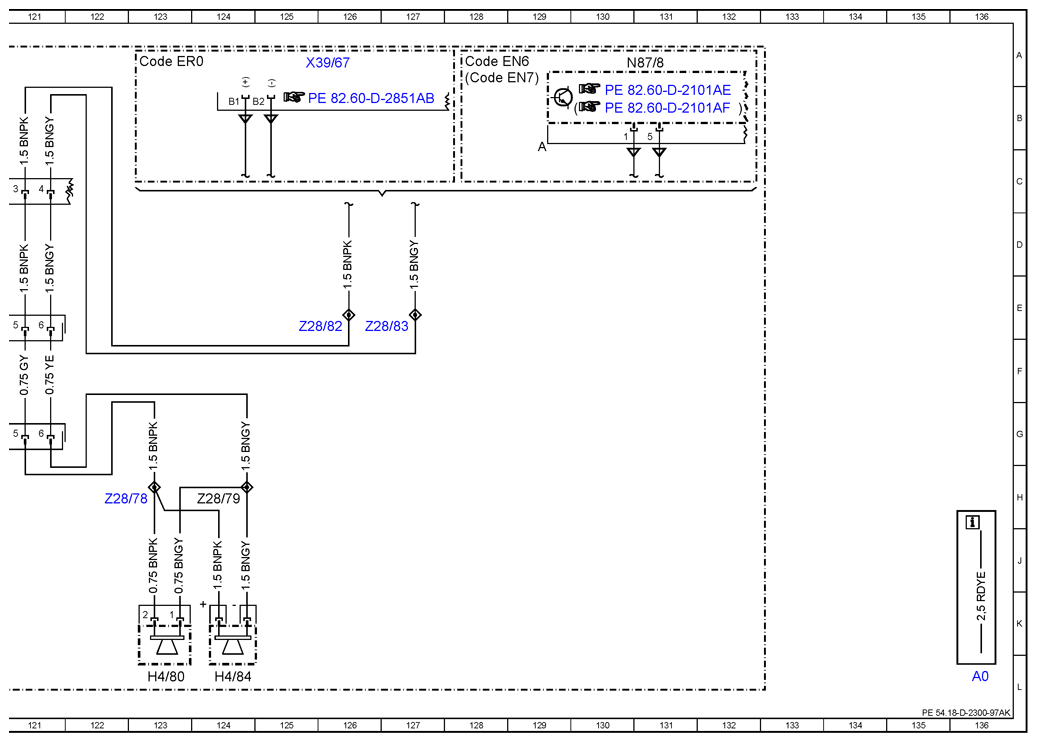

| H4/80 |
Right sliding door tweeter |
123L |
| H4/83 |
Left sliding door bass midrange speaker |
98L |
| H4/84 |
Right sliding door bass midrange speaker |
124L |
| M10/2 |
Front passenger door power window motor |
54L |

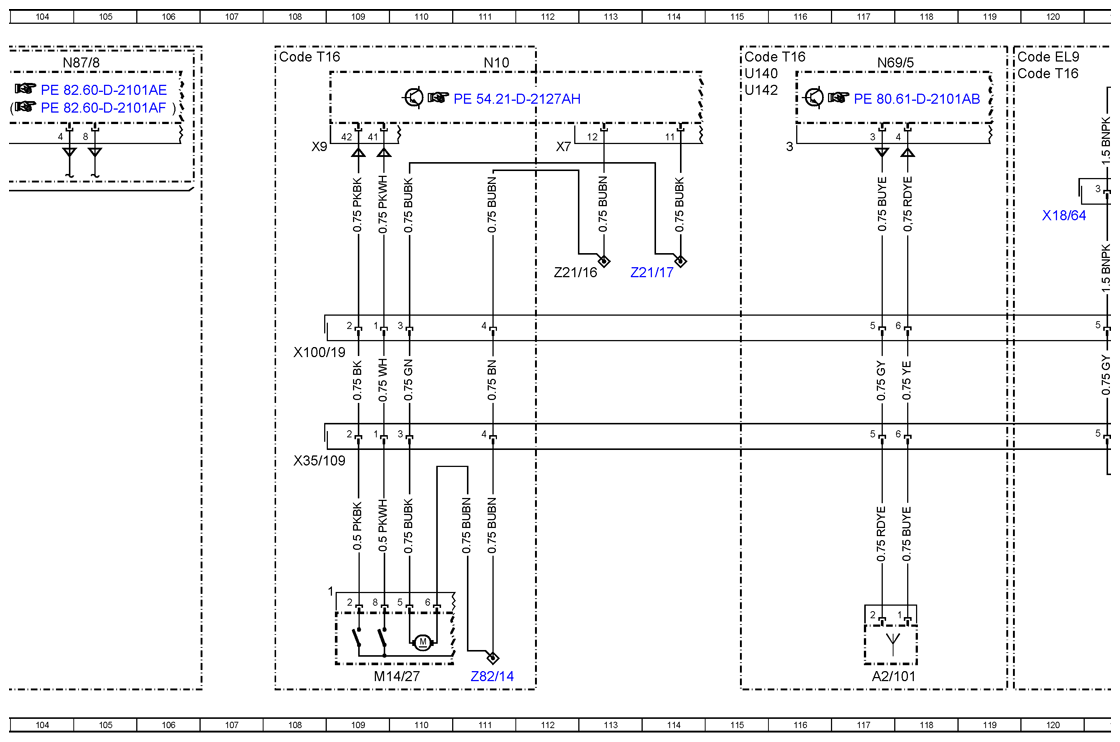

| M14/27 |
Right sliding door central locking motor actuator |
109L |
| M14/28 |
Left sliding door central locking motor actuator |
85L |

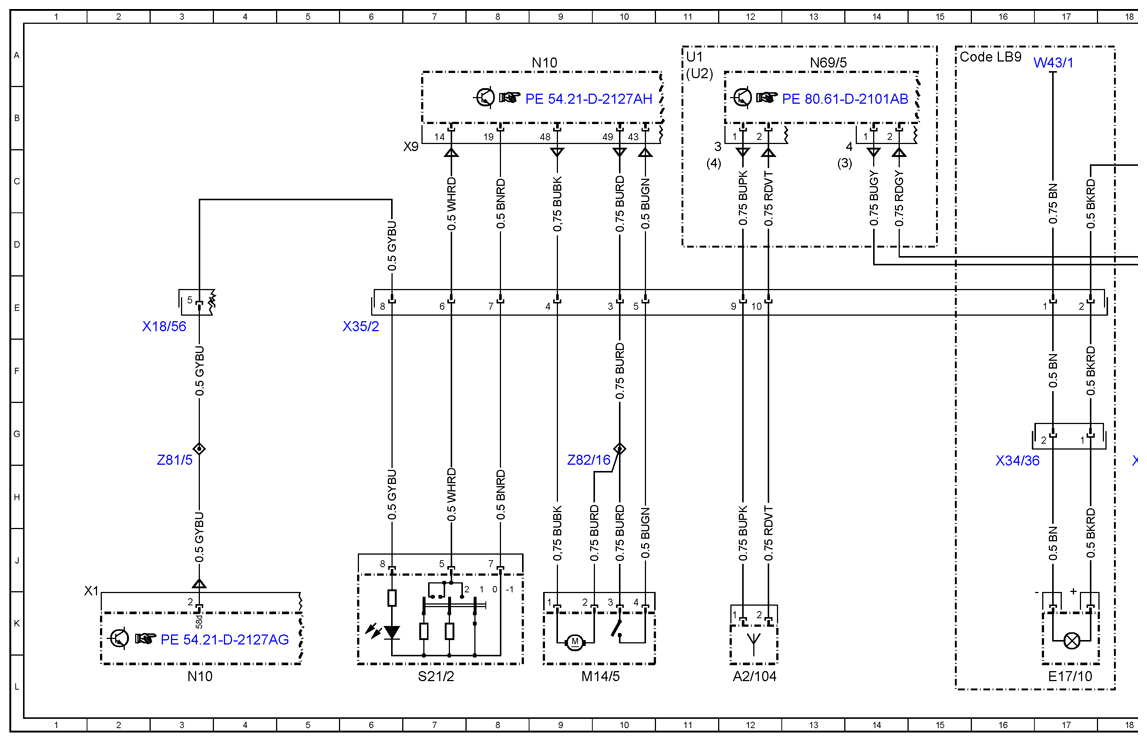

| IM 4/5 |
Front passenger door central locking actuator |
9L |
| M21/7 |
Passenger-side outside mirror |
24A |

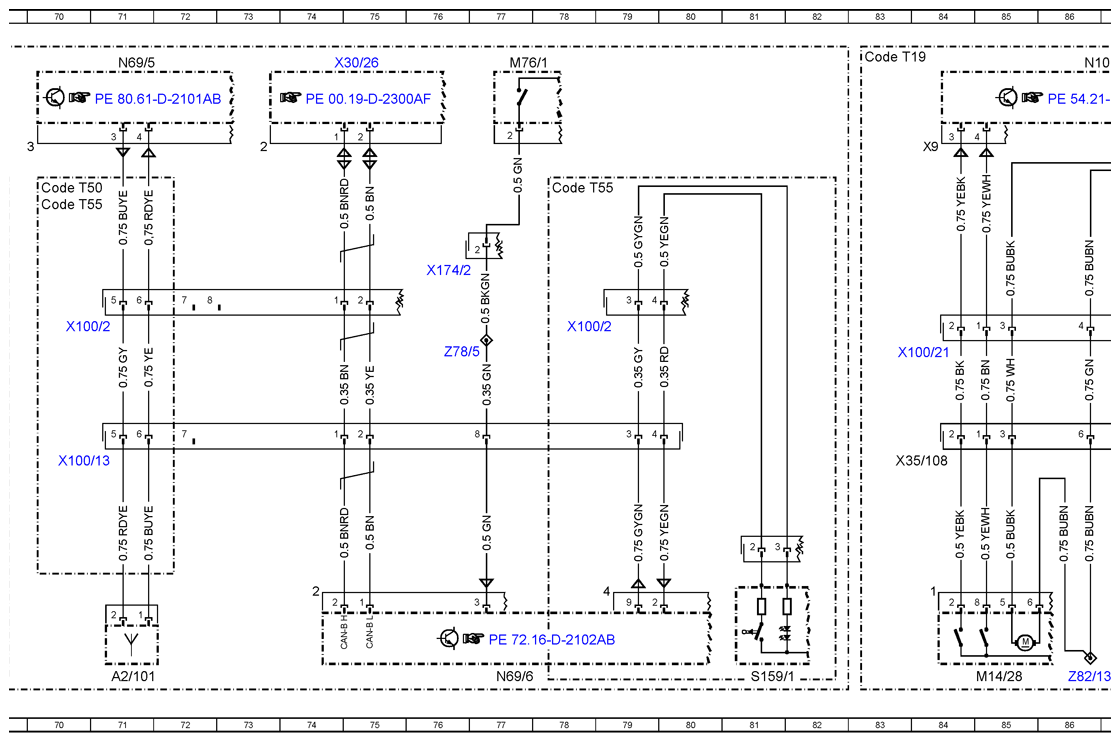

| M76/1 |
Right sliding door closing assist actuator |
77A |

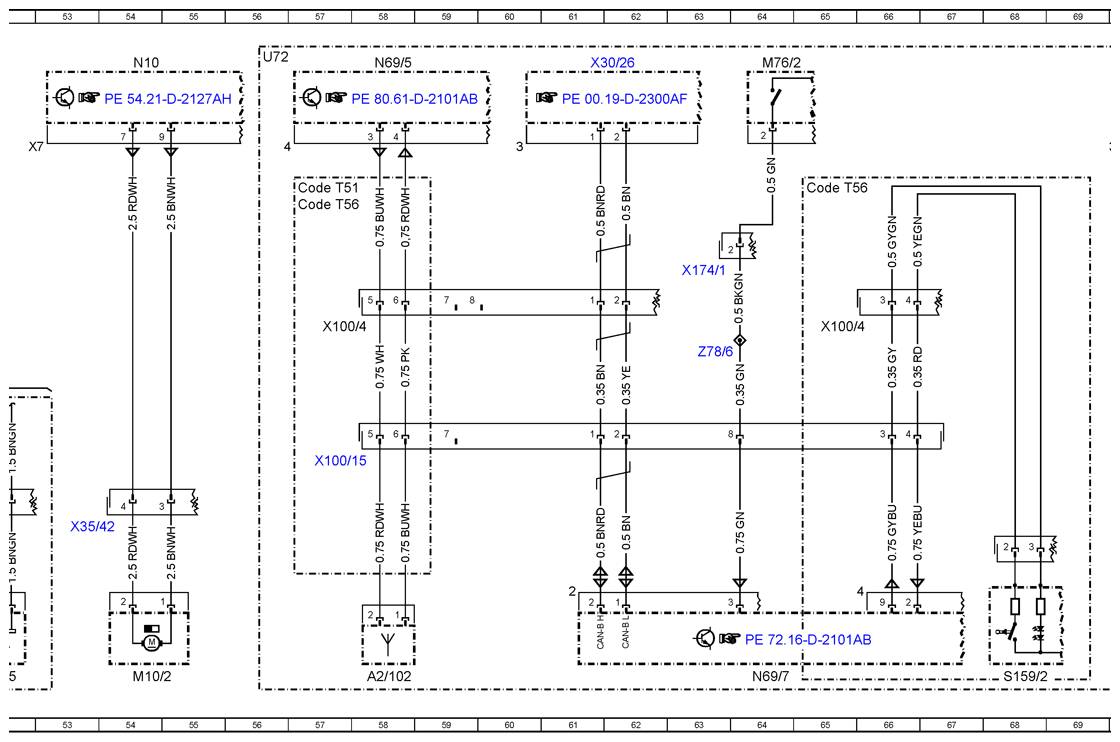

| M76/2 |
Left sliding door closing assist actuator |
64A |
| N10 |
SAM control unit |
9A |
| N10 |
SAM control unit |
54A |
| N10 |
SAM control unit |
86A |
| N10 |
SAM control unit |
111A |
| N10 |
SAM control unit |
3L |

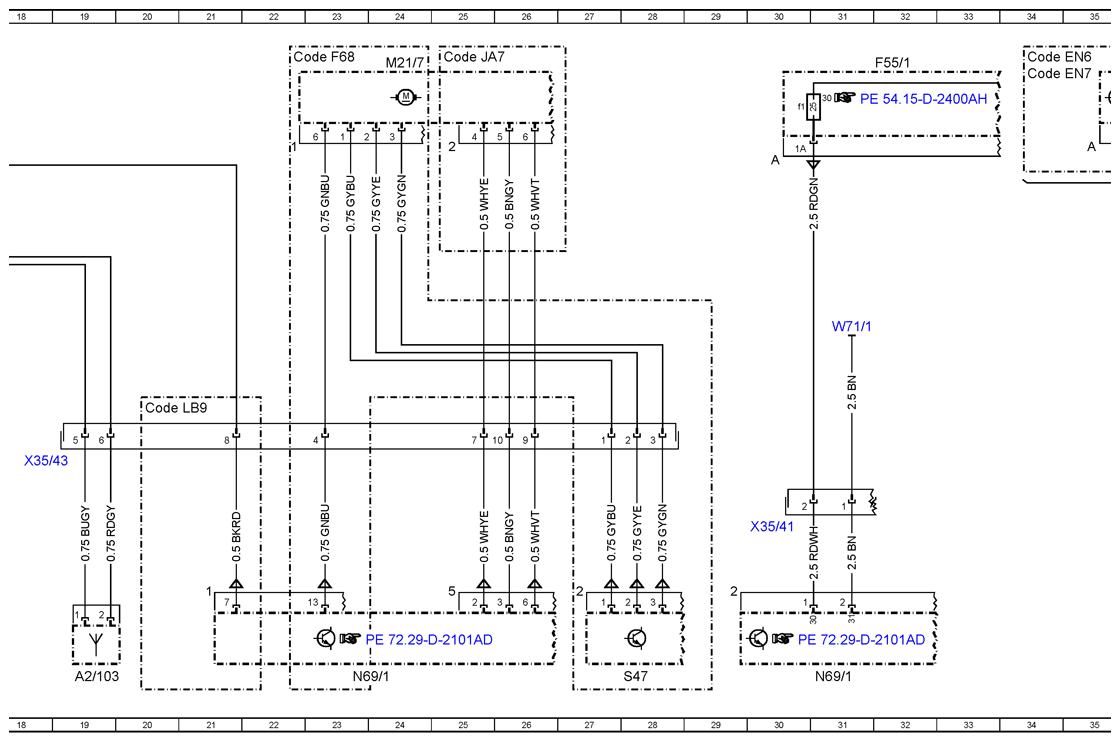

| N69/1 |
Driver door control unit |
23L |
| N69/1 |
Driver door control unit |
31L |
| N69/5 |
KEYLESS-ENTRY & SLIDE control unit |
13A |
| N69/5 |
KEYLESS-ENTRY & SLIDE control unit |
58A |
| N69/5 |
KEYLESS-ENTRY & SLIDE control unit |
71A |
| N69/5 |
KEYLESS-ENTRY & SLIDE control unit |
91A |
| N69/5 |
KEYLESS-ENTRY & SLIDE control unit |
117A |
| N69/6 |
Right sliding door control unit |
77L |
| N69/7 |
Left sliding door control unit |
64L |
| N87/8 |
Radio/radio with navigation |
37A |
| N87/8 |
Radio/radio with navigation |
104A |
| N87.-8 |
Radio/radio with navigation |
131A |
| S159/1 |
Right sliding door button |
81L |
| S159/2 |
Left s sliding door button |
68L |
| S21/2 |
Passenger-side power window switch |
7L |
| S47 |
Driver door control panel |
28L |
| U1 |
Valid for left-hand drive vehicles |
IIA |
| U1 |
Valid for left-hand drive vehicles |
42G |
| U140 |
Valid without code T50 (Right sliding door electric closing assist) |
115A |
| U142 |
Valid without code T55 (Electric operation for right sliding door) |
115B |
| U2 |
Valid for right-hand drive vehicles |
IIA |
| U2 |
Valid for right-hand drive vehicles |
48G |
| U72 |
Valid for all except USA, Canada |
56A |
| W43/1 |
Left firewall ground point |
17A |
| W71/1 |
Driver seat frame ground point 1 |
31E |
| X100/13 |
Right sliding door electrical connector |
70H |
| X100/15 |
Left sliding door electrical connector |
57H |
| X100/19 |
Right sliding door electrical connector (8-pin) |
108F |
| X100/2 |
MWH [HLS]/right sliding door electrical connector |
70E |
| X100/2 |
MWH [HLS]/right sliding door electrical connector |
78E |
| X100/21 |
Left sliding door electrical connector (8-pin) |
84F |
| X100/4 |
MWH [HLS]/Ieft sliding door electrical connector |
57E |
| X100/4 |
MWH [HLS]/Ieft sliding door electrical connector |
65E |
| X174/1 |
Left closing assist electrical connector |
63D |
| X174/2 |
Right closing assist electrical connector |
76D |
| X18/49 |
MWH [HLS]/cockpit electrical connector 2 |
36J |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
3E |
| X18/64 |
MWH [HLS]/cockpit electrical connector 5 |
94D |
| X18/64 |
MWH [HLS]/cockpit electrical connector 5 |
120D |
| X30/26 |
Interior CAN electrical connector |
61A |
| X30/26 |
Interior CAN electrical connector |
75A |
| X34/36 |
Front passenger exit lamp electrical connector |
16H |
| X35/108 |
Actuator/left sliding door central locking electrical connector (8-pin) |
84H |
| X35/109 |
Actuator/right sliding door central locking electrical connector (8-pin) |
108H |
| X35/2 |
Front passenger door electrical connector |
6E |
| X35/41 |
Driver door/MWH [HLS] electrical connector 2 |
30J |
| X35/41 |
Driver door/MWH [HLS] electrical connector 2 |
43J |
| X35/41 |
Driver door/MWH [HLS] electrical connector 2 |
51J |
| X35/42 |
Front passenger door electrical connector |
45J |
| X35/42 |
Front passenger door electrical connector |
53J |
| X35/42 |
Front passenger door electrical connector |
48J |
| X35/43 |
Driver door/MWH [HLS] electrical connector 3 |
18H |
| X39/67 |
Radio preinstallation electrical connector |
42A |
| X39/67 |
Radio preinstallation electrical connector |
100A |
| X39/67 |
Radio preinstallation electrical connector |
125A |
| Z21/16 |
Control circuit 1 central locking connector sleeve |
87E |
| Z21/16 |
Control circuit 1 central locking connector sleeve |
112E |
| Z21/17 |
Control circuit 1 central locking connector sleeve |
88E |
| Z21/17 |
Control circuit 1 central locking connector sleeve |
114E |
| Z28/68 |
Left cockpit speaker connector sleeve |
36E |
| Z28/69 |
Left cockpit speaker connector sleeve |
37E |
| Z28/70 |
Right cockpit speaker connector sleeve |
39E |
| Z28/71 |
Right cockpit speaker connector sleeve |
40E |
| Z28/76 |
Left sliding door speaker connector sleeve |
96H |
| Z28/77 |
Left sliding door speaker connector sleeve |
98H |
| Z28/78 |
Right sliding door speaker connector sleeve |
122H |
| Z28/79 |
Right sliding door speaker connector sleeve |
124H |
| Z28/80 |
Left sliding door/rear end speaker connector sleeve |
99E |
| Z28/81 |
Left sliding door/rear end speaker connector sleeve |
100E |
| Z28/82 |
Right sliding door/rear end speaker connector sleeve |
126E |
| Z28/83 |
Right sliding door/rear end speaker connector sleeve |
127E |
| Z78/5 |
Right closing assist connector sleeve |
76F |
| Z78/6 |
Left closing assist connector sleeve |
63F |
| Z81/5 |
Circuit 58d connector sleeve |
3G |
| Z82/13 |
Left sliding door central locking connector sleeve |
86L |
| Z82/14 |
Right sliding door central locking connector sleeve |
111L |
| Z82/16 |
Front passenger door central locking connector sleeve |
9G |
