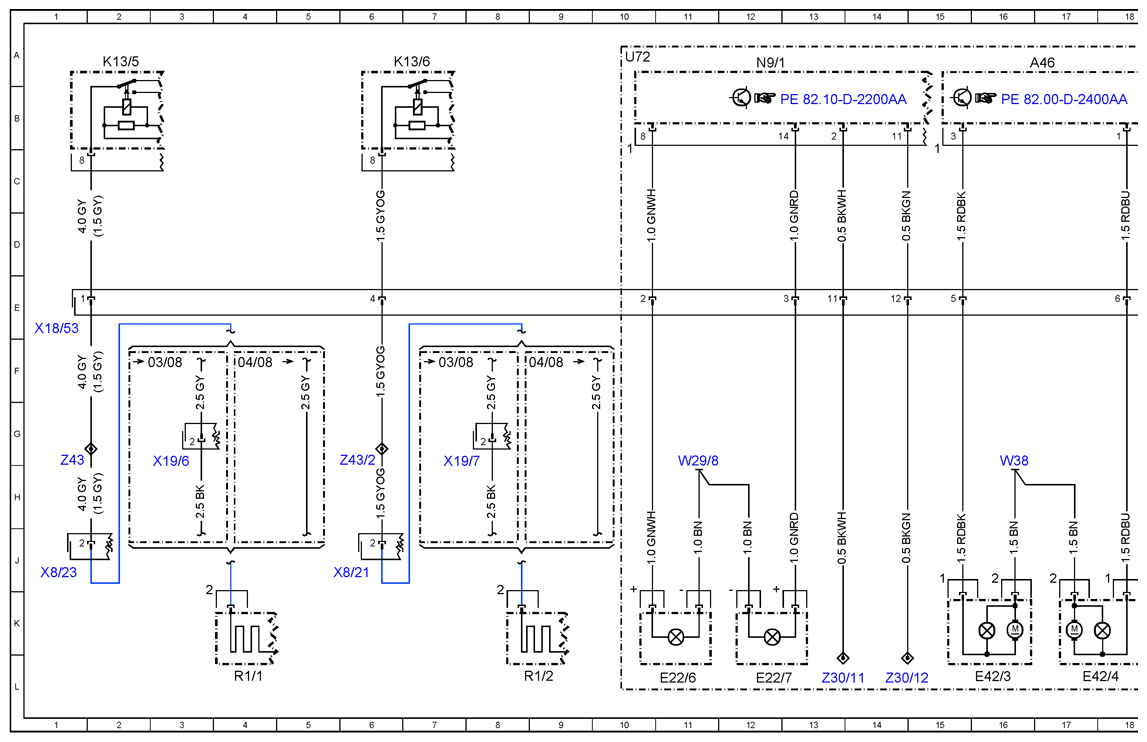

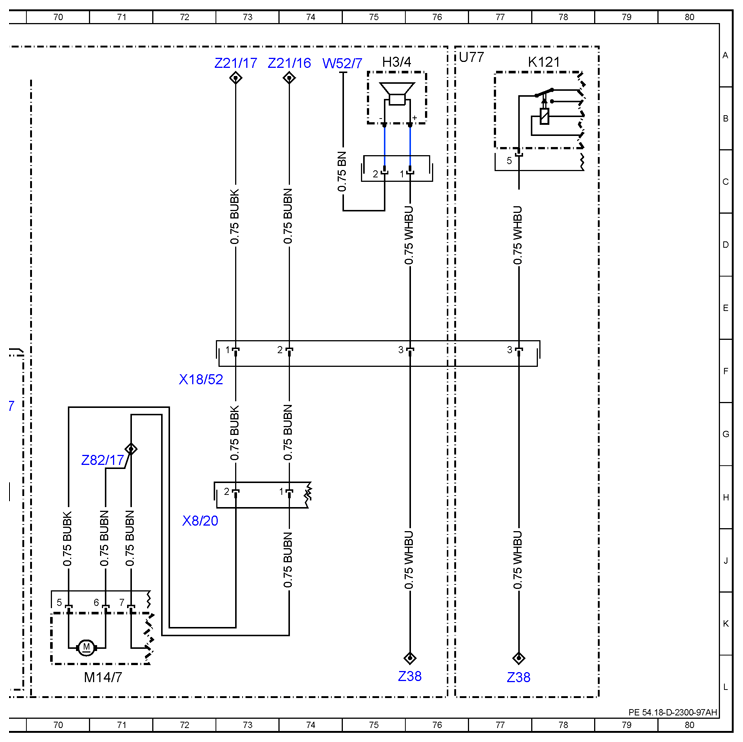

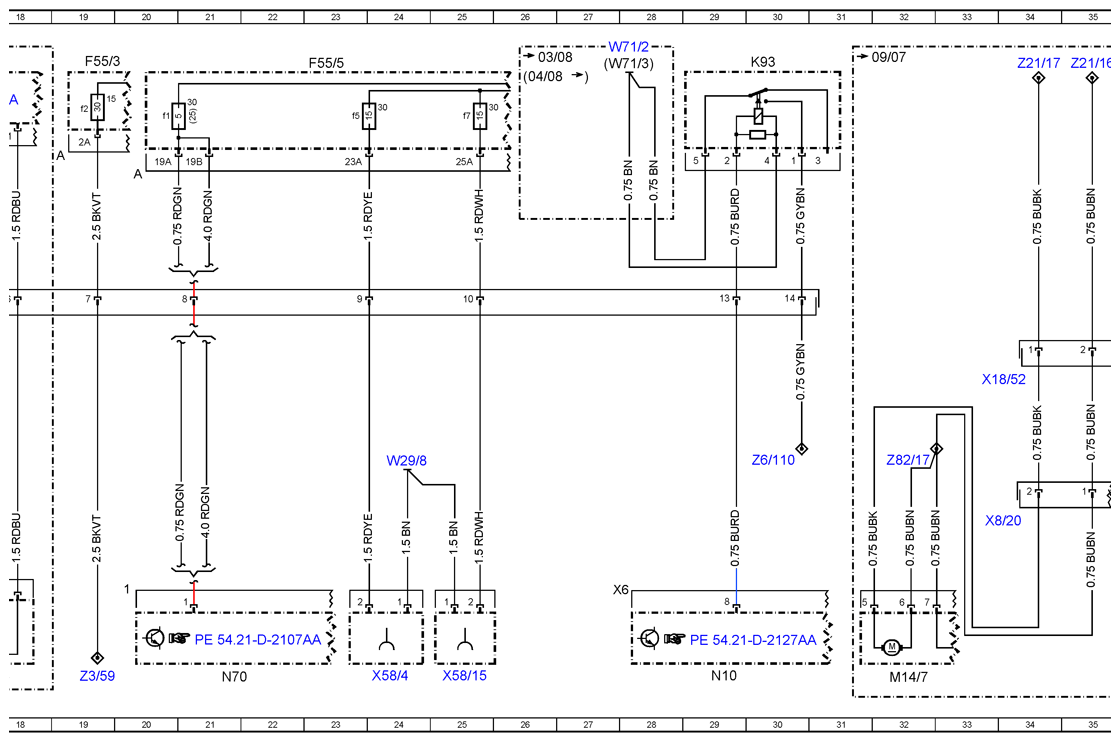

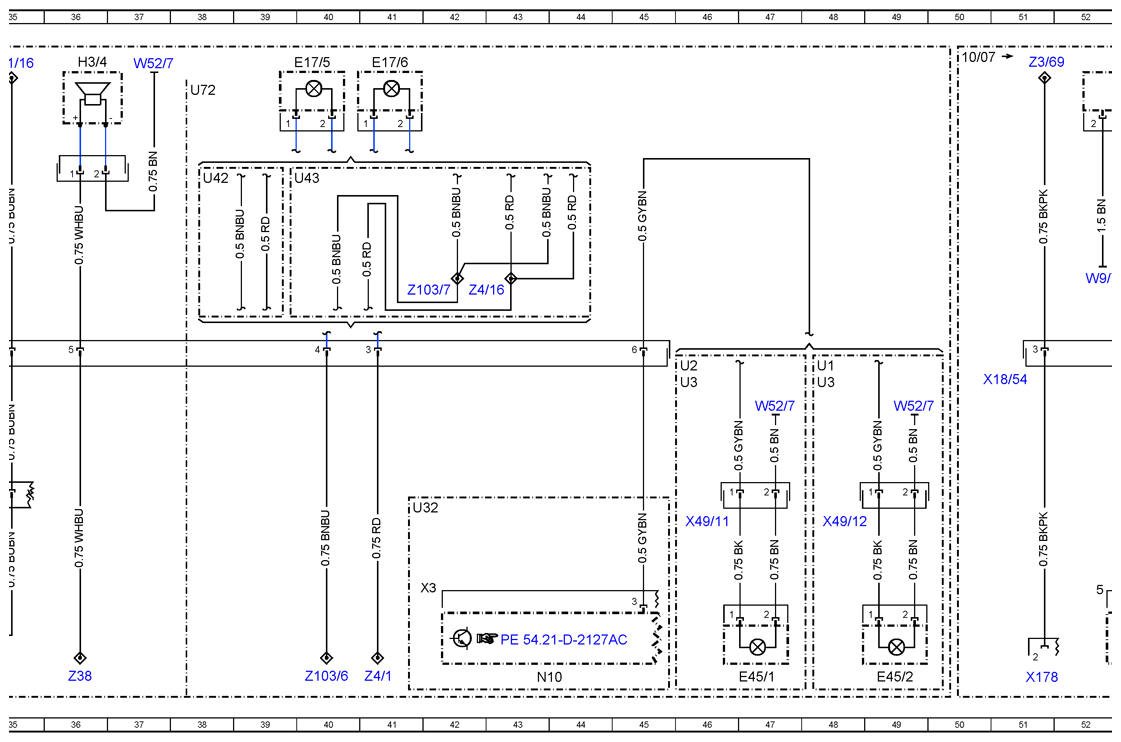

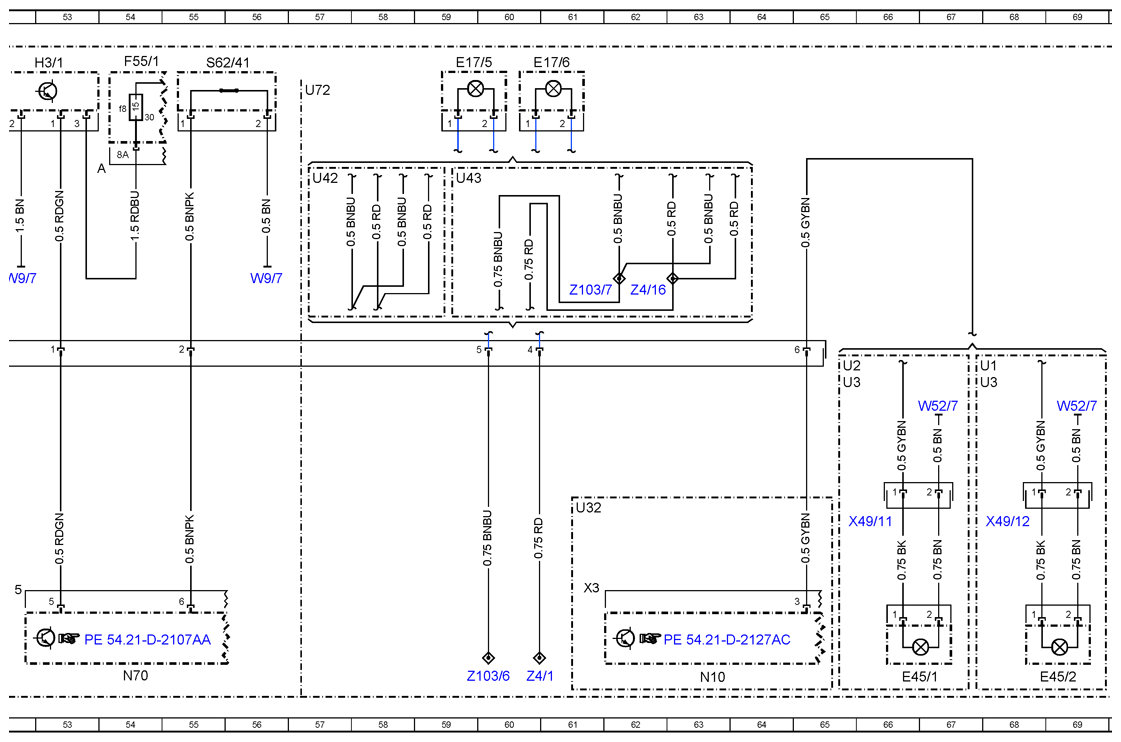

| A46 |
Tone signal generator |
17A |
| E17/5 |
Left rear entrance/exit lamp |
40A |
| E17/5 |
Left rear entrance/exit lamp |
59A |
| E17/6 |
Right rear entrance/exit lamp |
41A |
| E17/6 |
Right rear entrance/exit lamp |
61A |
| E22/6 |
Left roof additional turn signal lamp |
11L |
| E22/7 |
Right roof additional turn signal lamp |
12L |
| E42/3 |
Blue left front rotating beacon |
16L |
| E42/4 |
Blue right front rotating beacon |
17L |
| E45/1 |
Left rear fog lamp |
47L |
| E45/1 |
Left rear fog lamp |
66L |
| E45/2 |
Right rear fog lamp |
49L |
| E45/2 |
Right rear fog lamp |
69L |
| F55/1 |
Fuse block (9 fuses) |
54A |
| F55/1f8 |
Fuse 8 (15 A), EDW, rotating beacon/tone sequence |
54B |
| F55/3 |
Fuse block (9 fuses) |
19A |
| F55/3f2 |
Fuse 2 (30 A), rear wiper |
19B |
| F55/5 |
Fuse block (9 fuses) |
23A |
| F55/5f5 |
Fuse 19 (5/25 A), OCP [DBE]/tilting/sliding roof |
20B |
| F55/5f5 |
Fuse 23 (10/15 A) electrical components, other make body/left rear socket |
23B |
| F55/5f7 |
Fuse 25 (15 A), right rear socket |
25B |
| H3/1 |
Battery-operated horn |
53A |
| H3/4 |
Backup warning horn |
36A |
| H3/4 |
Backup warning horn |
75A |
| K121 |
Backup warning OFF relay |
78A |
| K13/5 |
Heated rear window relay 1 |
2A |
| K13/6 |
Heated rear window with EDW relay 2 |
7A |
| K93 |
Illumination relay |
30A |
| M14/7 |
Rear-end door ZV actuator |
32L |
| IM 4/7 |
Rear-end door ZV actuator |
71L |
| N10 |
SAM control unit |
29L |
| N10 |
SAM control unit |
43L |
| N10 |
SAM control unit |
63L |
| N70 |
DBE control unit |
21L |
| N70 |
DBE control unit |
54L |
| N9/1 |
Additional turn signal module |
12A |
| R1/1 |
Left heated rear window |
4L |
| R1/2 |
Right heated rear window |
9L |
| S62/41 |
Engine hood switch |
55A |
| U1 |
Valid for left-hand drive vehicles |
48F |
| U1 |
Valid for left-hand drive vehicles |
67F |
| U2 |
Valid for right-hand drive vehicles |
46F |
| U2 |
Valid for right-hand drive vehicles |
65F |
| U3 |
Valid for vehicles with all-wheel drive |
46F |
| U3 |
Valid for vehicles with all-wheel drive |
48F |
| U3 |
Valid for vehicles with all-wheel drive |
65F |
| U3 |
Valid for vehicles with all-wheel drive |
67F |
| U32 |
Val id for MPV version |
41H |
| U32 |
Val id for MPV version |
61H |
| U42 |
Valid for left or right sliding door |
38C |
| U42 |
Valid for left or right sliding door |
57C |
| U43 |
Valid for left and right sliding door |
39C |
| U43 |
Valid for left and right sliding door |
59C |
| U72 |
Valid for all except USA, Canada |
10A |
| U72 |
Valid for all except USA, Canada |
38B |
| U72 |
Valid for all except USA, Canada |
57B |
| U77 |
Valid for backup warning system |
76A |
| W29/8 |
Left D-pillar ground point |
11H |
| W29/8 |
Left D-pillar ground point |
24H |
| W38 |
Roof ground point |
16H |
| W52/7 |
Left rear crossmember ground point |
37A |
| W52/7 |
Left rear crossmember ground point |
47G |
| W52/7 |
Left rear crossmember ground point |
49G |
| W52/7 |
Left rear crossmember ground point |
69G |
| W52/7 |
Left rear crossmember ground point |
67G |
| W52/7 |
Left rear crossmember ground point |
74A |
| W71/2 |
Driver seat frame ground point 2 |
28A |
| W71/3 |
Driver seat frame ground point 3 |
27A |
| W9/7 |
Left front ground point 2 |
52E |
| W9/7 |
Left front ground point 2 |
56E |
| X178 |
Front roof connector |
51L |
| X18/52 |
HLS/roof connector |
34F |
| X18/52 |
HLS/roof connector |
72F |
| X18/53 |
HLS/roof connector 2 |
1E |
| X18/54 |
HLS/roof connector 3 |
51F |
| X19/6 |
Left heated rear window connector |
3H |
| X19/7 |
Right heated rear window connector |
7H |
| X49/11 |
Left rear fog lamp connector |
46H |
| X49/11 |
Left rear fog lamp connector |
66H |
| X49/12 |
Right rear fog lamp connector |
48H |
| X49/12 |
Right rear fog lamp connector |
68H |
| X58/15 |
Load compartment socket |
25L |
| X58/4 |
Load compartment socket |
24L |
| X8/20 |
Right roof/rear-end door connector |
34H |
| X8/20 |
Right roof/rear-end door connector |
72H |
| X8/21 |
Right roof/rear-end door connector |
6J |
| X8/23 |
Left roof/rear-end door connector |
1J |
| Z103/6 |
Interior light connector sleeve |
40L |
| Z103/6 |
Interior light connector sleeve |
60L |
| Z103/7 |
Interior light connector sleeve |
42E |
| Z103/7 |
Interior light connector sleeve |
61E |
| Z21/16 |
CL [ZV] control circuit 1 connector sleeve |
35A |
| Z21/16 |
CL [ZV] control circuit 1 connector sleeve |
73A |
| Z21/17 |
CL [ZV] control circuit 1 connector sleeve |
34A |
| Z21/17 |
CL [ZV] control circuit 1 connector sleeve |
73A |
| Z3/59 |
Rear-end door wiper motor tml. 15 connector sleeve |
19L |
| Z3/69 |
Tml. 15 connector sleeve |
51A |
| Z30/11 |
Left turn signal indicator connector sleeve |
13L |
| Z30/12 |
Right turn signal indicator connector sleeve |
14L |
| Z38 |
Backup lamp connector sleeve |
36L |
| Z38 |
Backup lamp connector sleeve |
75L |
| Z38 |
Backup lamp connector sleeve |
77L |
| Z4/1 |
Dome lamps tml. 30 connector sleeve |
41L |
| Z4/1 |
Dome lamps tml. 30 connector sleeve |
60L |
| Z4/16 |
Tml. 30 connector sleeve |
43E |
| Z4/16 |
Tml. 30 connector sleeve |
62E |
| Z43 |
Heated rear window connector sleeve |
1G |
| Z43/2 |
Heated rear window connector sleeve |
6G |
| Z6/110 |
Interior lights ground connector sleeve |
30G |
| Z82/17 |
Rear-end door ZV connector sleeve |
32G |
| Z82/17 |
Rear-end door ZV connector sleeve |
71G |
