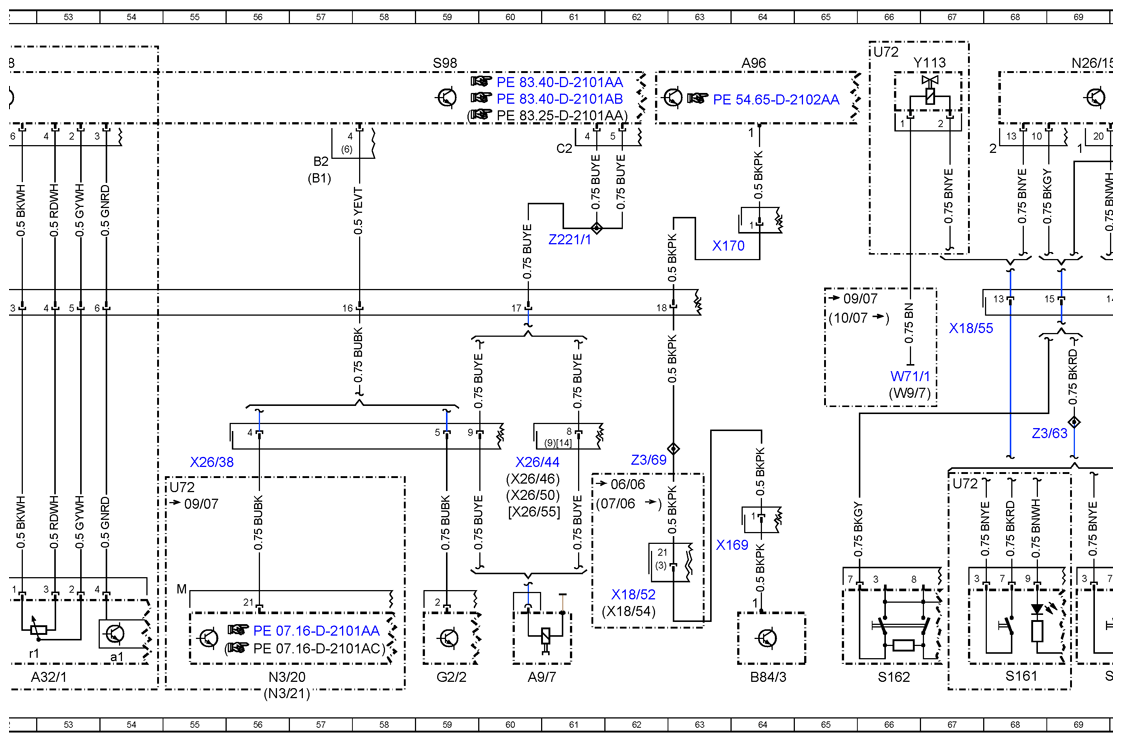

| A32/1 |
Rear heater/air conditioner air recirculation unit |
53L |
| A32/1a1 |
Rear heater blower regulator |
54L |
| A32'1m2 |
Rear heater water valve motor |
52L |
| A32/1r1 |
Rear heater water valve potentiometer |
52L |
| A32/2 |
Rear automatic air conditioning recirculation unit |
22L |
| A32/2y1 |
Refrigerant shutoff valve |
20L |
| A32/3 |
Rear heavy duty automatic air conditioning recirculation unit |
22L |
| A32/3a1 |
Blower regulator |
24L |
| A32/3b1 |
Evaporator temperature sensor |
21L |
| A32/3m2 |
Blending air flap actuator motor |
21L |
| A32/3r2 |
Blend air flap potentiometer |
23L |
| A9/7 |
2nd refrigerant compressor |
60L |
| A96 |
Backup camera monitor |
39L |
| A96 |
Backup camera monitor |
64A |
| B12/6 |
Roof refrigerant pressure sensor |
18L |
| B27/1 |
Motion sensor |
27L |
| B84/3 |
Backup camera |
35L |
| B84/3 |
Backup camera |
64L |
| E15/3 |
Rear dome lamp |
28L |
| E15/32 |
Rear load compartment lamp |
30L |
| El 6/11 |
Retarder indicator lamp |
77L |
| E42/1 |
Left front rotating beacon |
14L |
| E42/2 |
Right rear rotating beacon |
11L |
| F55/2 |
Fuse block (9 fuses) |
26A |
| F55/2f4 |
Fuse 13 (7.5 A), warm air heater timer/FleetBoard |
25B |
| F55/2f8 |
Fuse 17 (7.5/10 A), motion detector/comfort illumination |
26B |
| F55/3 |
Fuse block (9 fuses) |
46L |
| F55/3f8 |
Fuse 8 (10 A), three-way dump truck/cargo lift gate tml. 15 |
46K |
| G2/2 |
Alternator |
59L |
| H4/3 |
Left rear side wall speaker |
4L |
| H4/4 |
Right rear side wall speaker |
8L |
| H4/44 |
Right rear side wall tweeter |
7L |
| H4/45 |
Left rear side wall tweeter |
3L |
| H4/81 |
Left side wa11 tweeter |
IL |
| H4/82 |
Right side wall tweeter |
5L |
| H4/85 |
Left side wall bass midrange speaker |
2L |
| H4/86 |
Right side wall bass midrange speaker |
6L |
| K9/5 |
Roof additional fan relay |
17L |
| K95 |
Cargo lift gate relay |
48L |
| N10 |
SAM control unit |
29A |

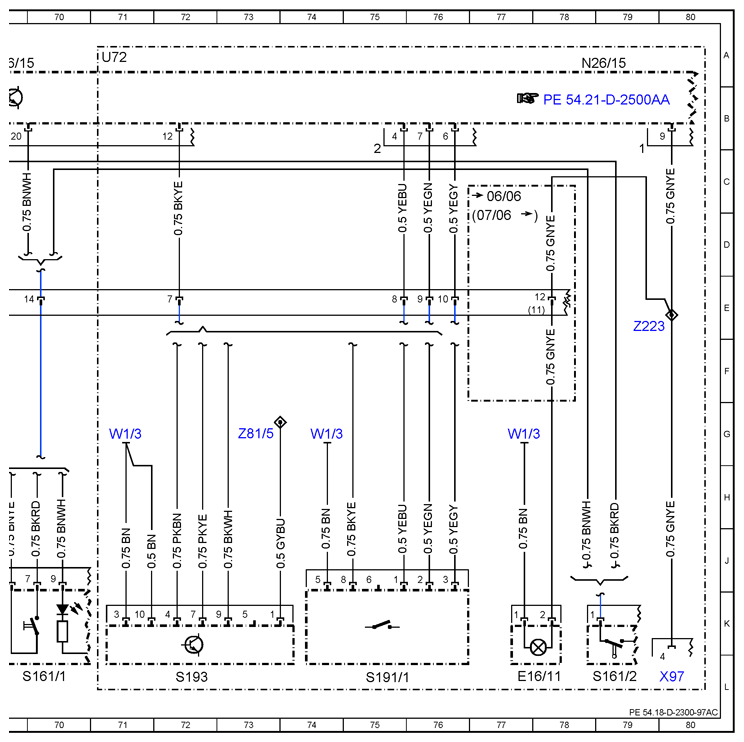

| N26/15 |
PSM control unit |
78A |
| N26/15 |
PSM control unit |
69A |
| N3/20 |
CDI control unit |
56L |
| N3/21 |
CDI control unit |
56L |
| N34 |
Heater timer |
26L |

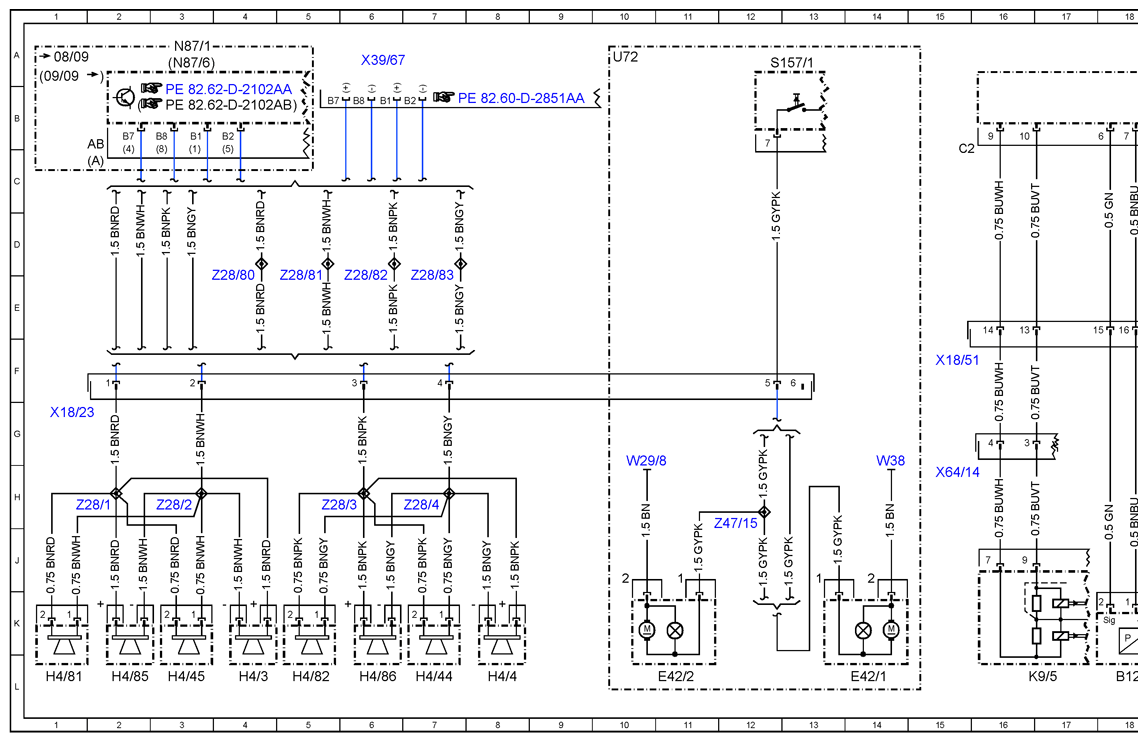

| N87/1 |
Radio/radio with navigation |
3A |
| N87/1 |
Radio/radio with navigation |
34A |
| N87/6 |
Radio/radio with navigation NG |
3A |
| S157/1 |
Rotating beacon switch |
12A |
| S161 |
PTO switch |
68L |
| S161/1 |
ADR ON switch |
70L |
| S161/2 |
Power take-off limit switch |
79L |
| S162 |
ADR button |
66L |

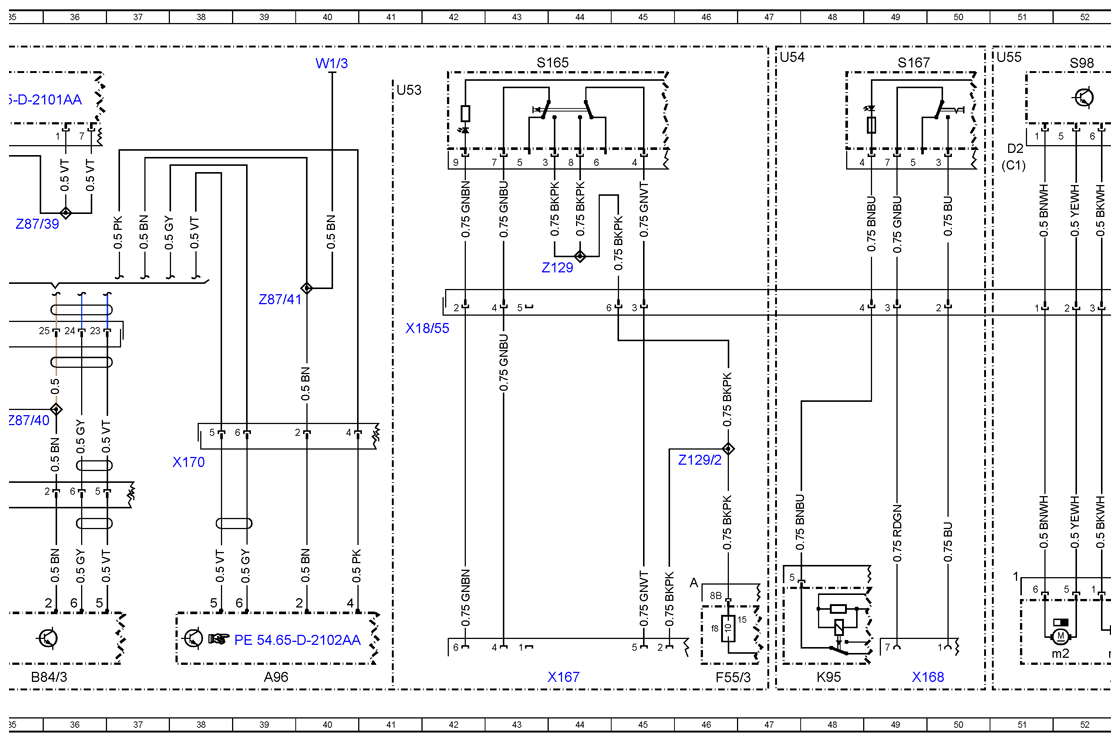

| S165 |
Three-way dump truck switch |
43A |
| S167 |
Cargo lift gate switch |
49A |
| S191/1 |
Selector lever retarder switch |
75L |
| S193 |
Gas/gasoline selection switch |
72L |

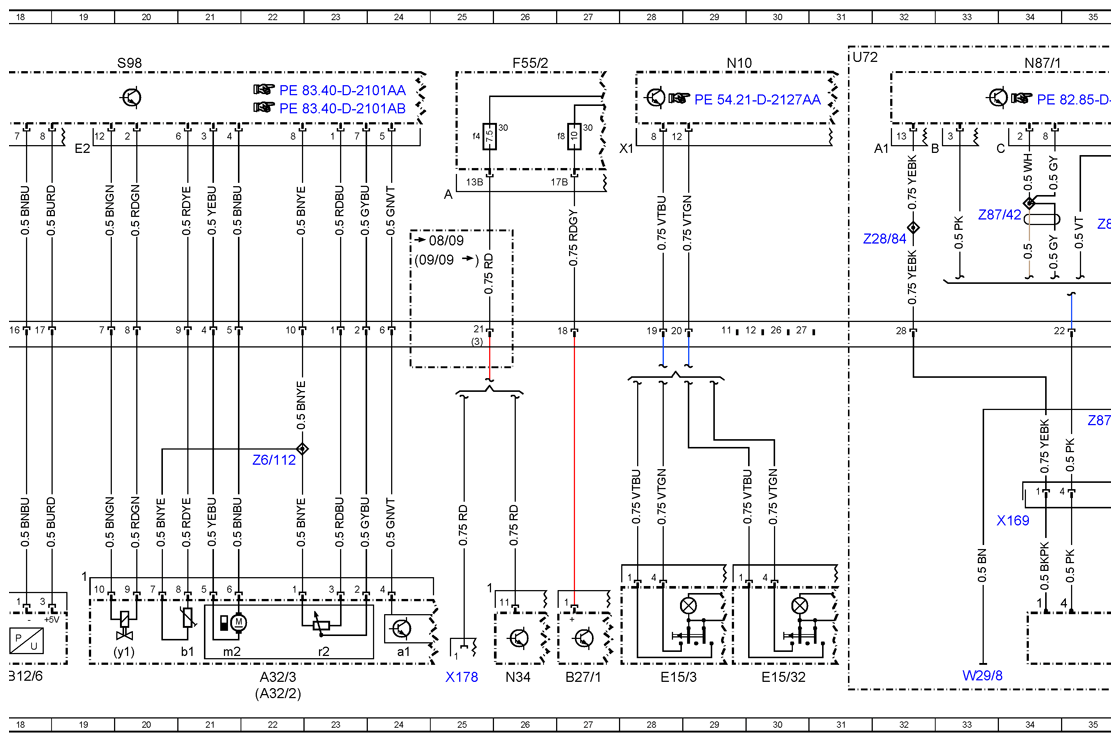

| S98 |
AAC [KLA] control and operating unit |
20A |
| S98 |
AAC [KLA] control and operating unit |
52A |
| S98 |
AAC [KLA] control and operating unit |
59A |
| U53 |
Valid for vehicles with three-sided dumper |
41B |
| U54 |
Valid for cargo lift gate retrofit preinstallation |
47A |
| U55 |
Valid for rear heater/air conditioning |
51A |
| U72 |
Valid for all except USA, Canada |
10A |
| U72 |
Valid for all except USA, Canada |
31A |
| U72 |
Valid for all except USA, Canada |
55H |
| U72 |
Valid for all except USA, Canada |
67H |
| U72 |
Valid for all except USA, Canada |
66A |
| U72 |
Valid for all except USA, Canada |
71A |
| W1/3 |
CLS cockpit ground point 1 |
40A |
| W1/3 |
CLS cockpit ground point 1 |
71G |
| W1/3 |
CLS cockpit ground point 1 |
77G |
| W1/3 |
CLS cockpit ground point 1 |
74G |
| W29/8 |
Left D-pillar ground point |
10H |
| W29/8 |
Left D-pillar ground point |
33L |
| W38 |
Roof ground point |
14H |
| W71/1 |
Driver seat frame ground point 1 |
66F |
| W9/7 |
Left front ground point 2 |
66F |
| X167 |
Three-way dump truck connector |
44L |
| X168 |
Cargo lift gate connector |
50L |
| X169 |
Backup camera connector |
34H |
| X169 |
Backup camera connector |
64J |
| X170 |
Backup camera monitor connector |
38H |
| X170 |
Backup camera monitor connector |
63D |
| X178 |
Front roof connector |
25L |
| X18/23 |
COC/roof connector |
1G |
| X18/51 |
COC/roof connector 2 |
15F |
| X18/52 |
HLS/roof connector |
62K |
| X18/54 |
HLS/roof connector 3 |
62K |
| X18/55 |
HLS/COC connector 3 |
42E |
| X18/55 |
HLS/COC connector 3 |
67E |
| X26/38 |
Engine wiring harness connector |
55H |
| X26/44 |
Engine wiring harness connector |
60H |
| X26/46 |
Engine wiring harness connector 1 |
60H |
| X26/50 |
Engine wiring harness connector 1 |
60H |
| X26/55 |
Engine wiring harness connector 1 |
60H |
| X39/67 |
Radio preinstallation connector |
6A |
| X64/14 |
Roof double auxiliary fan connector |
15H |
| X97 |
Retarder connector |
80L |
| Y113 |
PTO solenoid valve |
67A |
| Z129 |
Three-way dump truck connector sleeve |
44D |
| Z129/2 |
Three-way dump truck connector sleeve |
46G |
| Z221/1 |
2nd refrigerant compressor connector sleeve |
61D |
| Z223 |
Retarder connector sleeve |
79E |
| Z28/1 |
Left rear speaker connector sleeve |
2H |
| Z28/2 |
Left rear speaker connector sleeve |
3H |
| Z28/3 |
Right rear speaker connector sleeve |
6H |
| Z28/4 |
Right rear speaker connector sleeve |
7H |
| Z28/80 |
Left sliding door/rear end speaker connector sleeve |
4E |
| Z28/81 |
Left sliding door/rear end speaker connector sleeve |
5E |
| Z28/82 |
Right sliding door/rear end speaker connector sleeve |
6E |
| Z28/83 |
Right sliding door/rear end speaker connector sleeve |
7E |
| Z28/84 |
Radio additional fan connector sleeve |
32D |
| Z3/63 |
ADR tml. 15 connector sleeve |
69G |
| Z3/69 |
Tml. 15 connector sleeve |
62G |
| Z47/15 |
Rotating beacon connector sleeve |
12H |
| Z6/112 |
Temperature sensor ground connector sleeve |
22G |
| Z81/5 |
Tml. 58d connector sleeve |
73G |
| Z87/39 |
Backup camera microphone connector sleeve |
35D |
| Z87/40 |
Backup camera microphone connector sleeve |
35G |
| Z87/41 |
Backup monitor microphone connector sleeve |
39E |
| Z87/42 |
Backup camera microphone connector sleeve |
34D |
