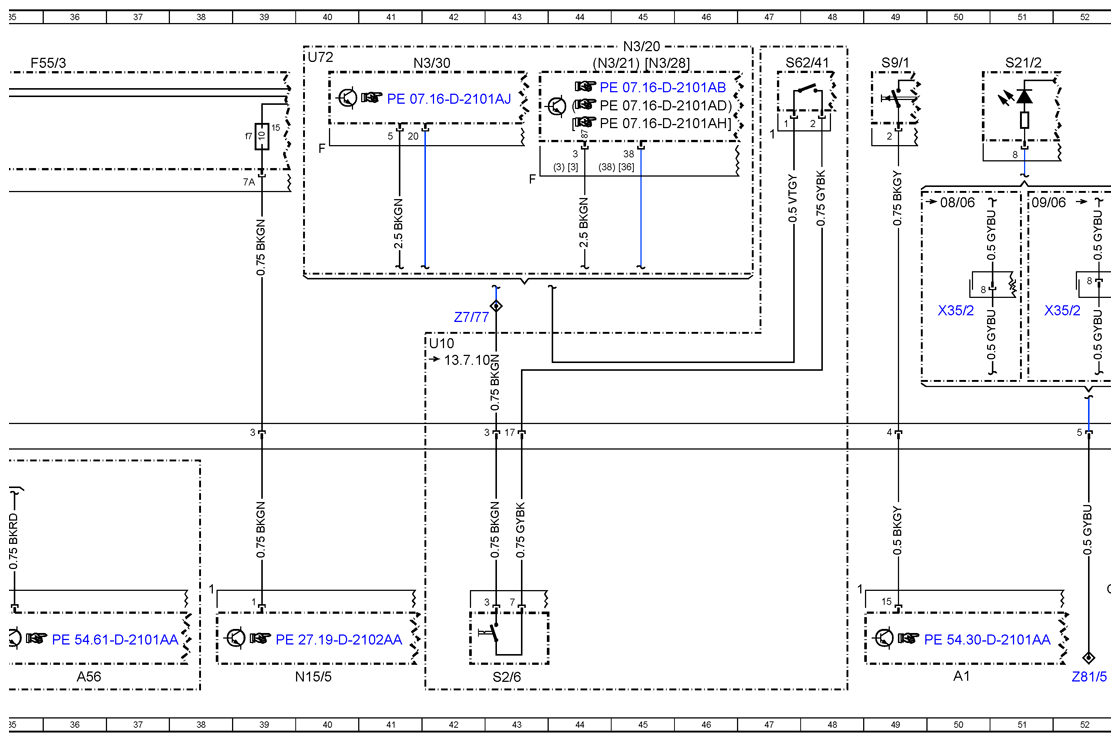

| A1 |
Instrument cluster |
50L |

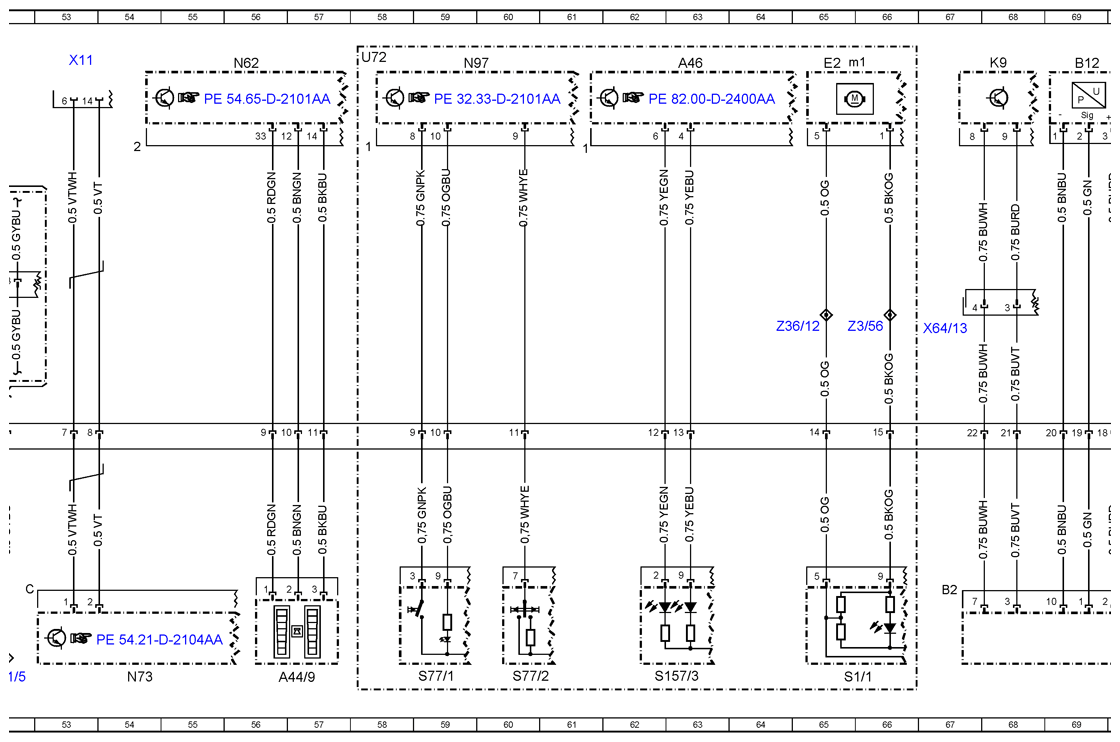

| A44/9 |
Center front PTS warning element |
57L |
| A46 |
Tone signal generator |
63A |

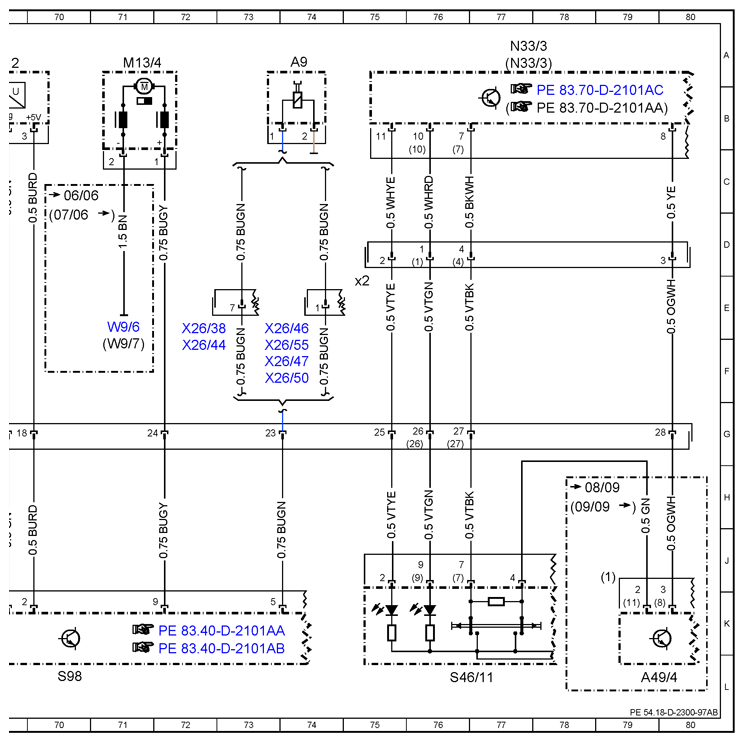

| A49/4 |
Stationary heater radio signal receiver |
79L |
| A56 |
Tachograph |
36L |
| A9 |
Refrigerant compressor |
74A |
| B12 |
Refrigerant pressure sensor |
69A |
| E2 |
Right lamp unit |
65A |
| E2m1 |
Headlamp range adjustment motor |
65A |

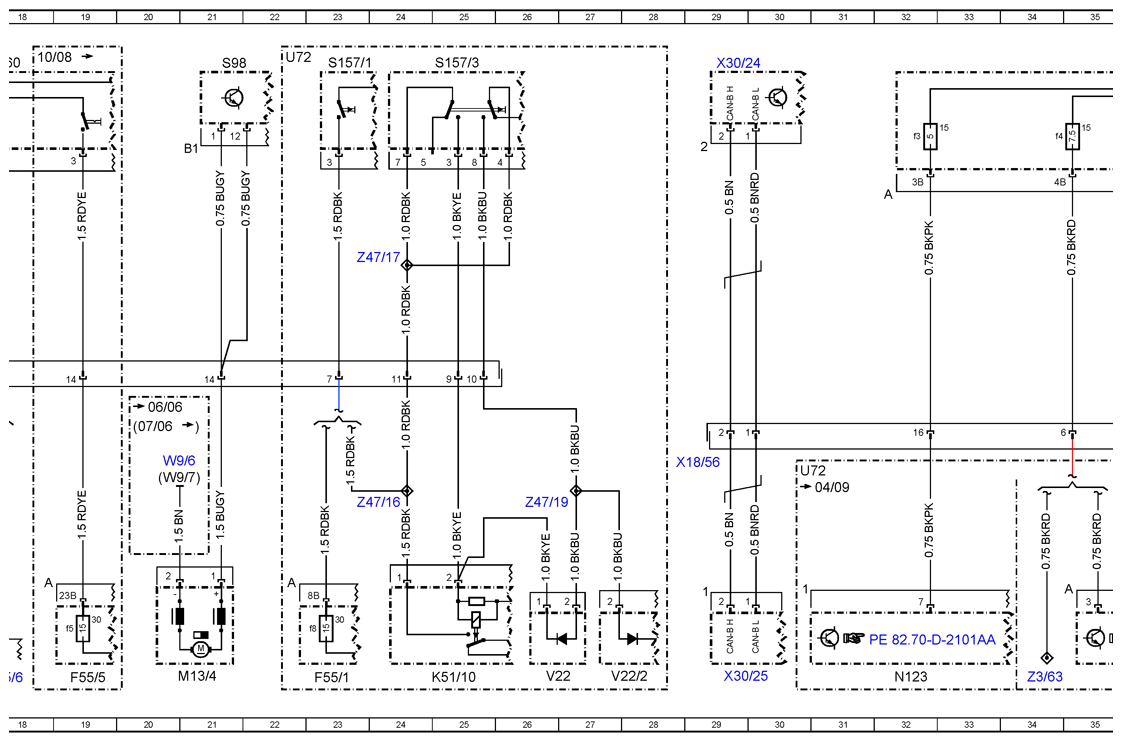

| F55/1 |
Fuse block (9 fuses) |
23L |
| F55/1f8 |
Fuse 8 (15 A), EDW, rotating beacon/tone sequence |
23K |

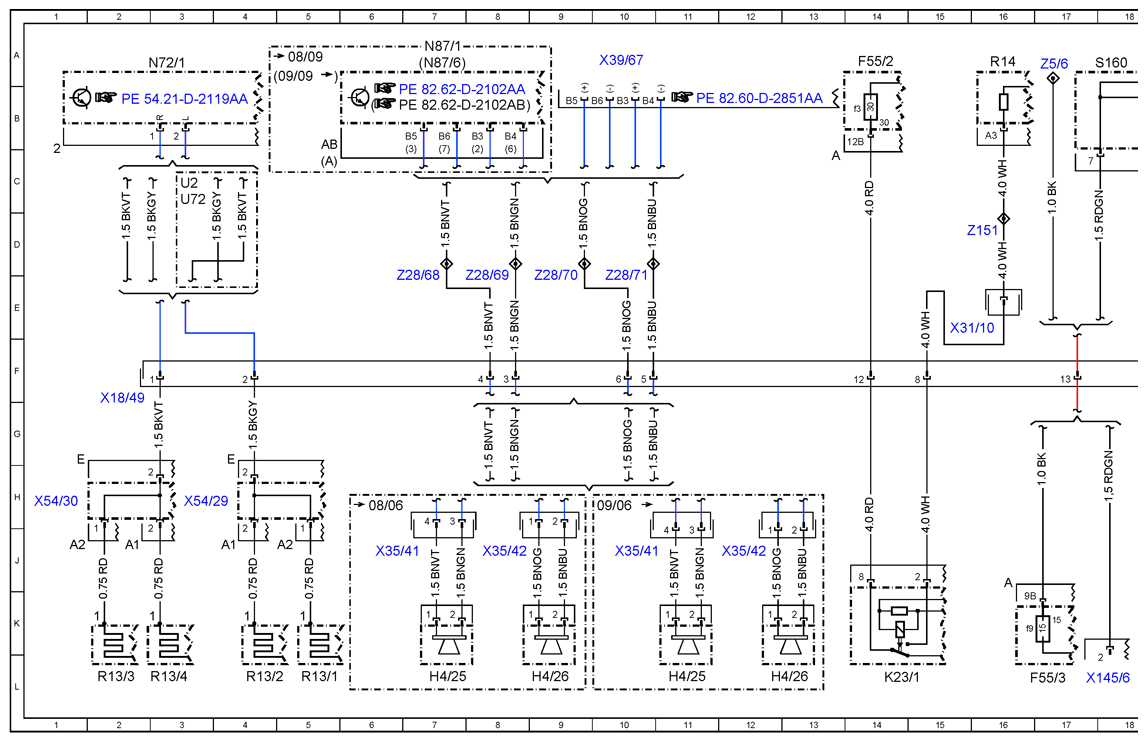

| F55/2 |
Fuse block (9 fuses) |
14A |
| F55/2f3 |
Fuse 12 (30 A), front blower |
14B |
| F55/3 |
Fuse block (9 fuses) |
17L |
| F55/3 |
Fuse block (9 fuses) |
35A |
| F55/3f3 |
Fuse 3 (5 A), start-off assist, heater timer, backup camera, telephone |
32B |
| F55/3f4 |
Fuse 4 (7.5 A), AAG, tachograph, ADR |
34B |
| F55/3f7 |
Fuse 7 (10 A), ESM [EWM] |
39B |
| F55/3f9 |
Fuse 9 (15 A), multitone horn/roof fan |
16K |
| F55/5 |
Fuse block (9 fuses) |
19L |
| F55/5f5 |
Fuse 23 (10/15 A) electrical components, other make body/left rear socket |
19K |
| H4/25 |
Bass mi drange speaker |
7L |
| H4/25 |
Bass mi drange speaker |
11L |
| H4/26 |
Bass mi drange speaker |
9L |
| H4/26 |
Bass mi drange speaker |
12L |
| K23/1 |
Blower stage 1 fan relay |
14L |
| K51/10 |
Rotating beacon relay |
25L |
| K9 |
Additional fan relay |
68A |
| M13/4 |
Circulation pump |
21L |
| M13/4 |
Circulation pump |
71A |
| N123 |
Telephone control unit |
32L |
| N15/5 |
EWM control unit |
40L |
| N3/20 |
CDI control unit |
45A |
| N3/21 |
CDI control unit |
44A |
| N3/28 |
CDI control unit |
45A |
| N3/30 |
CDI control unit |
42A |
| N33/3 |
Hot water auxiliary heating control unit |
77A |
| N33/3 |
Hot water auxiliary heating control unit |
77A |
| N33/3x2 |
Hot water auxiliary heater connector (4-pin) |
75E |
| N62 |
PTS control unit |
56A |
| N72/1 |
OBF control unit |
3A |
| N73 |
EIS [EZS] control unit |
54L |
| N87/1 |
Radio/radio with navigation |
7A |
| N87/6 |
Radio/radio with navigation NG |
7A |
| N97 |
Electronic level control [ENR] control unit |
59A |
| R13/1 |
Driver seat heated cushion |
5L |
| R13/2 |
Driver seat backrest heated cushion |
4L |
| R13/3 |
Front passenger seat heated cushion |
2L |
| R13/4 |
Front passenger seat backrest heated cushion |
3L |
| R14 |
Blower motor series resistor group |
16A |
| S1/1 |
Headlamp range controller |
65L |
| S157/1 |
Rotating beacon switch |
23A |
| S157/3 |
Rotating beacon with tone sequence switch |
25A |
| S157/3 |
Rotating beacon with tone sequence switch |
63L |
| S160 |
Body manufacturer electrical system switch |
18A |
| S2/6 |
Engine start/stop switch |
43L |
| S21/2 |
Front passenger power window switch |
51A |
| S46/11 |
Heater booster/stationary heater button |
76L |
| S62/41 |
Engine hood switch |
47A |
| S77/1 |
ELC lock button |
59L |
| S77/2 |
ELC raise/lower button |
60L |
| S9/1 |
Stop lamp switch |
49A |
| S98 |
AAC [KLA] control and operating unit |
21A |
| S98 |
AAC [KLA] control and operating unit |
70L |
| U10 |
Valid for engine start/stop (MSS) |
42F |
| U2 |
Valid for right-hand drive vehicles |
3C |
| U72 |
Valid for all except USA, Canada |
30H |
| U72 |
Valid for all except USA, Canada |
3C |
| U72 |
Valid for all except USA, Canada |
22A |
| U72 |
Valid for all except USA, Canada |
40A |
| U72 |
Valid for all except USA, Canada |
58A |
| V22 |
Tone sequence diode |
26L |
| V22/2 |
Horn/tone sequence decoupling diode |
27L |
| W9/6 |
Left front lamp unit ground point |
20H |
| W9/6 |
Left front lamp unit ground point |
71E |
| W9/7 |
Left front ground point 2 |
20H |
| W9/7 |
Left front ground point 2 |
71F |
| X11 |
Diagnostic socket (16-pin) |
53A |
| X145/6 |
Body manufacturer connector |
18L |
| X18/49 |
HLS/COC connector 2 |
2G |
| X18/56 |
HLS/COC connector |
29H |
| X26/38 |
Engine wiring harness connector |
72E |
| X26/44 |
Engine wiring harness connector |
72F |
| X26/46 |
Engine wiring harness connector 1 |
74E |
| X26/47 |
Engine wiring harness connector |
74F |
| X26/50 |
Engine wiring harness connector 1 |
74F |
| X26/55 |
Engine wiring harness connector 1 |
74F |
| X30/24 |
Interior CAN bus connector |
29A |
| X30/25 |
Interior CAN bus connector |
29L |
| X31/10 |
Blower stage 1 connector |
16E |
| X35/2 |
Front passenger door connector |
52E |
| X35/2 |
Front passenger door connector |
50E |
| X35/41 |
Driver door/MWH connector 2 |
6J |
| X35/41 |
Driver door/MWH connector 2 |
10J |
| X35/42 |
Front passenger door connector |
8J |
| X35/42 |
Front passenger door connector |
12J |
| X39/67 |
Radio preinstallation connector |
10A |
| X54/29 |
Driver heated seat connector |
3H |
| X54/30 |
Front passenger heated seat connector |
1H |
| X64/13 |
Double auxiliary fan connector |
67E |
| Z151 |
Blower motor connector sleeve |
16D |
| Z28/68 |
Left cockpit speaker connector sleeve |
7E |
| Z28/69 |
Left cockpit speaker connector sleeve |
8E |
| Z28/70 |
Right cockpit speaker connector sleeve |
9E |
| Z28/71 |
Right cockpit speaker connector sleeve |
10E |
| Z3/56 |
Headlamp range adjustment tml. 15 connector sleeve |
66E |
| Z3/63 |
ADR tml. 15 connector sleeve |
34L |
| Z36/12 |
HRA [LWR] control bus connector sleeve |
65E |
| Z47/16 |
Rotating beacon with tone sequence tml. 30 connector sleeve |
24H |
| Z47/17 |
Rotating beacon with tone sequence tml. 30 connector sleeve |
24D |
| Z47/19 |
Rotating beacon with tone sequence connector sleeve |
26H |
| Z5/6 |
Roof ventilator connector sleeve |
17A |
| Z7/77 |
Tml. 87 connector sleeve |
42E |
| Z81/5 |
Tml. 58d connector sleeve |
52L |
