| A2/101 |
Keyless Entry right sliding door antenna |
55L |
| A2/102 |
Keyless Entry left sliding door antenna |
30L |

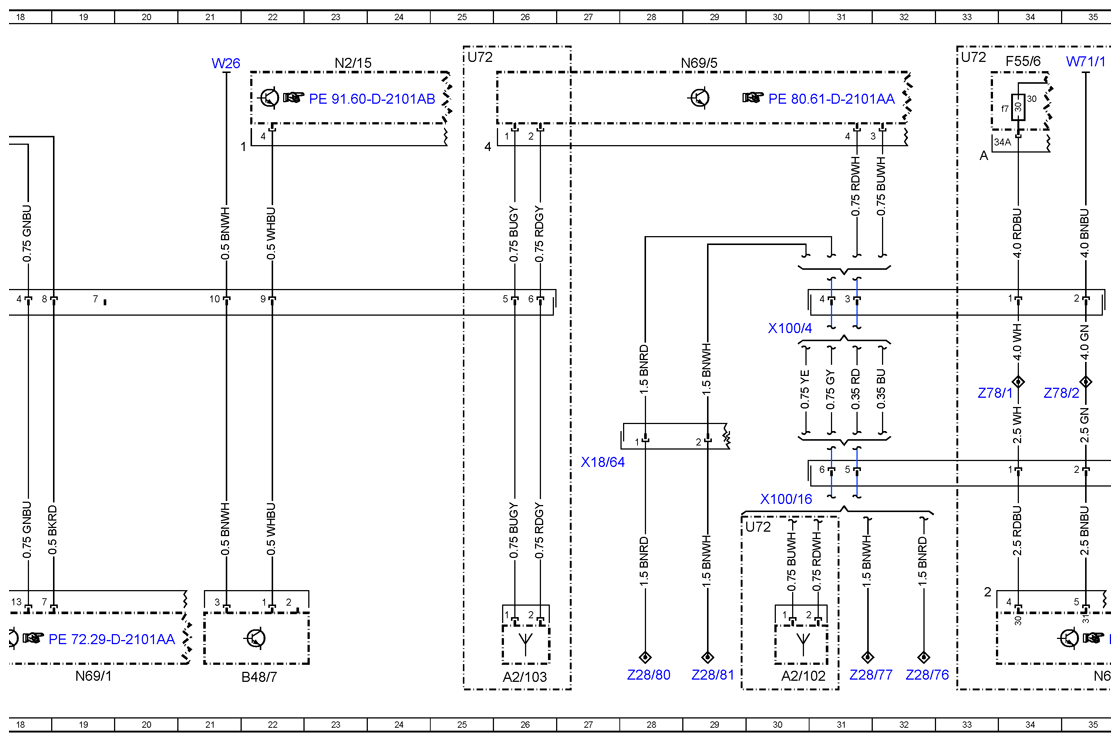

| A2/103 |
Keyless Entry driver door antenna |
26L |
| A2/104 |
Keyless Entry front passenger door antenna |
9L |
| B48/7 |
Airbag system driver door pressure sensor |
22L |
| El 7/10 |
Front passenger entrance/exit lamp |
12L |
| F55/1 |
Fuse block (9 fuses) |
40A |
| F55/1f1 |
Fuse 1 (25 A), driver door control unit |
40B |
| F55/6 |
Fuse block (9 fuses) |
34A |
| F55/6 |
Fuse block (9 fuses) |
59A |
| F55/6f6 |
Fuse 33 (15/30 A) closing assist/right sliding door/electronic level control |
59B |
| F55/6f7 |
Fuse 34 (30 A), left sliding door |
33B |
| H4/25 |
Bass mi drange speaker |
43L |
| H4/26 |
Bass mi drange speaker |
45L |
| M10/2 |
Front passenger door power window motor |
51L |
| M14/5 |
Front passenger door ZV actuator |
6L |
| M21/7 |
Passenger-side outside mirror |
14L |

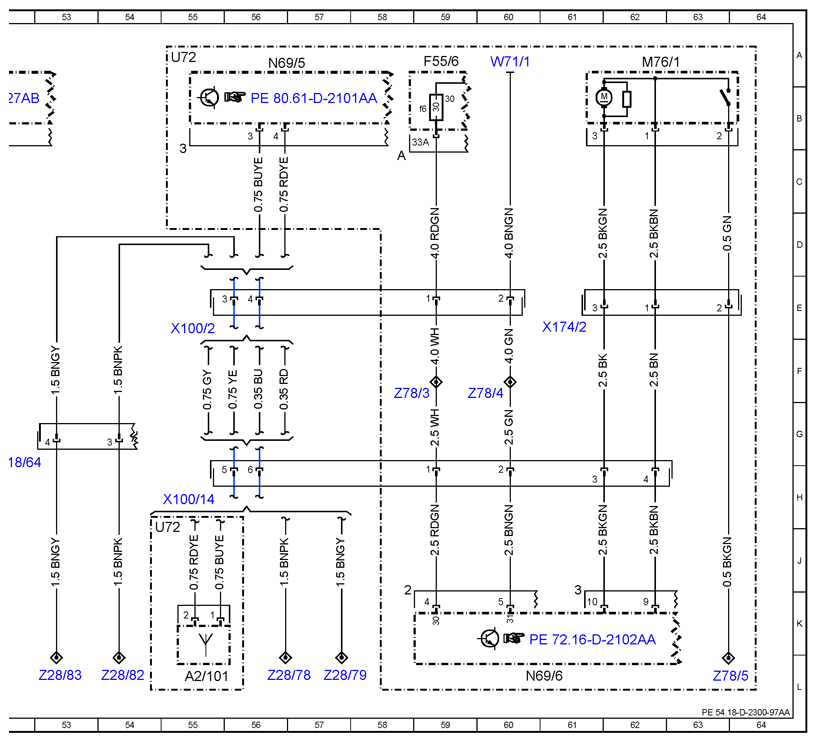

| M76/1 |
Right sliding door closing assist actuator |
62A |
| M76/2 |
Left sliding door closing assist actuator |
37A |
| N10 |
SAM control unit |
5A |
| N10 |
SAM control unit |
51A |
| N2/15 |
Highline airbag control unit |
23A |
| N69/1 |
Driver door control unit |
19L |
| N69/1 |
Driver door control unit |
41L |
| N69/5 |
Keyless Entry control unit |
10A |
| N69/5 |
Keyless Entry control unit |
29A |
| N69/5 |
Keyless Entry control unit |
56A |
| N69/6 |
Right sliding door control unit |
60L |
| N69/7 |
Left sliding door control unit |
35L |

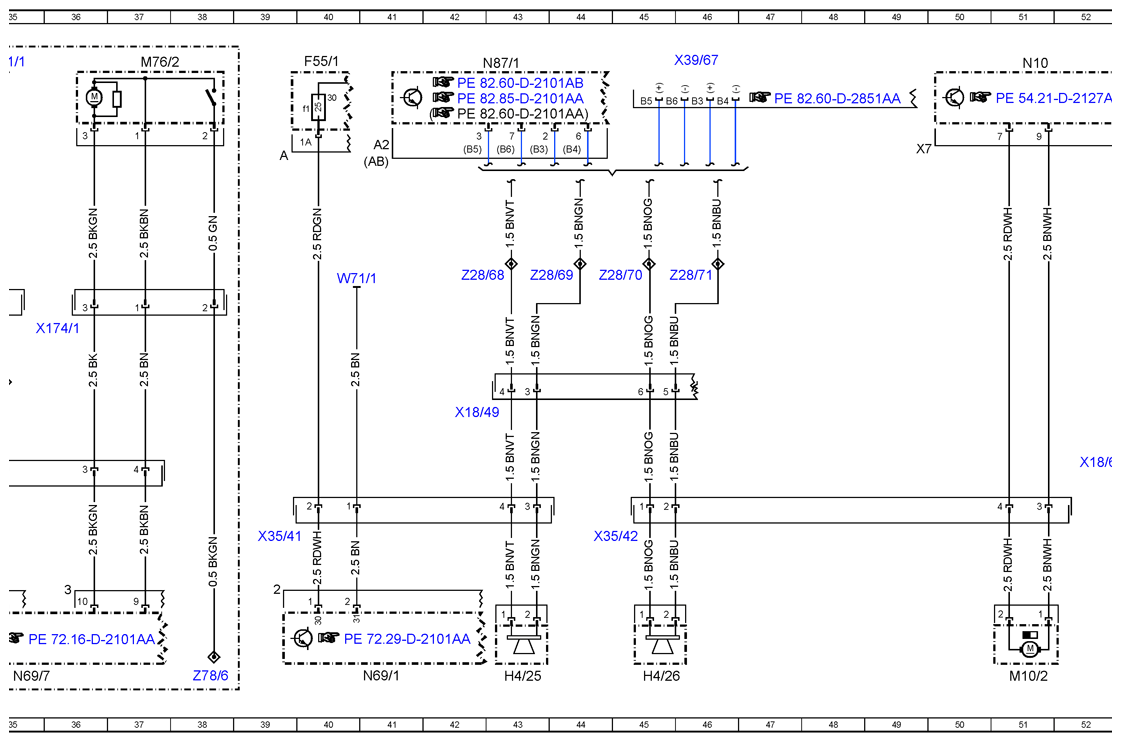

| N87/1 |
Radio/radio with navigation |
43A |

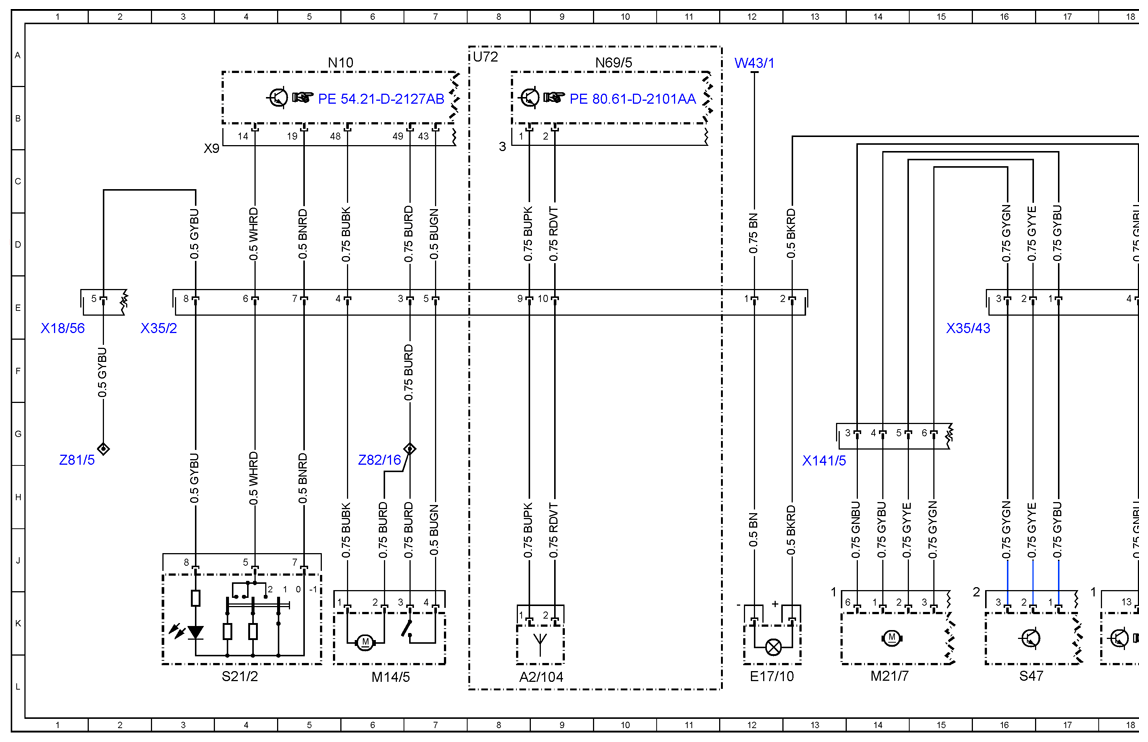

| S21/2 |
Front passenger power window switch |
4L |
| S47 |
Driver door control panel |
16L |
| U72 |
Valid for all except USA, Canada |
29J |
| U72 |
Valid for all except USA, Canada |
8A |
| U72 |
Valid for all except USA, Canada |
25A |
| U72 |
Valid for all except USA, Canada |
54J |
| U72 |
Valid for all except USA, Canada |
33A |
| U72 |
Valid for all except USA, Canada |
55A |
| W26 |
Ground point (airbag) |
21A |
| W43/1 |
Left firewall ground point |
12A |
| W71/1 |
Driver seat frame ground point 1 |
40E |
| W71/1 |
Driver seat frame ground point 1 |
35A |
| W71/1 |
Driver seat frame ground point 1 |
60A |
| X100/14 |
Right sliding door connector |
55H |
| X100/16 |
Left s sliding door connector |
30H |
| X100/2 |
HLS/right sliding door connector |
55E |
| X100/4 |
HLS/left sliding door connector |
30E |
| X141/5 |
Passenger-side outside mirror connector |
13H |
| X174/1 |
Left closing assist connector |
36E |
| X174/2 |
Right closing assist connector |
61E |
| X18/49 |
HLS/COC connector 2 |
42G |
| X18/56 |
HLS/COC connector |
1E |
| X18/64 |
HLS/COC connector 5 |
27H |
| X18/64 |
HLS/COC connector 5 |
52H |
| X35/2 |
Front passenger door connector |
3E |
| X35/41 |
Driver door/MWH connector 2 |
39J |
| X35/42 |
Front passenger door connector |
45J |
| X35/43 |
Driver door/MWH connector 3 |
15E |
| X39/67 |
Radio preinstallation connector |
46A |
| Z28/68 |
Left cockpit speaker connector sleeve |
42E |
| Z28/69 |
Left cockpit speaker connector sleeve |
44E |
| Z28/70 |
Right cockpit speaker connector sleeve |
45E |
| Z28/71 |
Right cockpit speaker connector sleeve |
46E |
| Z28/76 |
Left sliding door speaker connector sleeve |
32L |
| Z28/77 |
Left sliding door speaker connector sleeve |
32L |
| Z28/78 |
Right sliding door speaker connector sleeve |
57L |
| Z28/79 |
Right sliding door speaker connector sleeve |
57L |
| Z28/80 |
Left sliding door/rear end speaker connector sleeve |
28L |
| Z28/81 |
Left sliding door/rear end speaker connector sleeve |
29L |
| Z28/82 |
Right sliding door/rear end speaker connector sleeve |
54L |
| Z28/83 |
Right sliding door/rear end speaker connector sleeve |
53L |
| Z78/1 |
Tml. 30 left closing assist connector sleeve |
33F |
| Z78/2 |
Tml. 31 left closing assist connector sleeve |
35F |
| Z78/3 |
Tml. 30 right closing assist connector sleeve |
58F |
| Z78/4 |
Tml. 31 right closing assist connector sleeve |
60F |
| Z78/5 |
Right closing assist connector sleeve |
64L |
| Z78/6 |
Left closing assist connector sleeve |
38L |
| Z81/5 |
Tml. 58d connector sleeve |
1G |
| Z82/16 |
Front passenger door ZV connector sleeve |
6G |
