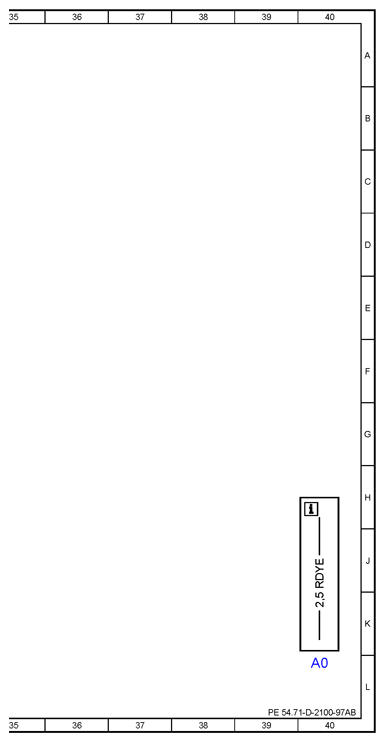

| AO |
Color code key |
40L |

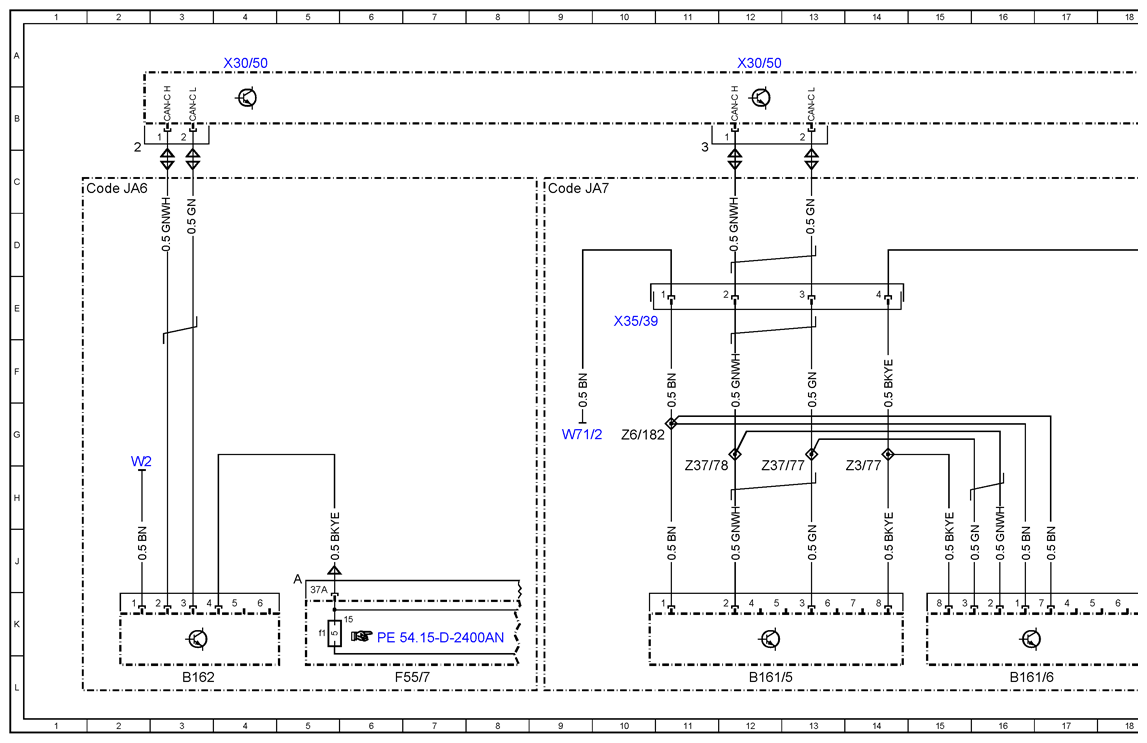

| B161/5 |
Left rear radar sensor |
12L |
| B161/6 |
Right rear radar sensor |
16L |
| B162 |
COLLISION PREVENTION ASSIST control unit |
3L |
| B84/8 |

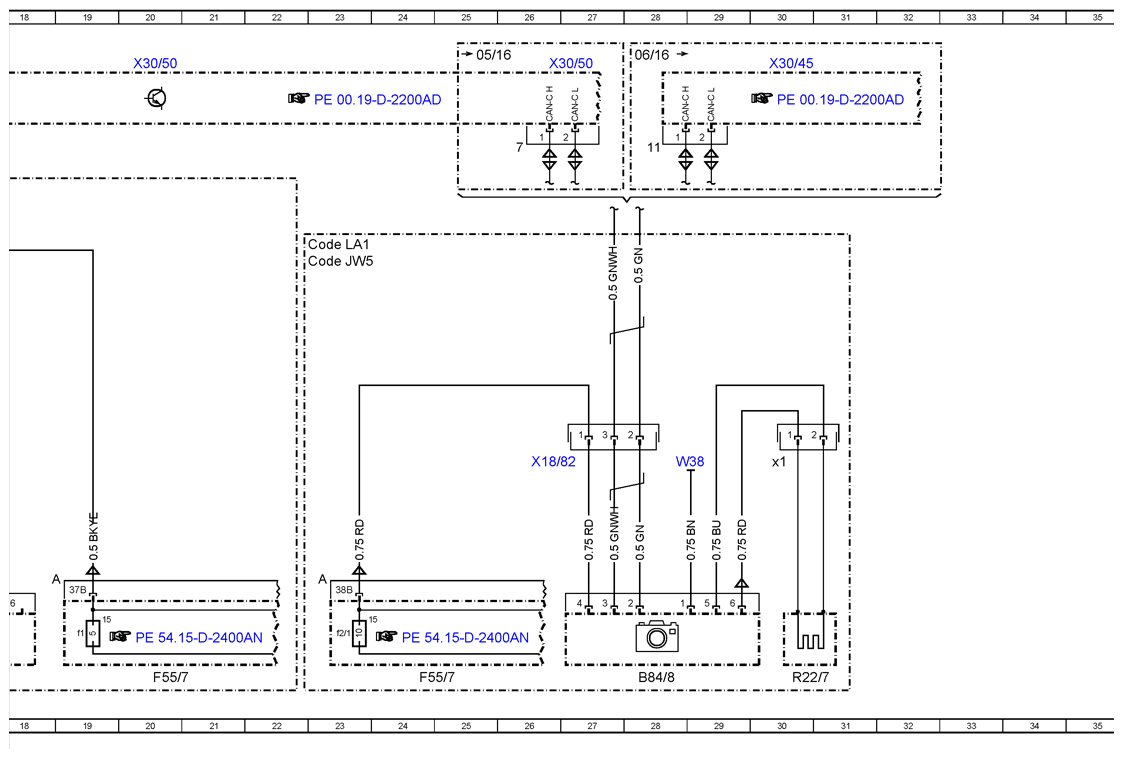

Multifunction camera |
28L |
| Code JA6 |
COLLISION PREVENTION ASSIST |
1C |
| Code JA7 |
Blind spot assist |
9C |
| Code JW5 |
Lane Keeping Assist |
22D |
| Code LA1 |
High Beam Assist |
22D |
| F55/7 |
Fuse block 7 (9-pin) |
7L |
| F55/7 |
Fuse block 7 (9-pin) |
20L |
| F55/7 |
Fuse block 7 (9-pin) |
24L |
| F55/7f1 |
Radar sensors fuse 37 |
5K |
| F55/7f1 |
Radar sensors fuse 37 |
19K |
| F55/7f2/1 |
Electrical fuse 38, multifunction camera |
23K |
| R22/7 |
Multifunction camera windshield heater field |
30L |
| R22/7x1 |
Multifunction camera windshield heater field electrical connector |
30H |
| W2 |
Right front lamp unit ground point |
2H |
| W38 |
Roof ground point |
28H |
| W71/2 |
Driver seat frame ground point 2 |
9G |
| X18/82 |
MWH [HLS]/roof electrical connector 8 |
26H |
| X30/45 |
Engine CAN electrical connector 2 |
30A |
| X30/50 |
Engine CAN electrical connector 3 |
20A |
| X30/50 |
Engine CAN electrical connector 3 |
4A |
| X30/50 |
Engine CAN electrical connector 3 |
26A |
| X30/50 |
Engine CAN electrical connector 3 |
12A |
| X35/39 |
Blind Spot Assist electrical connector |
10E |
| Z3/77 |
Rear radar sensors circuit 15 connector sleeve |
14H |
| Z37/77 |
CAN bus (low) connector sleeve |
13H |
| Z37/78 |
CAN databus (high) connector sleeve |
11H |
| Z6/182 |
Ground connection connector sleeve |
10G |
