| AO |
Color code key |
40L |

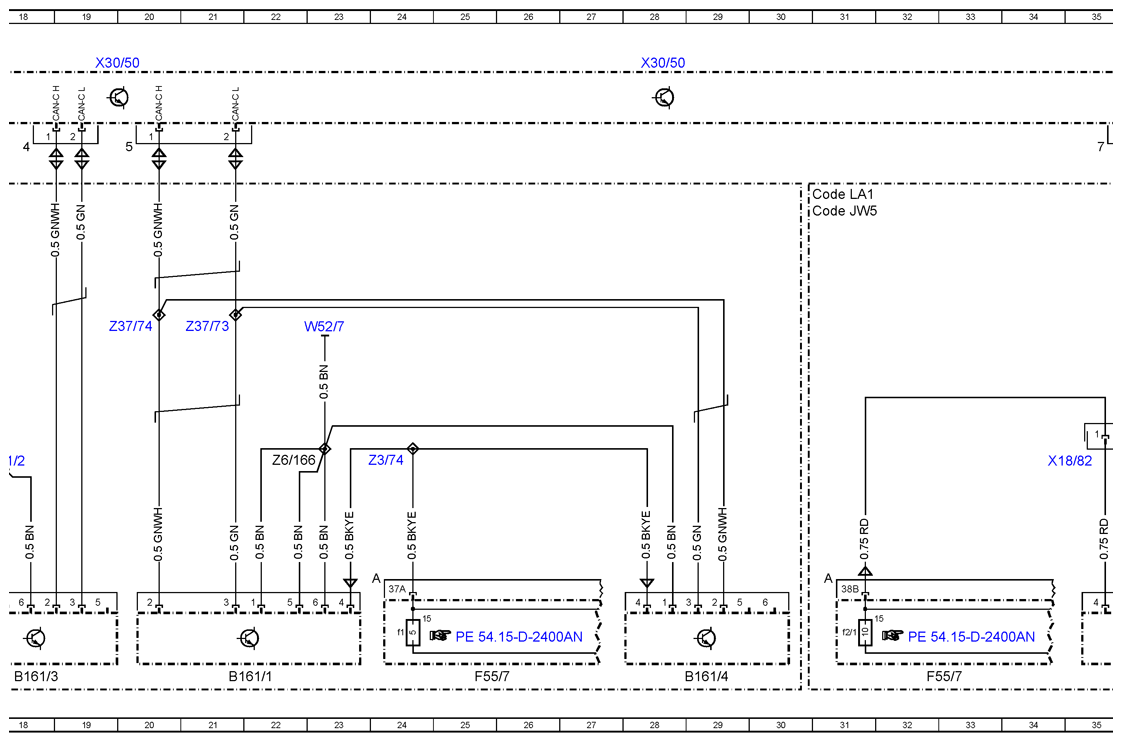

| B161/1 |
Right rear radar sensor |
21L |
| B161/2 |
Left side radar sensor |
11L |
| B161/3 |
Right side radar sensor |
18L |
| B161/4 |
Left rear radar sensor |
29L |

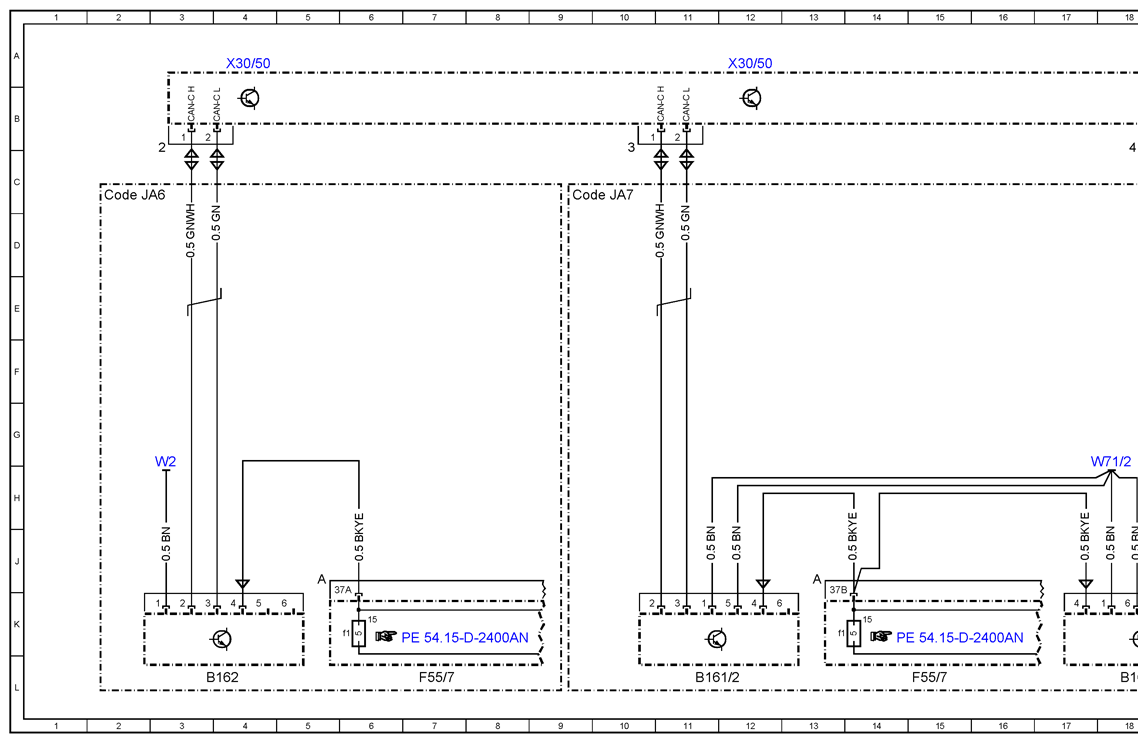

| B162 |
COLLISION PREVENTION ASSIST control unit |
4L |

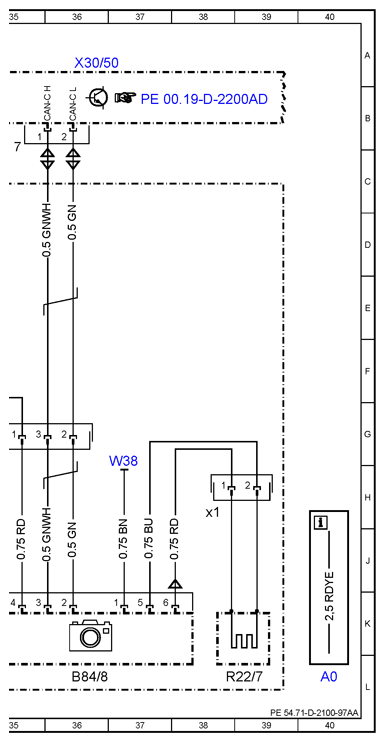

| B84/8 |
Multifunction camera |
36L |
| Code JA6 |
COLLISION PREVENTION ASSIST |
2C |
| Code JA7 |
Blind spot assist |
9C |
| Code JW5 |
Lane Keeping Assist |
30D |
| Code LA1 |
High Beam Assist |
30C |
| F55/7 |
Fuse block 7 (9-pin) |
7L |
| F55/7 |
Fuse block 7 (9-pin) |
15L |
| F55/7 |
Fuse block 7 (9-pin) |
25L |
| F55/7 |
Fuse block 7 (9-pin) |
32L |
| F55/7f1 |
Radar sensors fuse 37 |
6K |
| F55/7f1 |
Radar sensors fuse 37 |
13K |
| F55/7f1 |
Radar sensors fuse 37 |
24K |
| F55/7f2/1 |
Electrical fuse 38, multifunction camera |
31K |
| R22/7 |
Multifunction camera windshield heater field |
39L |
| R22/7x1 |
Multifunction camera windshield heater field electrical connector |
38H |
| W2 |
Right front lamp unit ground point |
3H |
| W38 |
Roof ground point |
37H |
| W52/7 |
Left rear crossmember ground point |
23E |
| W71/2 |
Driver seat frame ground point 2 |
18H |
| X18/82 |
MWH [HLS]/roof electrical connector 8 |
35H |
| X30/50 |
Engine CAN electrical connector 3 |
4A |
| X30/50 |
Engine CAN electrical connector 3 |
19A |
| X30/50 |
Engine CAN electrical connector 3 |
12A |
| X30/50 |
Engine CAN electrical connector 3 |
28A |
| X30/50 |
Engine CAN electrical connector 3 |
36A |
| Z3/74 |
Rear radar sensors circuit 15 connector sleeve |
24G |
| Z37/73 |
CAN-C low connector sleeve |
21E |
| Z37/74 |
CAN-C high connector sleeve |
20E |
| Z6/166 |
Rear radar sensors connector sleeve |
22G |
