Remove/install bottom parts of soundproofing - AR94.30-P-5300EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 with ENGINE 642, 646, 651

MODEL 204.2 with ENGINE 642, 646, 651

MODEL 204.3 with ENGINE 651

MODEL 207 with ENGINE 642, 651

MODEL 212 with ENGINE 642, 651

MODEL 218 with ENGINE 642, 651

Shown on model 212

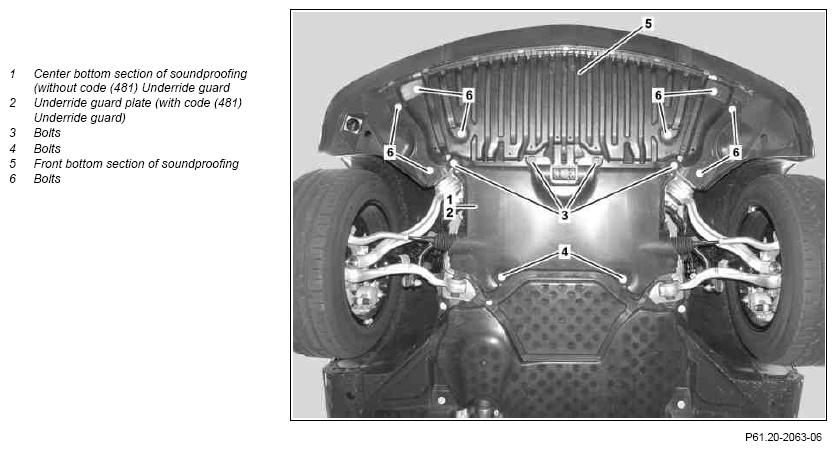

Fig 1: Bottom Soundproofing Section - Shown On Model 212

Courtesy of MERCEDES-BENZ USA

Shown on model 212 with engine 642

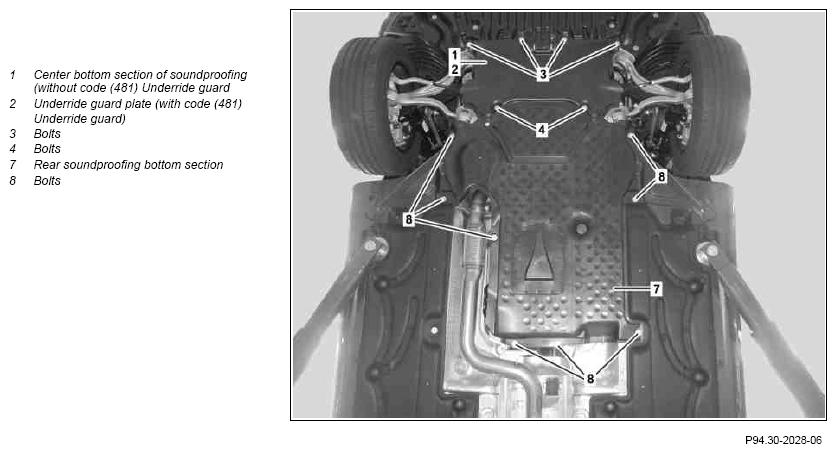

Fig 2: Bottom Soundproofing Section - Shown On Model 212 With Engine 642

Courtesy of MERCEDES-BENZ USA

Picture no., etc.	Work notes
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Middle bottom section of soundproofing	Unscrew bolts (3, 4) and remove center bottom section of soundproofing (1). Rechargeable screwdriver, rechargeable drill
2	Underride guard plate	MODEL 204.0 with ENGINE 642, 646, 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 204.2 with ENGINE 642, 646, 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 204.3 with ENGINE 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 207 with ENGINE 642, 651 with CODE 481 (Underride guard) MODEL 212 with ENGINE 642, 651 with CODE 481 (Underride guard) MODEL 218 with ENGINE 642, 651 with CODE 481 (Underride guard) Unscrew bolts (3, 4) and remove underride guard plate (2).
			*BA61.40-P-1003-01A
		MODEL 212 with ENGINE 642, 651 with CODE 481 (Underride guard)
			*BA61.40-P-1001-01D
		MODEL 204.0 with ENGINE 642, 646, 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 204.2 with ENGINE 642, 646, 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 204.3 with ENGINE 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 207 with ENGINE 642, 651 with CODE 481 (Underride guard) MODEL 218 with ENGINE 642, 651 with CODE 481 (Underride guard)
5	Front bottom section of soundproofing	On vehicles without code (481) Underride guard; first remove center bottom section of soundproofing (1). Unscrew bolts (6) and remove front bottom section soundproofing (5). An additional bolt is installed at the front in the center on model 218. On vehicles with code (481) Underride guard; first remove underride guard plate (2). Rechargeable screwdriver, rechargeable drill
7	Rear soundproofing bottom section	MODEL 204.0 with ENGINE 642, 646, 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 204.2 with ENGINE 642, 646, 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 204.3 with ENGINE 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 207 with ENGINE 642, 651 with CODE 481 (Underride guard) MODEL 212 with ENGINE 642, 651 with CODE 481 (Underride guard) MODEL 218 with ENGINE 642, 651 with CODE 481 (Underride guard) Vehicles without code (481) Underride guard: Unscrew bolts (4, 8) and remove rear bottom section of soundproofing (7). Vehicles with code (481) Underride guard: Remove bolts (4, 8). Lower underride guard plate (2) by loosening bolts (3) and remove rear bottom section of soundproofing (7).
			*BA61.40-P-1003-01A
		MODEL 212 with ENGINE 642, 651 with CODE 481 (Underride guard)
			*BA61.40-P-1001-01D
		MODEL 204.0 with ENGINE 642, 646, 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 204.2 with ENGINE 642, 646, 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 204.3 with ENGINE 651 with CODE 430 (Offroad package) with CODE 481 (Underride guard) MODEL 207 with ENGINE 642, 651 with CODE 481 (Underride guard) MODEL 218 with ENGINE 642, 651 with CODE 481 (Underride guard) Rechargeable screwdriver, rechargeable drill gotis://G_58.0_01.1

UNDERRIDE GUARD

Number	Designation		MODEL 204 with CODE 430 (Offroad package) with CODE 481 (Underride guard)	MODEL 207 with CODE 481 (Underride guard)
BA61.40-P-1001-01D	Bolt, underride guard	Nm	17	17

UNDERRIDE GUARD

Number	Designation		MODEL 218 with CODE 481 (Underride guard)
BA61.40-P-1001-01D	Bolt, underride guard	Nm	17

UNDERBODY PROTECTION

Number	Designation		MODEL 212 with CODE 481
BA61.40-P-1003-01A	Bolt, underbody protection plate	Nm	17
