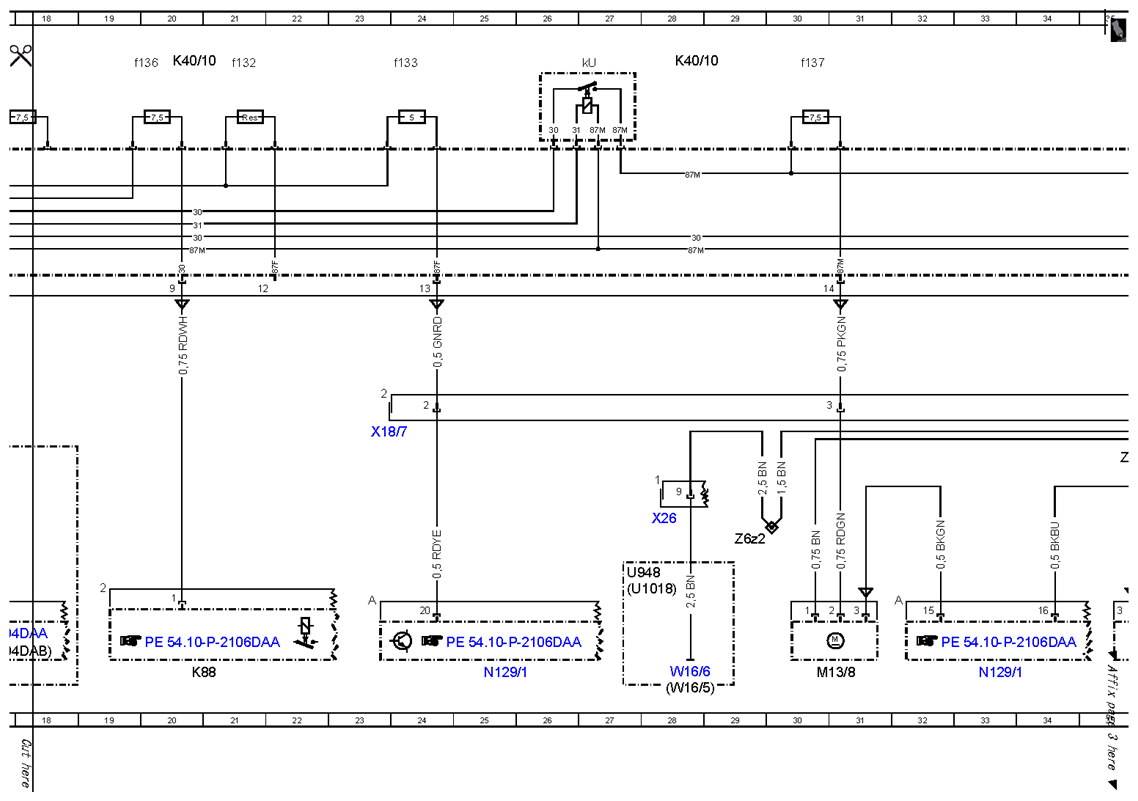

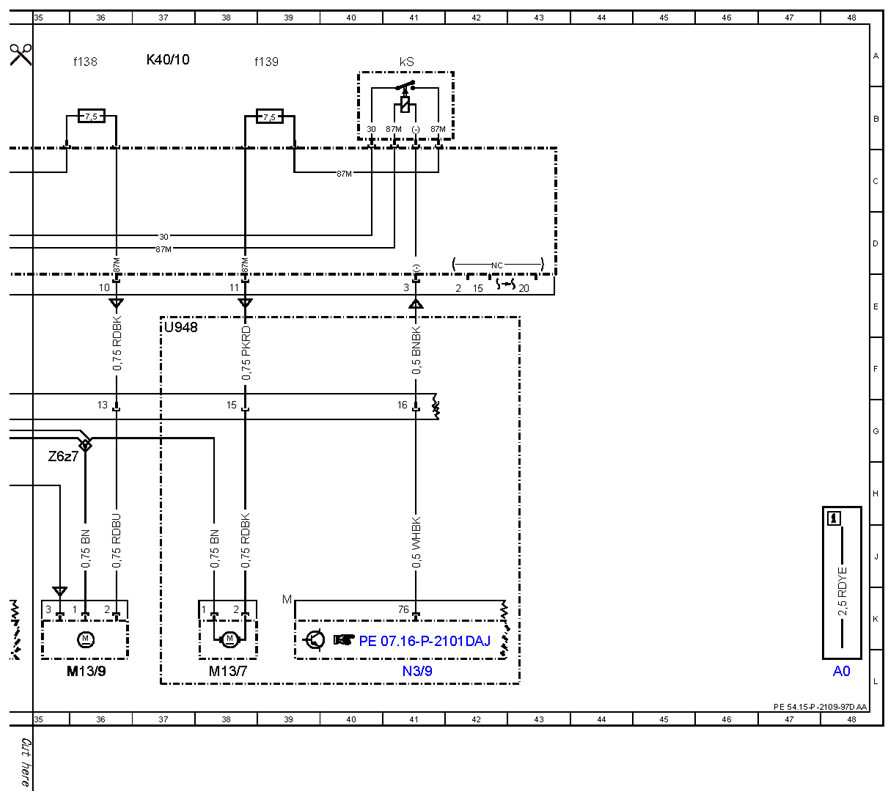

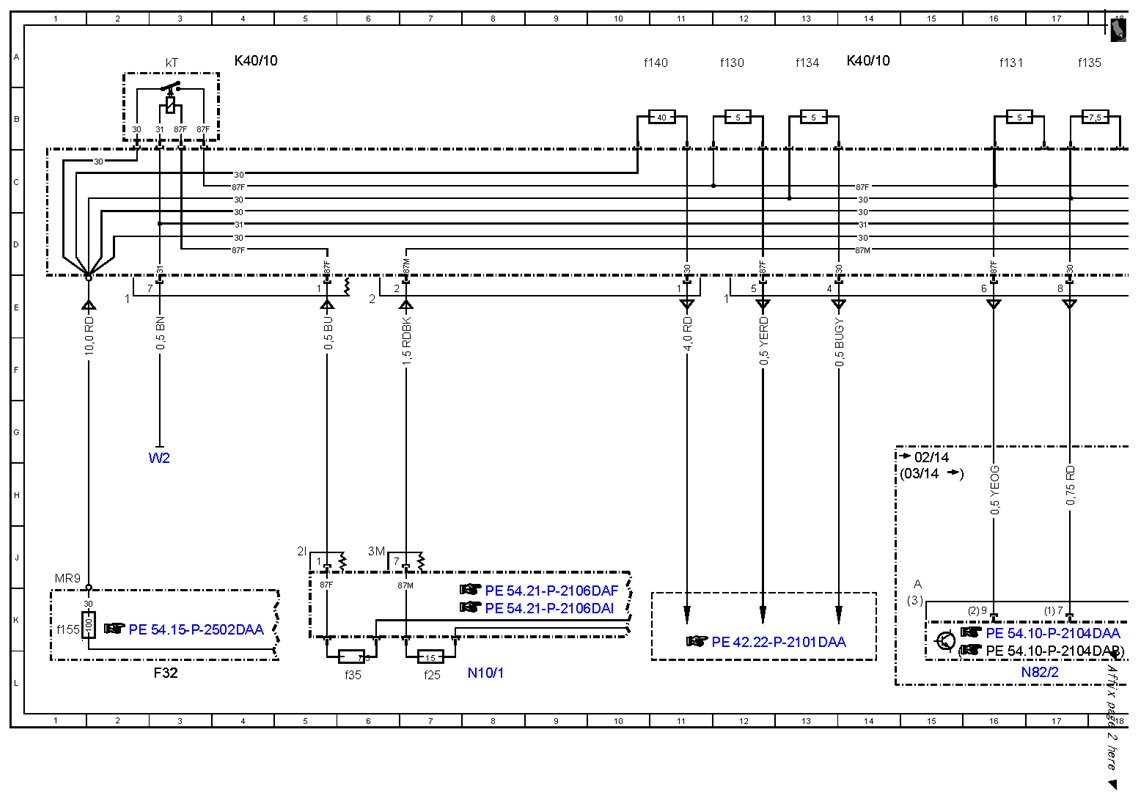

Wiring diagram for HYBRID fuse and relay box - PE54.15-P-2109-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 K40/10
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| F32 | Front electrical prefuse box | 3L |
| F32f155 | Prefuse 155 | 1K |
| K40/10 | HYBRID fuse and relay module | 4A |
| K40/10 | HYBRID fuse and relay module | 14A |
| K40/10 | HYBRID fuse and relay module | 20A |
| K40/10 | HYBRID fuse and relay module | 28A |
| K40/10 | HYBRID fuse and relay module | 37A |
| K40/10f130 | Fuse 130 | 12A |
| K40/10f131 | Fuse 131 | 16A |
| K40/10f132 | Fuse 132 | 21A |
| K40/10f133 | Fuse 133 | 24A |
| K40/10f134 | Fuse 134 | 13A |
| K40/10f135 | Fuse 135 | 17A |
| K40/10f136 | Fuse 136 | 19A |
| K40/10f137 | Fuse 137 | 30A |
| K40/10f138 | Fuse 138 | 36A |
| K40/10f139 | Fuse 139 | 39A |
| K40/10f140 | Fuse 140 | 10A |
| K40/10kS | Transmission oil cooling coolant circulation pump relay | 41A |
| K40/10kT | HYBRID control unit power supply relay | 3A |
| K40/10kU | HYBRID power electronics coolant circulation pump relay | 27A |
| K88 | Pyrotechnical separator | 20L |
| M13/7 | Transmission oil cooling coolant circulation pump | 38L |
| M13/8 | Power electronics circulation pump 1 | 30L |
| M13/9 | Power electronics circulation pump 2 | 36L |
| N10/1 | Front SAM control unit with fuse and relay module | 8L |
| N10/1f25 | Fuse 25 | 7L |
| N10/1f35 | Fuse 35 | 6L |
| N129/1 | Power electronics control unit | 25L |
| N129/1 | Power electronics control unit | 33L |
| N3/9 | CDI control unit | 41L |
| N82/2 | Battery management system control unit | 17L |
| U1018 | Valid for gasoline engine 276 | 27K |
| U948 | Valid for diesel engine 651 | 37E |
| U948 | Valid for diesel engine 651 | 27J |
| W16/5 | Left major assembly compartment electronics ground point | 28L |
| W16/6 | Right major assembly compartment ground point | 28L |
| W2 | Right front ground point at lamp unit | 3H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 23G |
| X26 | Interior and engine wiring harness electrical connector | 28H |
| Z6z2 | Circuit 31 connector sleeve | 29J |
| Z6z7 | Circuit 31 connector sleeve | 35G |
