Wiring diagram of chassis CAN - PE00.19-P-2195-97DAE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

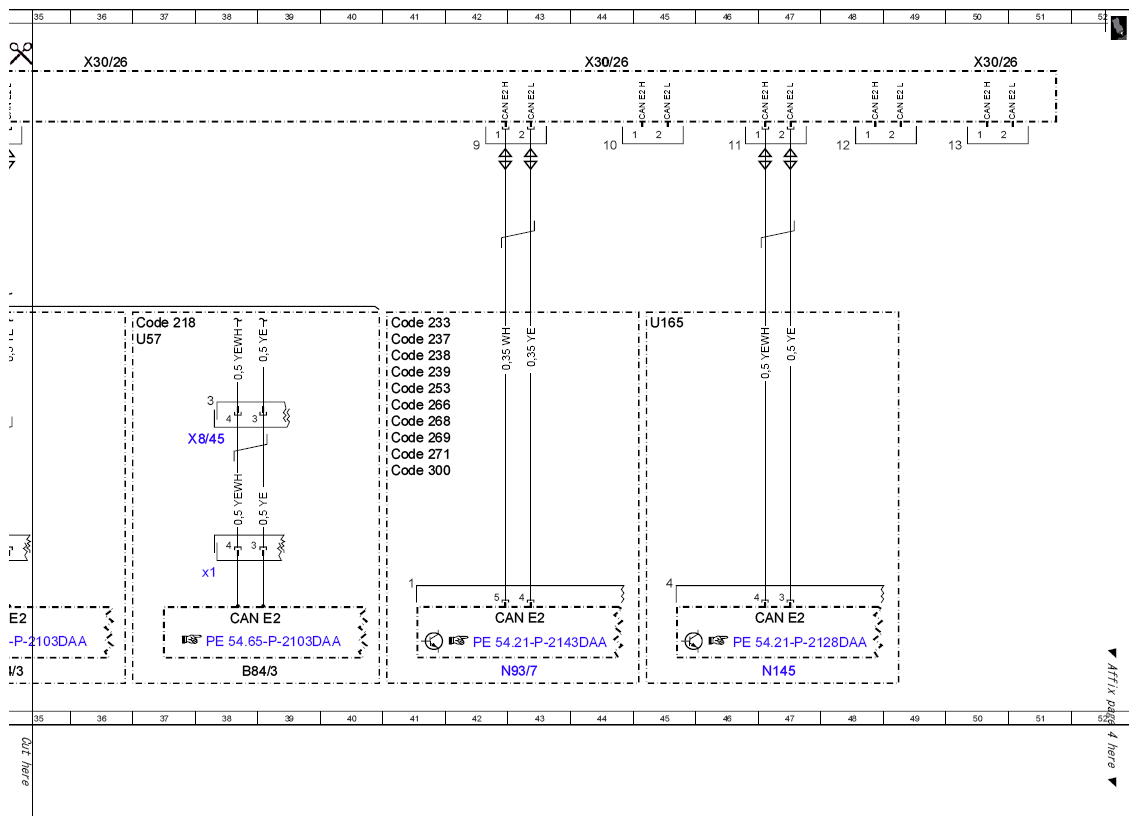

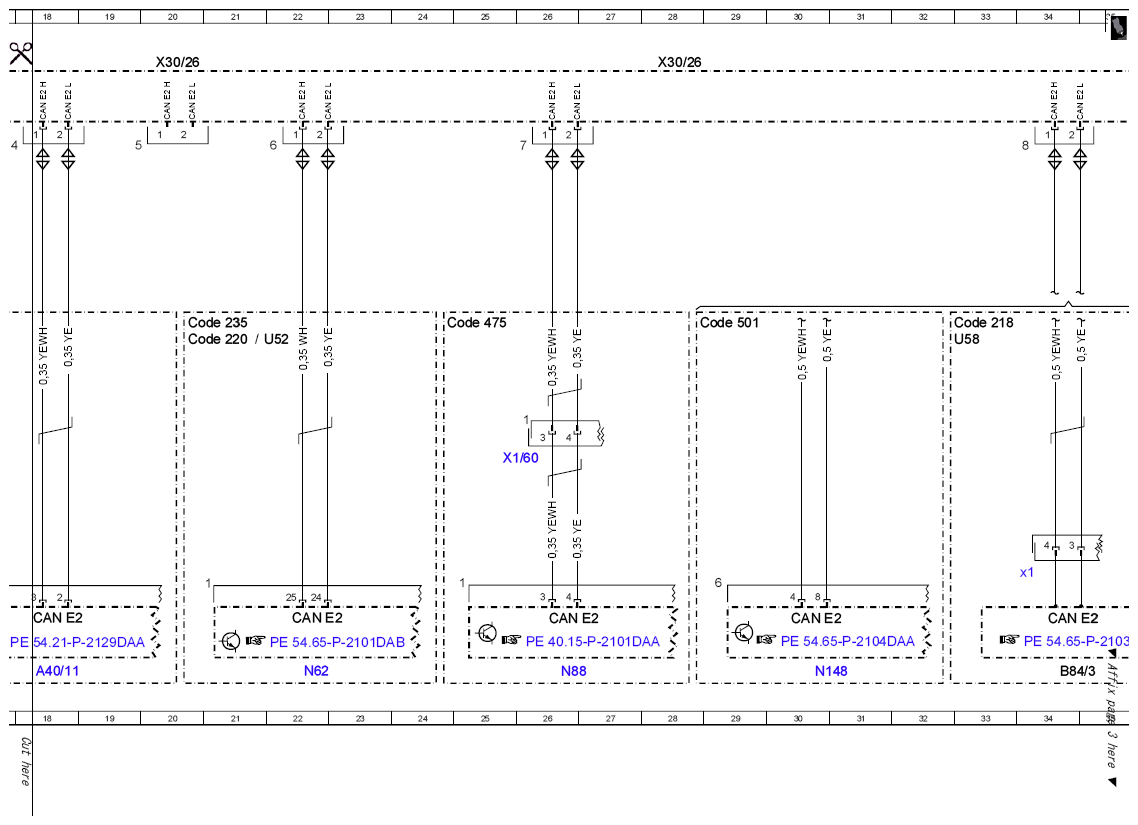

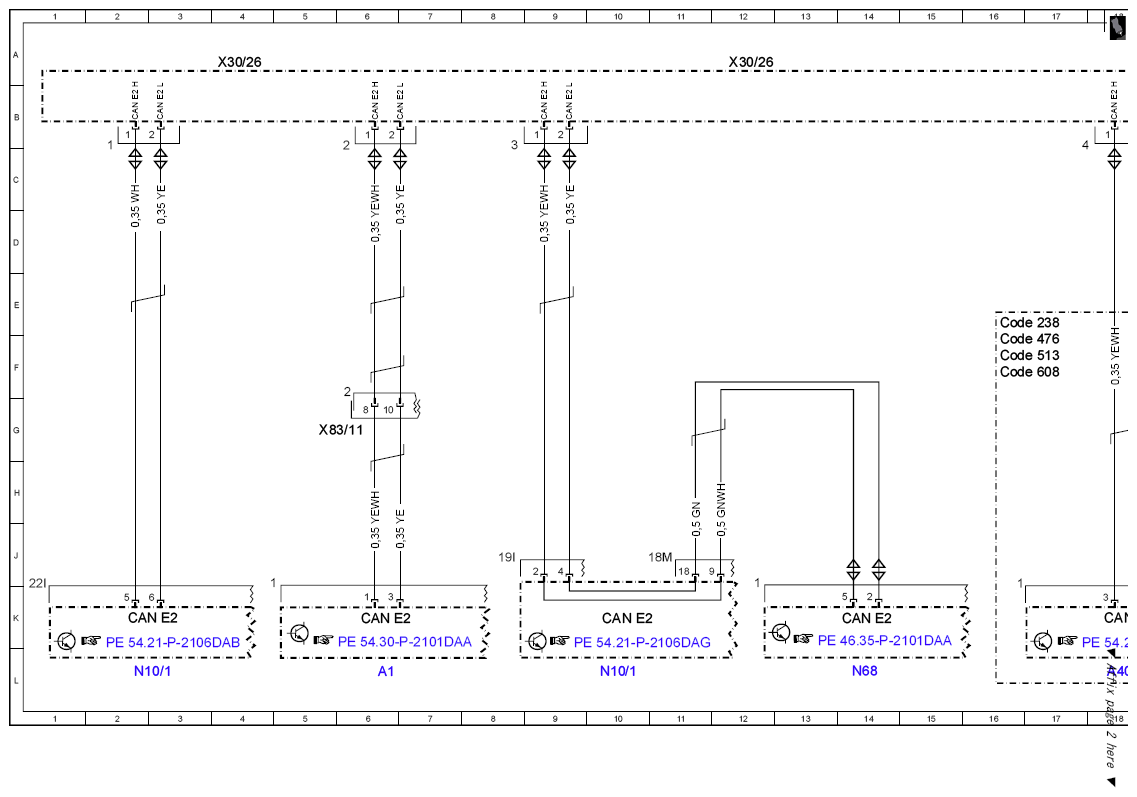

MODEL 212 as of model year 2014 Potential distributor X30/26
| Code: | Designation: | Position: |
|---|---|---|

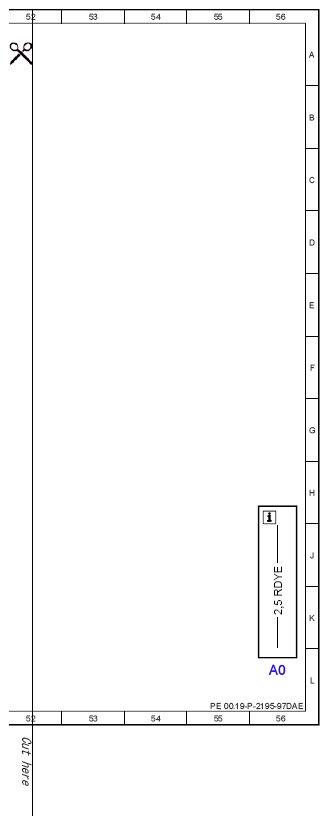

| A0 | Color code key | 56L |
| A1 | Instrument cluster | 6L |
| A40/11 | Multifunction camera | 18L |
| B84/3 | Backup camera | 34L |
| B84/3 | Backup camera | 38L |
| B84/3x1 | Backup camera electrical connector | 34J |
| B84/3x1 | Backup camera electrical connector | 38J |
| CAN E2 | Chassis CAN 2 | 14K |
| CAN E2 | Chassis CAN 2 | 18K |
| CAN E2 | Chassis CAN 2 | 26K |
| CAN E2 | Chassis CAN 2 | 2K |
| CAN E2 | Chassis CAN 2 | 6K |
| CAN E2 | Chassis CAN 2 | 10K |
| CAN E2 | Chassis CAN 2 | 22K |
| CAN E2 | Chassis CAN 2 | 30K |
| CAN E2 | Chassis CAN 2 | 34K |
| CAN E2 | Chassis CAN 2 | 38K |
| CAN E2 | Chassis CAN 2 | 43K |
| CAN E2 | Chassis CAN 2 | 47K |
| Code 218 | Backup camera | 32E |
| Code 218 | Backup camera | 37E |
| Code 220 | PARKTRONIC | 20F |
| Code 233 | DISTRONIC PLUS | 41E |
| Code 235 | Active Park Assist | 20E |
| Code 237 | Active Blind Spot Assist | 41F |
| Code 238 | Active Lane Keeping Assist | 16E |
| Code 238 | Active Lane Keeping Assist | 41F |
| Code 239 | DISTRONIC PRO | 41F |
| Code 253 | Rear-end collision warning and protection system | 41F |
| Code 266 | Steer Assist | 41G |
| Code 268 | Brake Assist System PLUS | 41G |
| Code 269 | Brake Assist System PLUS, cross-traffic (BAS+Q) | 41G |
| Code 271 | Autonomous intervention by the brake system / pedestrian protection | 41G |
| Code 300 | Collision mitigation (CMS) | 41H |
| Code 475 | Tire pressure monitor | 24E |
| Code 476 | Automatic lane detection | 16F |
| Code 501 | 360 degree camera | 28E |
| Code 513 | Traffic sign recognition | 16F |
| Code 608 | Adaptive Highbeam Assist | 16F |
| N10/1 | Front SAM control unit with fuse and relay module | 10L |
| N10/1 | Front SAM control unit with fuse and relay module | 2L |
| N145 | Transmission mode control unit | 47L |
| N148 | 360° camera control unit | 30L |
| N62 | Parking system control unit | 22L |
| N68 | Electrical power steering control unit | 14L |
| N88 | Tire pressure monitor control unit | 26L |
| N93/7 | Chassis gateway control unit | 43L |
| U165 | Valid for AMG | 45E |
| U52 | Valid for Japan | 21F |
| U57 | Valid for model 212.2 | 37F |
| U58 | Valid for model 212.0/1 | 32F |
| X1/60 | Tire pressure monitor electrical connector | 26H |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 4A |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 12A |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 20A |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 28A |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 36A |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 44A |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 50A |
| X8/45 | Left vehicle interior and tailgate electrical connector | 38G |
| X83/11 | Circuit 56 exterior lights switch electrical connector | 6G |
