Wiring diagram of chassis CAN - PE00.19-P-2195-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

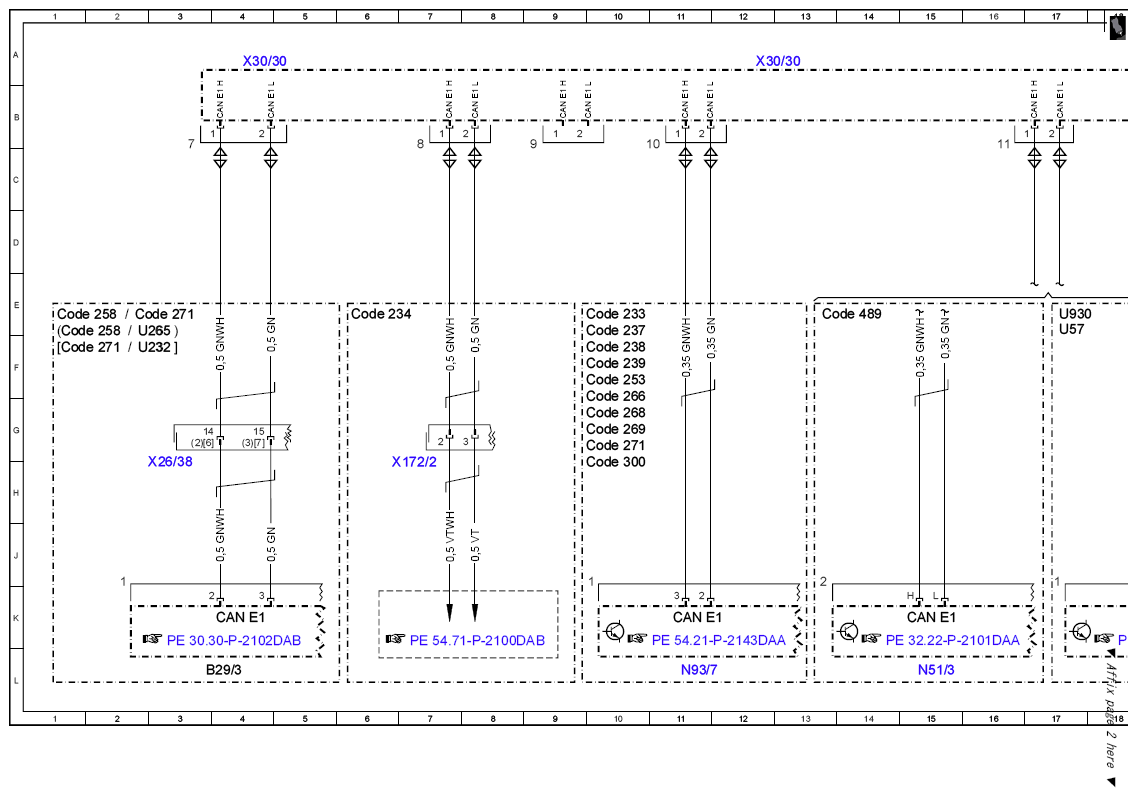

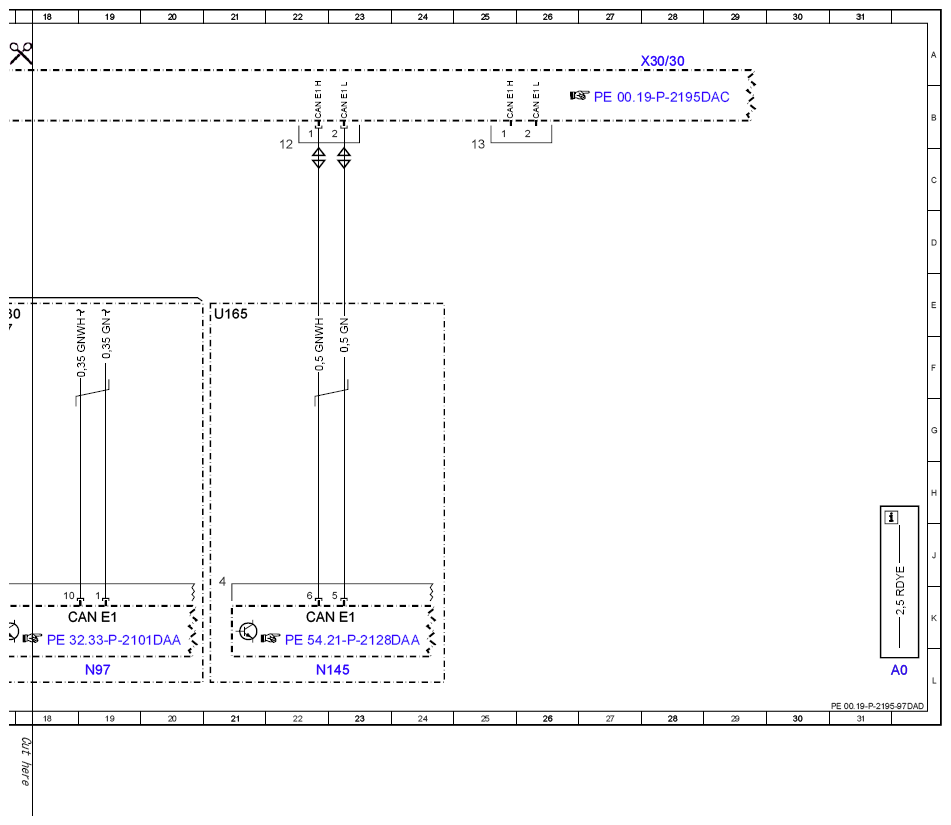

MODEL 212 as of model year 2014 Potential distributor X30/30, sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B29/3 | DISTRONIC sensor (DTR) / right front bumper | 4L |
| CAN E1 | Chassis CAN 1 | 4K |
| CAN E1 | Chassis CAN 1 | 11K |
| CAN E1 | Chassis CAN 1 | 15K |
| CAN E1 | Chassis CAN 1 | 19K |
| CAN E1 | Chassis CAN 1 | 22K |
| Code 233 | DISTRONIC PLUS | 9E |
| Code 234 | Blind spot assist | 6E |
| Code 237 | Active Blind Spot Assist | 9E |
| Code 238 | Active Lane Keeping Assist | 9F |
| Code 239 | DISTRONIC PRO | 9F |
| Code 253 | Rear-end collision warning and protection system | 9F |
| Code 258 | COLLISION PREVENTION ASSIST | 1E |
| Code 258 | COLLISION PREVENTION ASSIST | 1E |
| Code 266 | Steer Assist | 9G |
| Code 268 | Brake Assist System PLUS | 9G |
| Code 269 | Brake Assist System PLUS, cross-traffic (BAS+Q) | 9G |
| Code 271 | Autonomous intervention by the brake system / pedestrian protection | 2E |
| Code 271 | Autonomous intervention by the brake system / pedestrian protection | 1F |
| Code 271 | Autonomous intervention by the brake system / pedestrian protection | 9G |
| Code 300 | Collision mitigation (CMS) | 9H |
| Code 489 | AIRMATIC | 13E |
| N145 | Transmission mode control unit | 22L |
| N51/3 | AIRMATIC control unit | 15L |
| N93/7 | Chassis gateway control unit | 11L |
| N97 | Rear axle electronic level control unit | 19L |
| U165 | Valid for AMG | 21E |
| U232 | Valid for short range radar without active Park Assist | 2F |
| U265 | Not valid for pedestrian protection | 2E |
| U57 | Valid for model 212.2 | 17E |
| U930 | Valid for electronic level control with hydraulics | 17E |
| X172/2 | Rear bumper radar sensors electrical connector | 7H |
| X26/38 | Front bumper and frame wiring harness electrical connector | 3H |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 4A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 12A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 28A |
