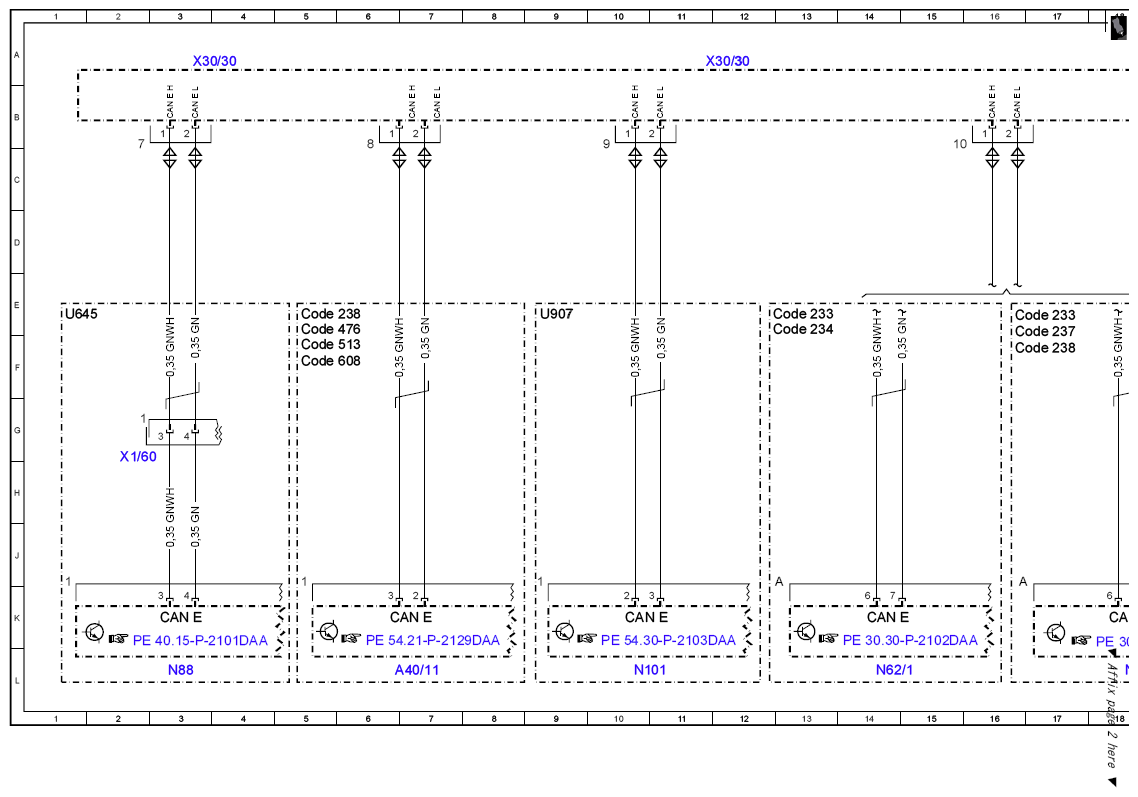

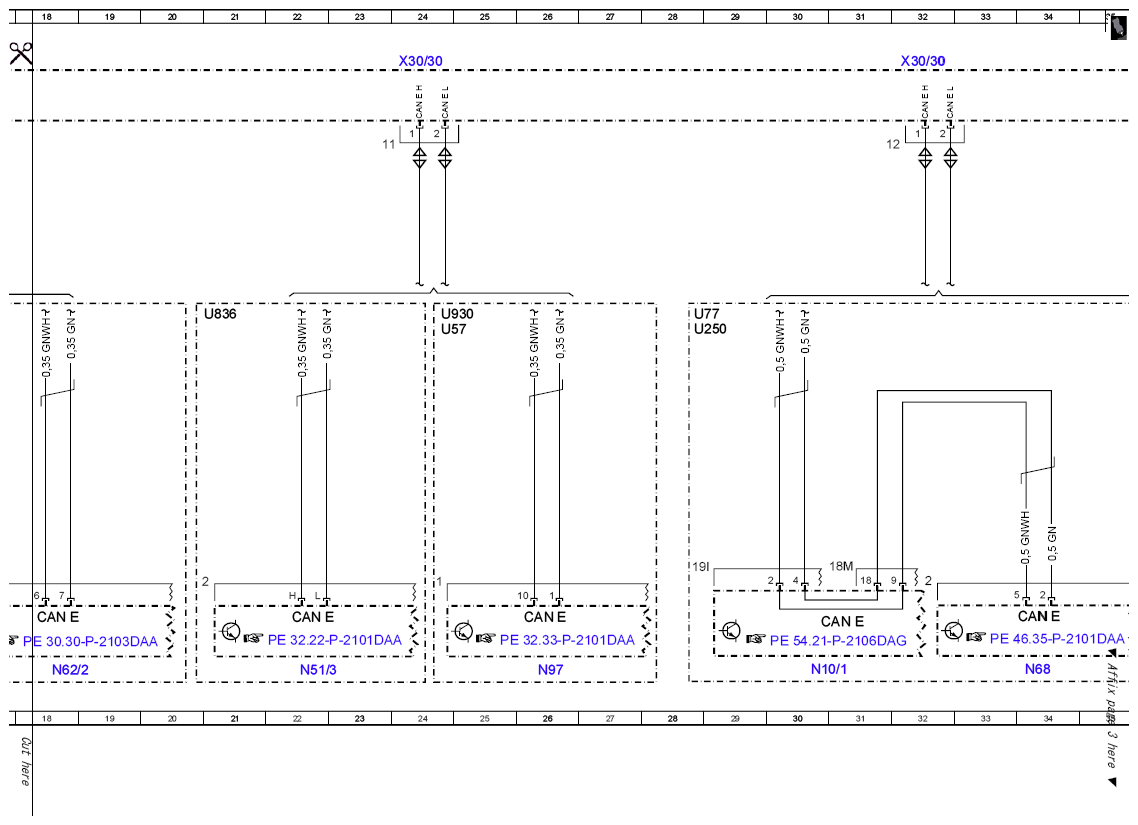

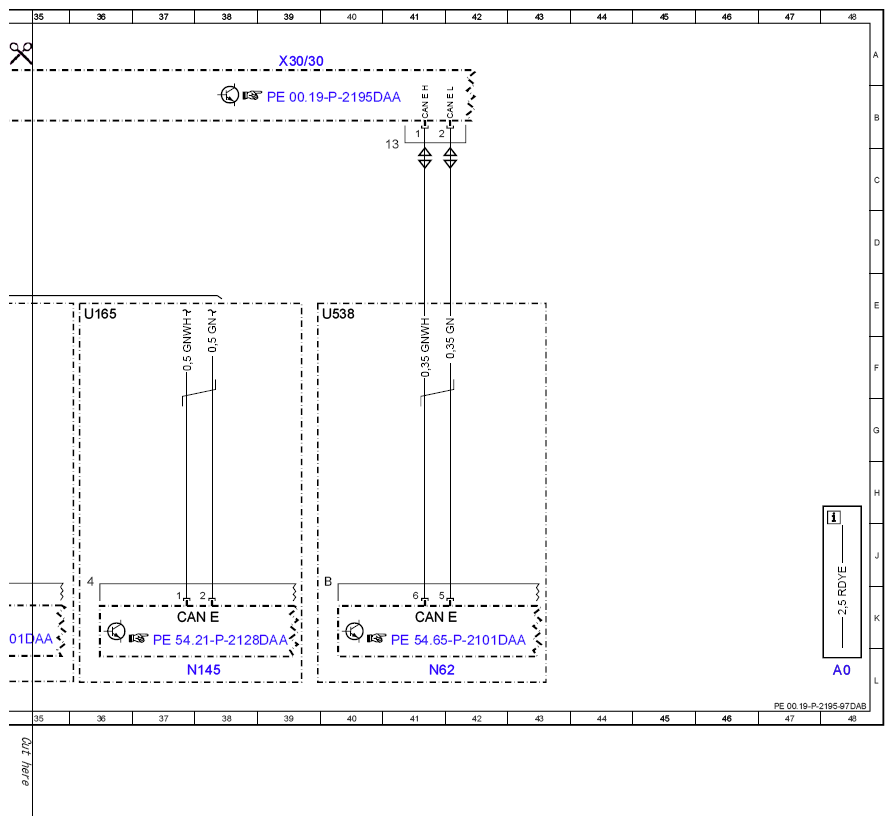

Wiring diagram of chassis CAN - PE00.19-P-2195-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to model year 2013 Potential distributor X30/30, sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A40/11 | Multifunction camera | 7L |
| CAN E | Chassis CAN | 3K |
| CAN E | Chassis CAN | 7K |
| CAN E | Chassis CAN | 14K |
| CAN E | Chassis CAN | 10K |
| CAN E | Chassis CAN | 22K |
| CAN E | Chassis CAN | 37K |
| CAN E | Chassis CAN | 31K |
| CAN E | Chassis CAN | 26K |
| CAN E | Chassis CAN | 34K |
| CAN E | Chassis CAN | 41K |
| CAN E | Chassis CAN | 18K |
| Code 233 | DISTRONIC PLUS | 12E |
| Code 233 | DISTRONIC PLUS | 16E |
| Code 234 | Blind spot assist | 12E |
| Code 237 | Active Blind Spot Assist | 16F |
| Code 238 | Active Lane Keeping Assist | 5E |
| Code 238 | Active Lane Keeping Assist | 16F |
| Code 476 | Automatic lane detection | 5E |
| Code 513 | Speed Limit Assist | 5F |
| Code 608 | Adaptive Highbeam Assist | 5F |
| N10/1 | Front SAM control unit with fuse and relay module | 30L |
| N101 | Night vision assist control unit | 10L |
| N145 | Transmission mode control unit | 38L |
| N51/3 | AIRMATIC control unit | 22L |
| N62 | Parking system control unit | 41L |
| N62/1 | Radar sensors control unit | 14L |
| N62/2 | Video and radar sensor system control unit | 18L |
| N68 | Electrical power steering control unit | 34L |
| N88 | Tire pressure monitor control unit | 3L |
| N97 | Rear axle electronic level control unit | 26L |
| U165 | Valid for AMG | 36E |
| U250 | Valid for electric power steering | 28E |
| U538 | Valid for PARKTRONIC | 40E |
| U57 | Valid for model 212.2 | 24E |
| U645 | Valid for tire pressure monitor | 1E |
| U77 | Valid for speed-sensitive power steering | 28E |
| U836 | Valid for AIRMATIC | 21E |
| U907 | Valid for Night View Assist | 9E |
| U930 | Valid for electronic level control with hydraulics | 24E |
| X1/60 | Tire pressure monitor electrical connector | 2H |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 3A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 12A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 24A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 32A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 39A |
