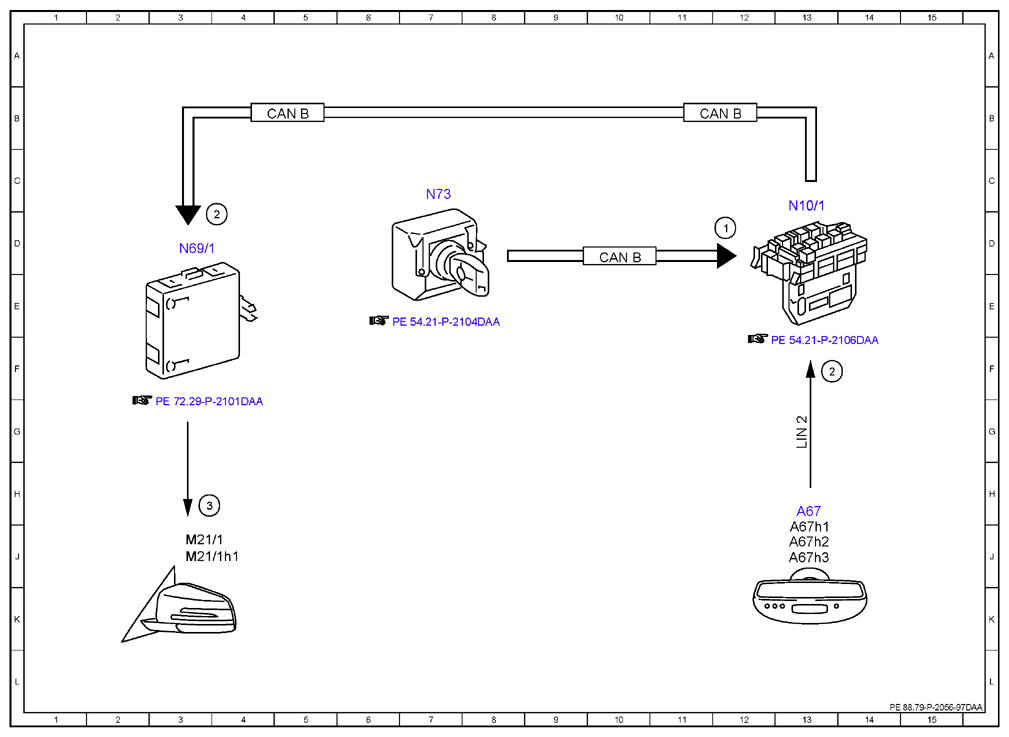

Electrical function schematic for automatic dimming mirror - PE88.79-P-2056-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror (driver)) without CODE 494 (US version)
MODEL 212 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror including fold-in outside mirrors) with CODE 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12D |
| 2 | Mirror dimming, request | 4D |
| 2 | Mirror dimming, request | 13F |
| 3 | Mirror dimming, actuation | 3H |
| A67 | Inside rearview mirror | 13H |
| A67h1 | Forward automatic dimming mirror light sensor | 13J |
| A67h2 | Rearward automatic dimming mirror light sensor | 13J |
| A67h3 | Automatic dimming mirror | 13J |
| CAN B | Interior CAN | 5B |
| CAN B | Interior CAN | 11B |
| CAN B | Interior CAN | 10D |
| LIN 2 | Wiper/inside rearview mirror LIN | 13G |
| M21/1 | Left outside mirror | 3J |
| M21/1h1 | Automatic dimming mirror | 3J |
| N10/1 | Front SAM control unit with fuse and relay module | 13C |
| N69/1 | Left front door control unit | 3D |
| N73 | Electronic ignition switch control unit | 7C |
