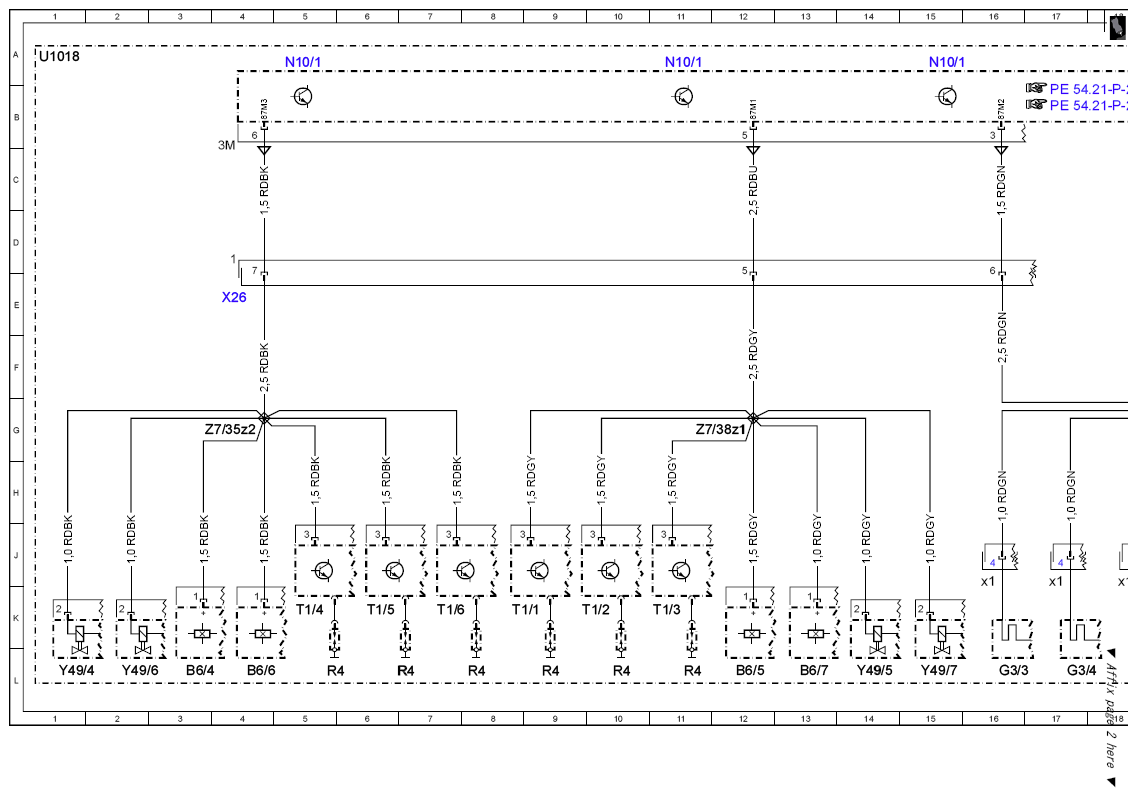

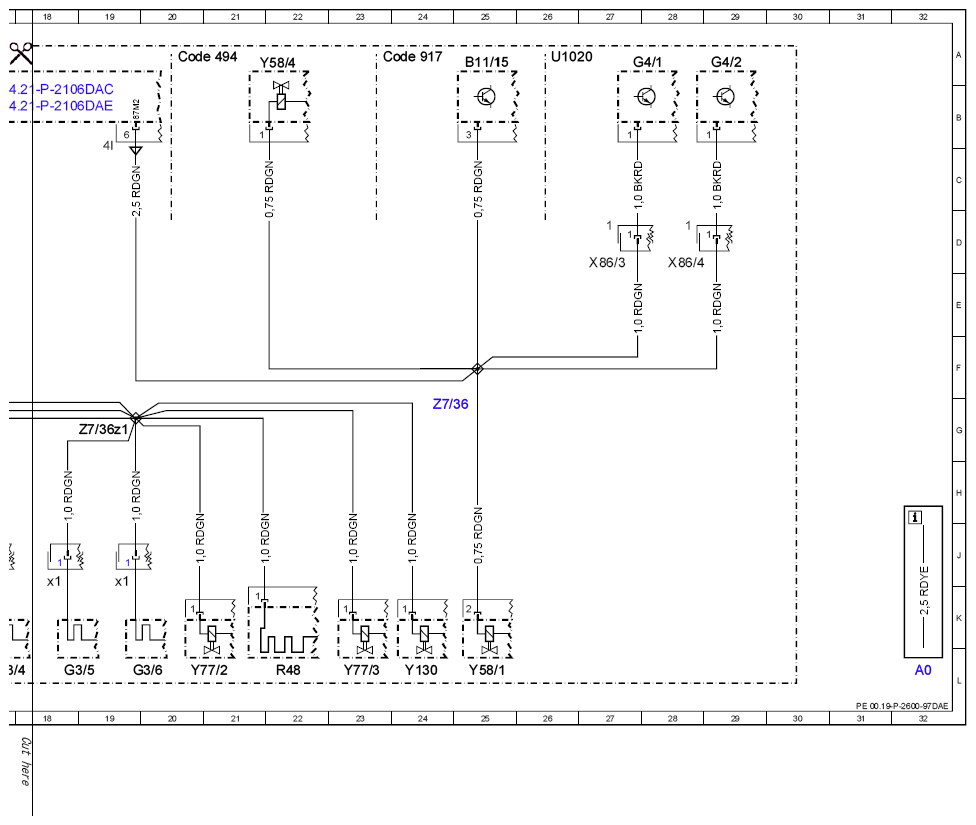

Wiring diagram of soldered points / Z connector sleeves - PE00.19-P-2600-97DAE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 Z7/35z2 (M 276), Z7/36 (M 276), Z7/36z1 (M 276), Z7/38z1 (M 276
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B11/15 | Radiator sensor for engine diagnosis | 25A |
| B6/4 | Left intake camshaft Hall sensor | 3L |
| B6/5 | Right intake camshaft Hall sensor | 12L |
| B6/6 | Left exhaust camshaft Hall sensor | 4L |
| B6/7 | Right exhaust camshaft Hall sensor | 13L |
| Code 494 | USA version | 20A |
| Code 917 | PZEV emission USA | 23A |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 16L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 16J |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 17L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 17J |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 18L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 18J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 19L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 19J |
| G4/1 | Left NOx sensor | 27A |
| G4/2 | Right NOx sensor | 29A |
| N10/1 | Front SAM control unit with fuse and relay module | 5A |
| N10/1 | Front SAM control unit with fuse and relay module | 11A |
| N10/1 | Front SAM control unit with fuse and relay module | 15A |
| R4 | Spark plugs | 5L |
| R4 | Spark plugs | 7L |
| R4 | Spark plugs | 8L |
| R4 | Spark plugs | 9L |
| R4 | Spark plugs | 11L |
| R4 | Spark plugs | 10L |
| R48 | Coolant thermostat heating element | 22L |
| T1/1 | Cylinder 1 ignition coil | 8K |
| T1/2 | Cylinder 2 ignition coil | 10K |
| T1/3 | Cylinder 3 ignition coil | 11K |
| T1/4 | Cylinder 4 ignition coil | 5K |
| T1/5 | Cylinder 5 ignition coil | 6K |
| T1/6 | Cylinder 6 ignition coil | 7K |
| U1018 | Valid for gasoline engine 276 | 1A |
| U1020 | Valid for gasoline engine with stratified operation | 26A |
| X26 | Interior and engine wiring harness electrical connector | 4E |
| Y130 | Engine oil pump valve | 24L |
| Y49/4 | Left intake camshaft solenoid | 1L |
| Y49/5 | Right intake camshaft solenoid | 14L |
| Y49/6 | Left exhaust camshaft solenoid | 2L |
| Y49/7 | Right exhaust camshaft solenoid | 15L |
| Y58/1 | Purge control valve | 25L |
| Y58/4 | Activated charcoal filter shutoff valve | 22A |
| Y77/2 | Intake manifold resonance flap switchover valve | 20L |
| Y77/3 | Intake manifold selector drum switchover valve | 23L |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 4G |
| Z7/36 | Circuit 87 M2e connector sleeve | 24G |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 19G |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 12G |
