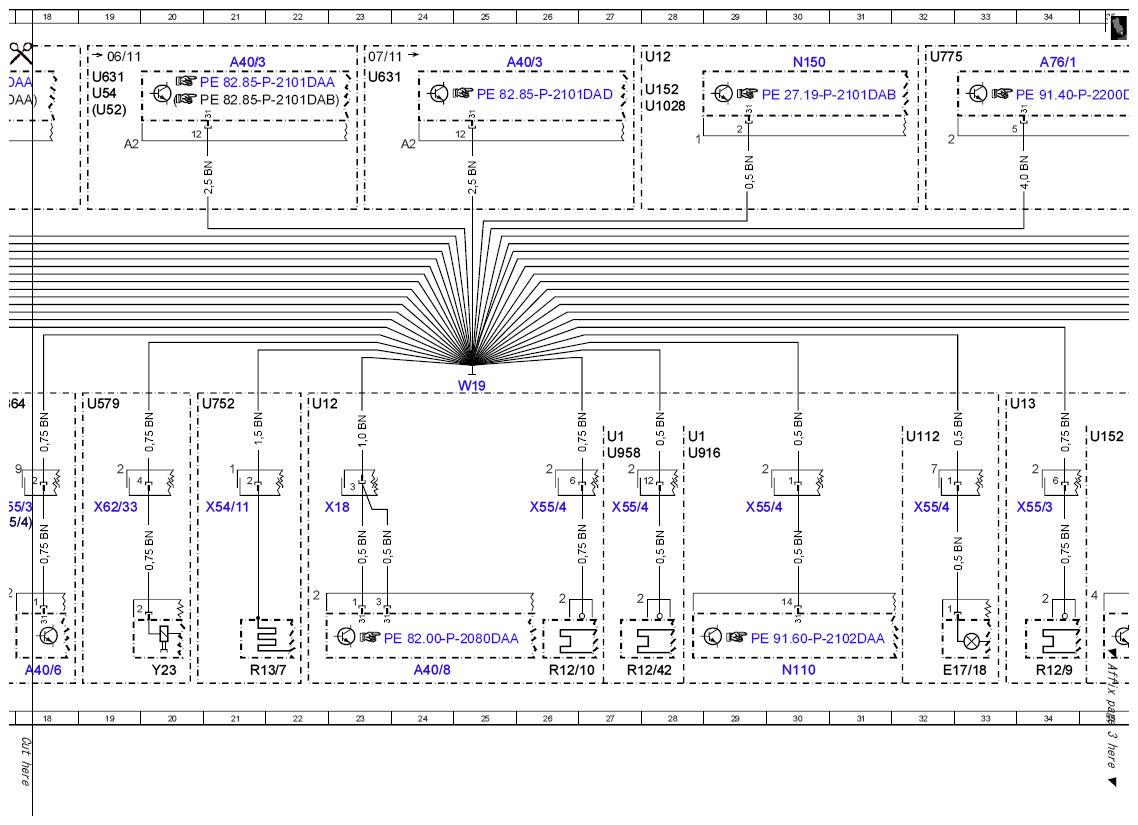

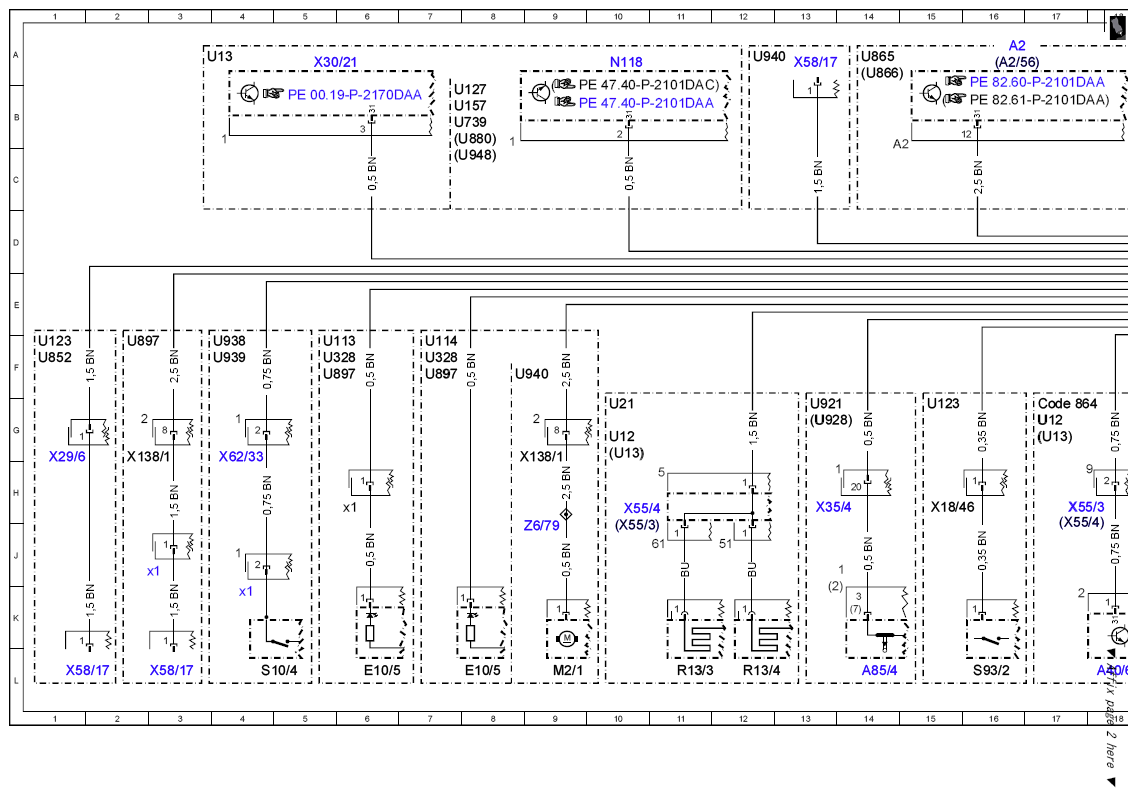

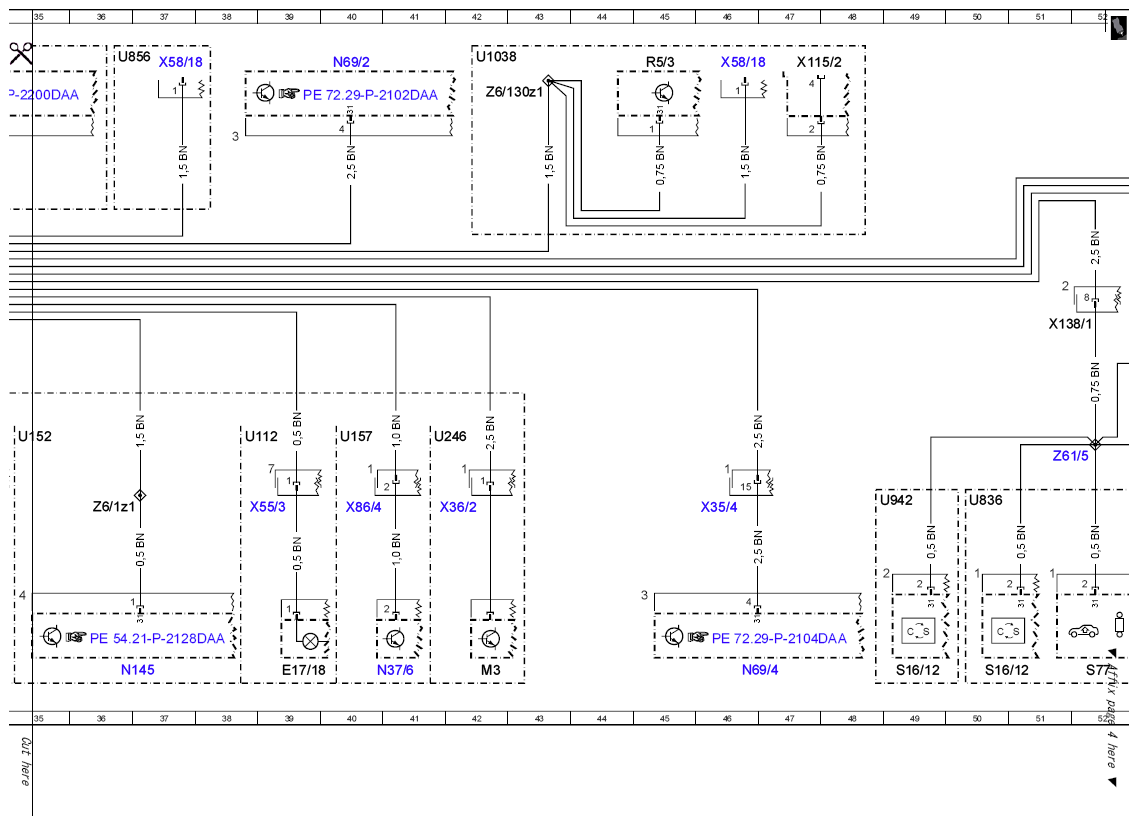

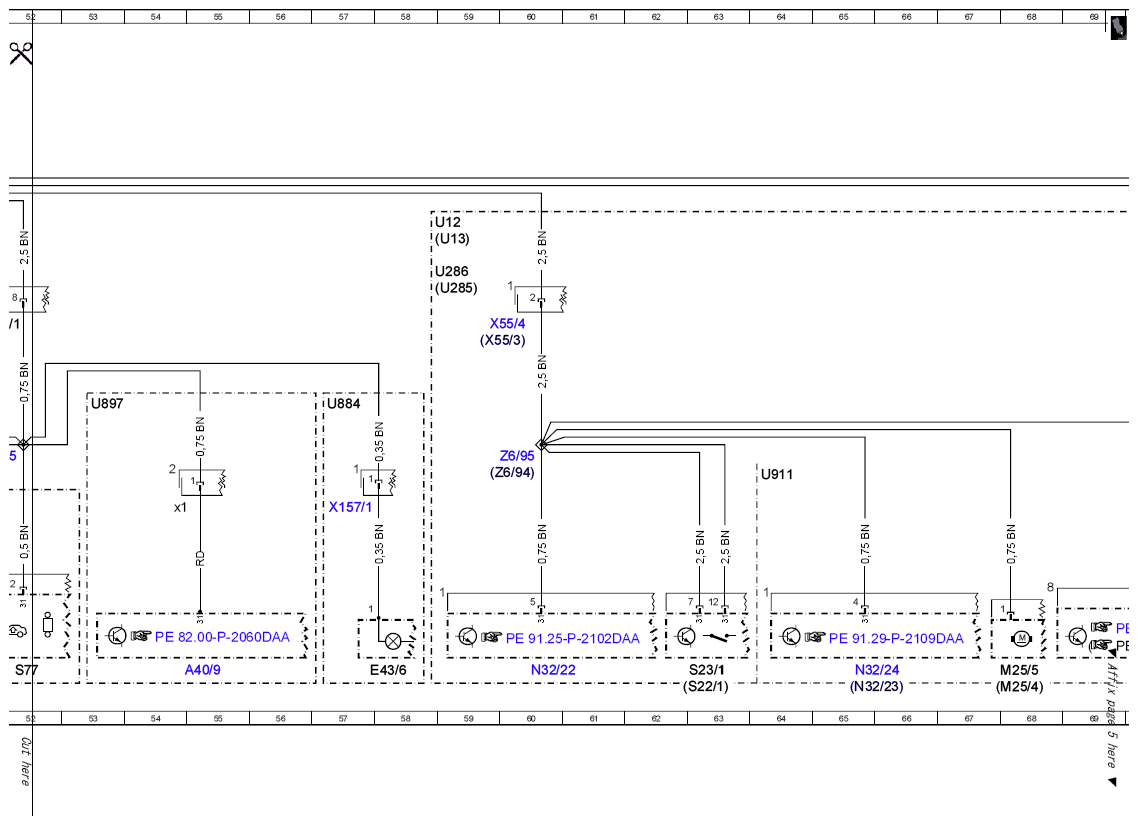

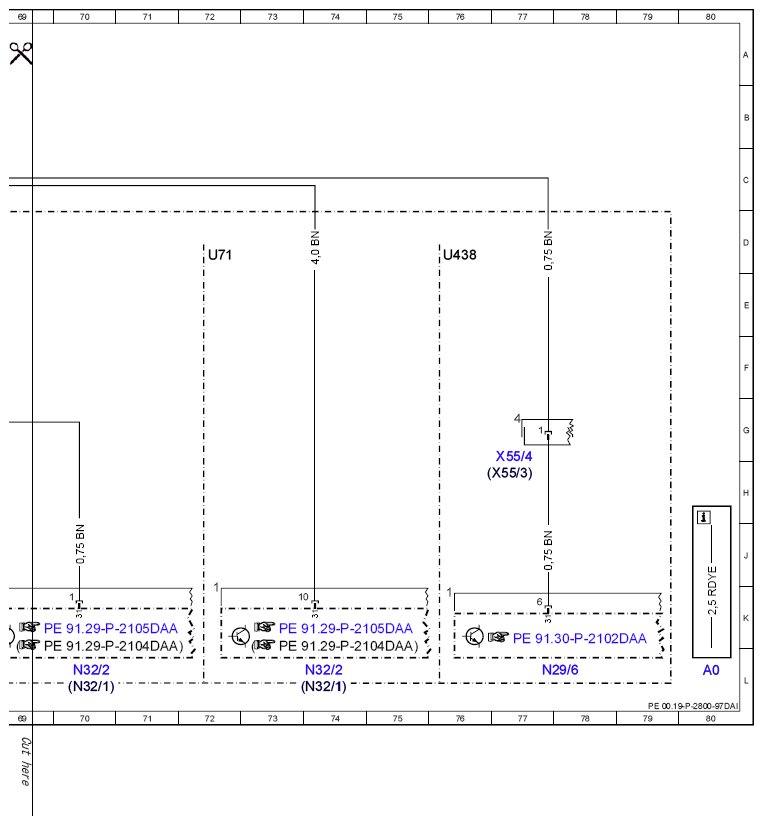

Wiring diagram of ground cabling - PE00.19-P-2800-97DAI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 W19
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A2 | Radio | 16A |
| A2/56 | Radio with auto pilot system | 16A |
| A40/3 | COMAND control unit | 21A |
| A40/3 | COMAND control unit | 25A |
| A40/6 | Right rear display | 18L |
| A40/8 | Audio/COMAND display | 24L |
| A40/9 | Audio/COMAND control panel | 55L |
| A40/9x1 | Audio/COMAND control panel electrical connector | 54H |
| A76/1 | Right front reversible emergency tensioning retractor | 34A |
| A85/4 | Right rear door lock | 14L |
| Code 864 | Rear compartment entertainment | 17G |
| E10/5 | Rear air outlet symbol illumination | 8L |
| E10/5 | Rear air outlet symbol illumination | 6L |
| E10/5x1 | Rear vent symbol illumination electrical connector | 6H |
| E17/18 | Right rear footwell lamp | 33L |
| E17/18 | Right rear footwell lamp | 39L |
| E43/6 | Center console ambiance illumination | 58L |
| M2/1 | Rear blower motor | 9L |
| M25/4 | Driver seat lumbar support pneumatic pump | 68L |
| M25/5 | Front passenger seat lumbar support pneumatic pump | 68L |
| M3 | Fuel pump (FP) | 42L |
| N110 | Weight Sensing System (WSS) control unit | 30L |
| N118 | Fuel pump control unit | 10A |
| N145 | Transmission mode control unit | 36L |
| N150 | DIRECT SELECT INTERFACE | 30A |
| N29/6 | Right front seat ventilation blower regulator | 77L |
| N32/1 | Driver seat control unit | 70L |
| N32/1 | Driver seat control unit | 74L |
| N32/2 | Front passenger seat control unit | 74L |
| N32/2 | Front passenger seat control unit | 70L |
| N32/22 | Right front dynamic multicontour seat control unit | 60L |
| N32/23 | Driver seat lumbar support adjustment control unit | 65L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 65L |
| N37/6 | Right NOx sensor control unit | 41L |
| N69/2 | Right front door control unit | 40A |
| N69/4 | Right rear door control unit | 46L |
| R12/10 | Front passenger sidebag squib | 26L |
| R12/42 | Front passenger pelvis airbag squib | 27L |
| R12/9 | Driver sidebag squib | 34L |
| R13/3 | Right front seat sitting surface heated cushion | 11L |
| R13/4 | Right front backrest heated cushion | 12L |
| R13/7 | Right rear seat sitting surface heated cushion | 21L |
| R5/3 | Rear cup holder | 45A |
| S10/4 | Right rear brake wear sensor | 4L |
| S10/4x1 | Right rear brake wear sensor electrical connector | 4K |
| S16/12 | Automatic transmission mode button | 49L |
| S16/12 | Automatic transmission mode button | 50L |
| S22/1 | Driver seat partially electric seat adjustment switch | 63L |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 63L |
| S77 | Suspension button group | 52L |
| S93/2 | Two-way radio switch | 16L |
| U1 | Valid for USA | 28G |
| U1 | Valid for USA | 27G |
| U1028 | Valid for engine 157 | 28B |
| U1038 | Valid for vehicle model designation 212.1 | 42A |
| U112 | Valid for footwell lamps | 32G |
| U112 | Valid for footwell lamps | 38G |
| U113 | Valid for 2-zone THERMATIC | 5F |
| U114 | Valid for 3-zone THERMOTRONIC | 7F |
| U12 | Valid for left-hand drive vehicles | 10G |
| U12 | Valid for left-hand drive vehicles | 22G |
| U12 | Valid for left-hand drive vehicles | 28A |
| U12 | Valid for left-hand drive vehicles | 58D |
| U12 | Valid for left-hand drive vehicles | 17G |
| U123 | Valid for taxi electrical system | 15G |
| U123 | Valid for taxi electrical system | 1F |
| U127 | Valid for combustion engines 272 and 273 KE | 7B |
| U13 | Valid for right-hand drive vehicles | 10G |
| U13 | Valid for right-hand drive vehicles | 33G |
| U13 | Valid for right-hand drive vehicles | 3A |
| U13 | Valid for right-hand drive vehicles | 58D |
| U13 | Valid for right-hand drive vehicles | 17G |
| U152 | Valid for gasoline engine 156 | 35G |
| U152 | Valid for gasoline engine 156 | 28B |
| U157 | Valid for combustion engine 272 DE | 40G |
| U157 | Valid for combustion engine 272 DE | 7B |
| U21 | Valid for heated seats | 10G |
| U246 | Valid without fuel system control unit | 41G |
| U285 | Valid for partially electric driver seat adjustment | 58E |
| U286 | Valid for partially electric front passenger seat adjustment | 58E |
| U328 | Valid for air outlet symbol illumination | 5F |
| U328 | Valid for air outlet symbol illumination | 7F |
| U438 | Valid for seat ventilation | 76D |
| U52 | Valid for Japan | 19B |
| U54 | Valid for all except Japan | 19B |
| U579 | Valid for stationary heater | 19G |
| U631 | Valid for COMAND | 19A |
| U631 | Valid for COMAND | 23A |
| U71 | Valid for fully electric seat adjustment with memory function | 72D |
| U739 | Valid for gasoline engine 271 DE | 7B |
| U752 | Valid for rear heated seats | 20G |
| U775 | Valid for emergency tensioning retractor | 32A |
| U836 | Valid for AIRMATIC | 50H |
| U852 | Valid for versions without active subwoofer | 1F |
| U856 | Valid for rear socket | 36A |
| U865 | Valid for Audio 20 | 14A |
| U866 | Valid for Audio 50 | 14A |
| U880 | Valid for diesel engine 642 | 7B |
| U884 | Valid for ambiance illumination | 57G |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 7F |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 5F |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 2F |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 53G |
| U911 | Valid for lumbar support | 64H |
| U916 | Valid for weight sensing system (WSS) | 28G |
| U921 | Not valid for England | 13G |
| U928 | Valid for England | 13G |
| U938 | Valid for ESP Basic | 4F |
| U939 | Valid for ESP Premium | 4F |
| U940 | Valid without DIRECT SELECT | 8F |
| U940 | Valid without DIRECT SELECT | 12A |
| U942 | Valid without AIRMATIC | 48H |
| U948 | Valid for diesel engine 651 | 7C |
| U958 | Valid for pelvis airbag | 27G |
| W19 | Right front seat crossmember ground point | 25F |
| X115/2 | Rear USB electrical connector | 47A |
| X138/1 | Front center console electrical connector | 3H |
| X138/1 | Front center console electrical connector | 9H |
| X138/1 | Front center console electrical connector | 51E |
| X157/1 | Center console ambiance illumination electrical connector | 57H |
| X18 | Vehicle interior and harness for taillamp electrical connector | 23H |
| X18/46 | Voice control system electrical connector | 15H |
| X29/6 | Center console electrical connector | 1H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 5A |
| X35/4 | Right rear door electrical connector | 13H |
| X35/4 | Right rear door electrical connector | 46H |
| X36/2 | Fuel pump and vehicle rear wiring harness electrical connector | 42H |
| X54/11 | Left and right rear seat heater heated cushion electrical connector | 21H |
| X55/3 | Driver seat connector block | 10J |
| X55/3 | Driver seat connector block | 18H |
| X55/3 | Driver seat connector block | 34H |
| X55/3 | Driver seat connector block | 39H |
| X55/3 | Driver seat connector block | 77H |
| X55/3 | Driver seat connector block | 60F |
| X55/4 | Front passenger seat connector block | 10H |
| X55/4 | Front passenger seat connector block | 26H |
| X55/4 | Front passenger seat connector block | 27H |
| X55/4 | Front passenger seat connector block | 29H |
| X55/4 | Front passenger seat connector block | 32H |
| X55/4 | Front passenger seat connector block | 77G |
| X55/4 | Front passenger seat connector block | 60E |
| X55/4 | Front passenger seat connector block | 17J |
| X58/17 | Front vehicle interior power outlet | 3L |
| X58/17 | Front vehicle interior power outlet | 1L |
| X58/17 | Front vehicle interior power outlet | 13A |
| X58/17x1 | Electrical connector / front vehicle interior socket | 3J |
| X58/18 | Rear center console power outlet | 37A |
| X58/18 | Rear center console power outlet | 46A |
| X62/33 | Rear axle electrical connector, right distributor | 4H |
| X62/33 | Rear axle electrical connector, right distributor | 19H |
| X86/4 | Right nitrogen oxides control unit electrical connector | 40H |
| Y23 | Stationary heater fuel pump | 20L |
| Z6/130z1 | Rear center console terminal 31 connector sleeve | 43B |
| Z6/1z1 | Circuit 31 connector sleeve | 36H |
| Z6/79 | Front center console circuit 31 connector sleeve | 9J |
| Z6/94 | Driver seat circuit 31 connector sleeve | 60H |
| Z6/95 | Front passenger seat circuit 31 connector sleeve | 60G |
| Z61/5 | Center console wiring harness circuit 31 connector sleeve | 52G |
