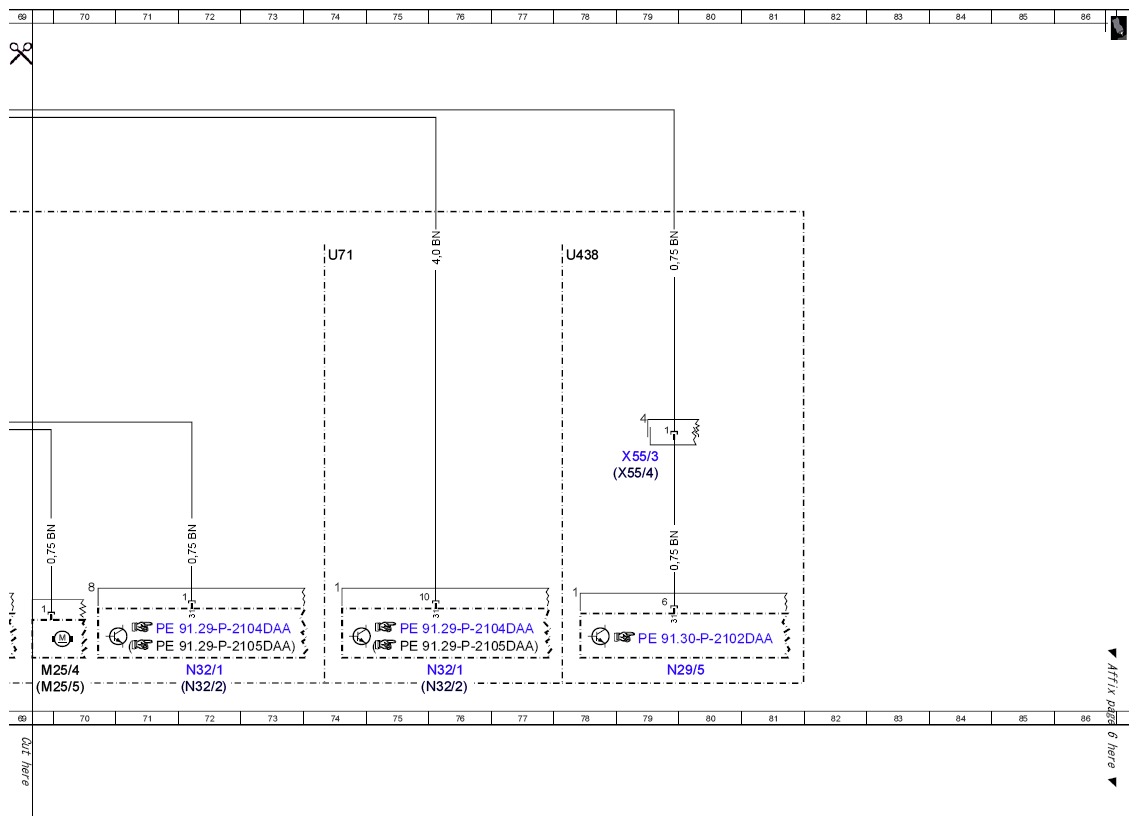

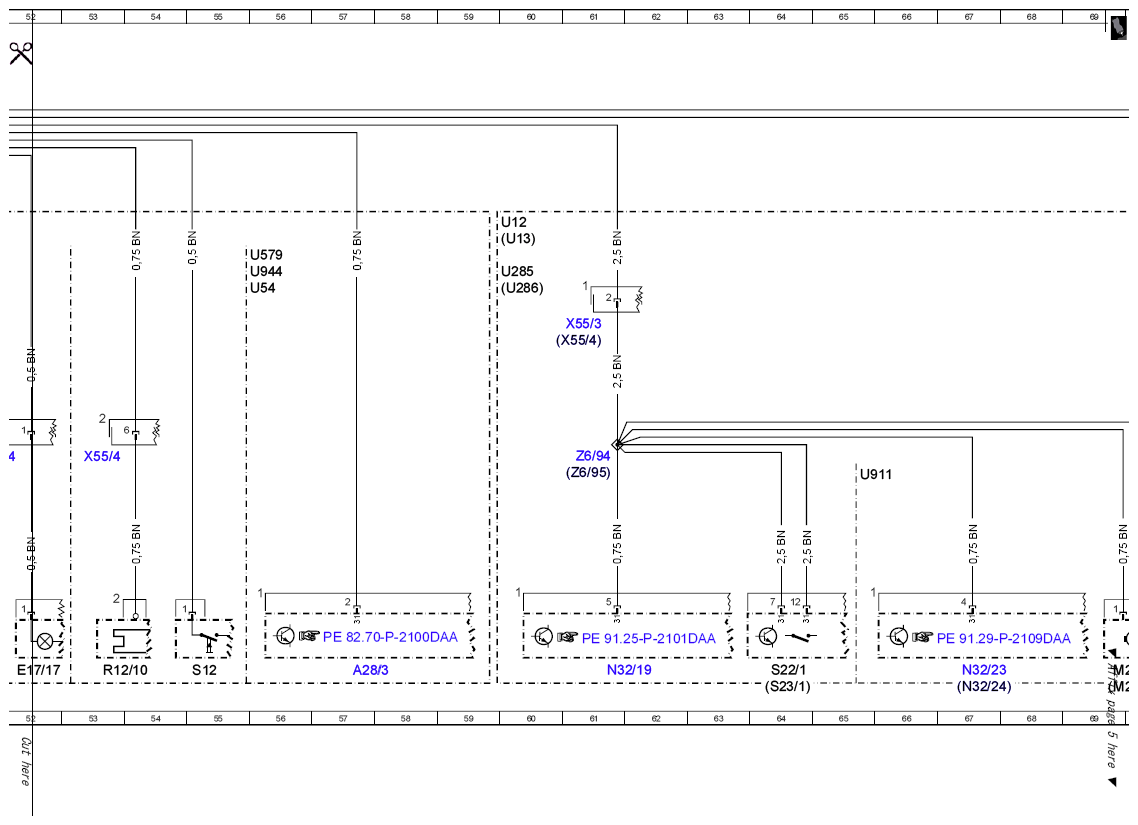

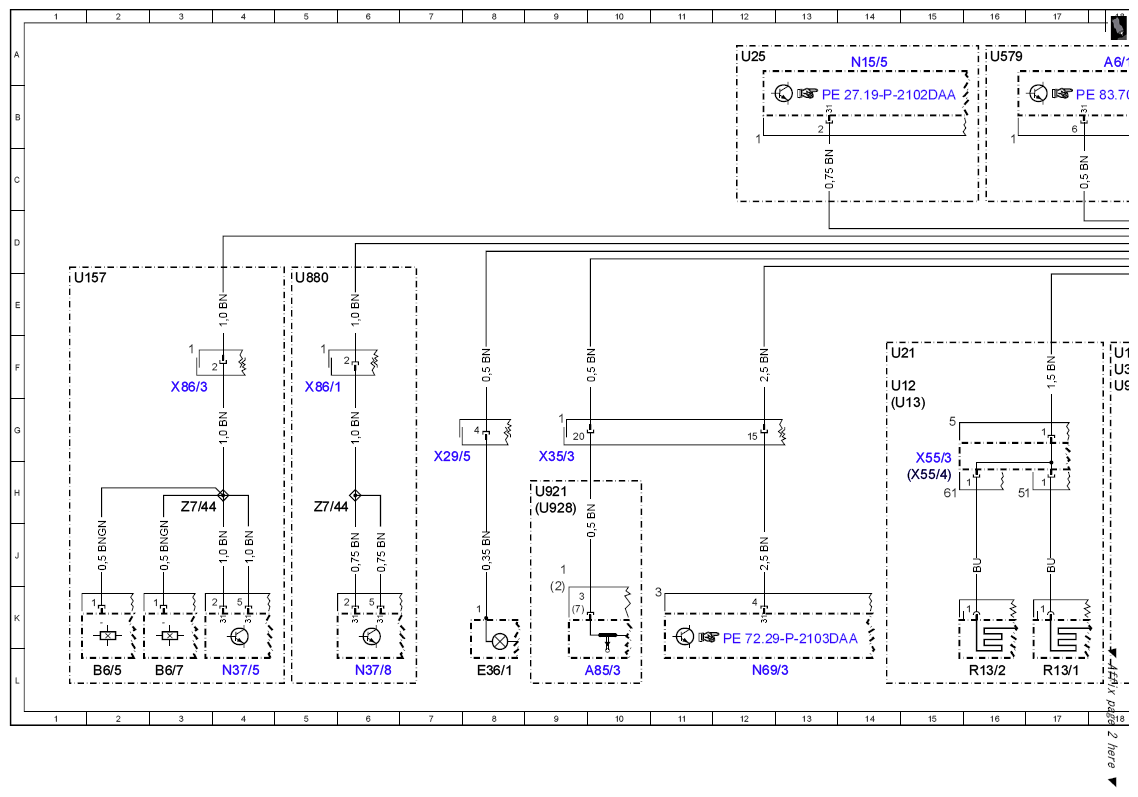

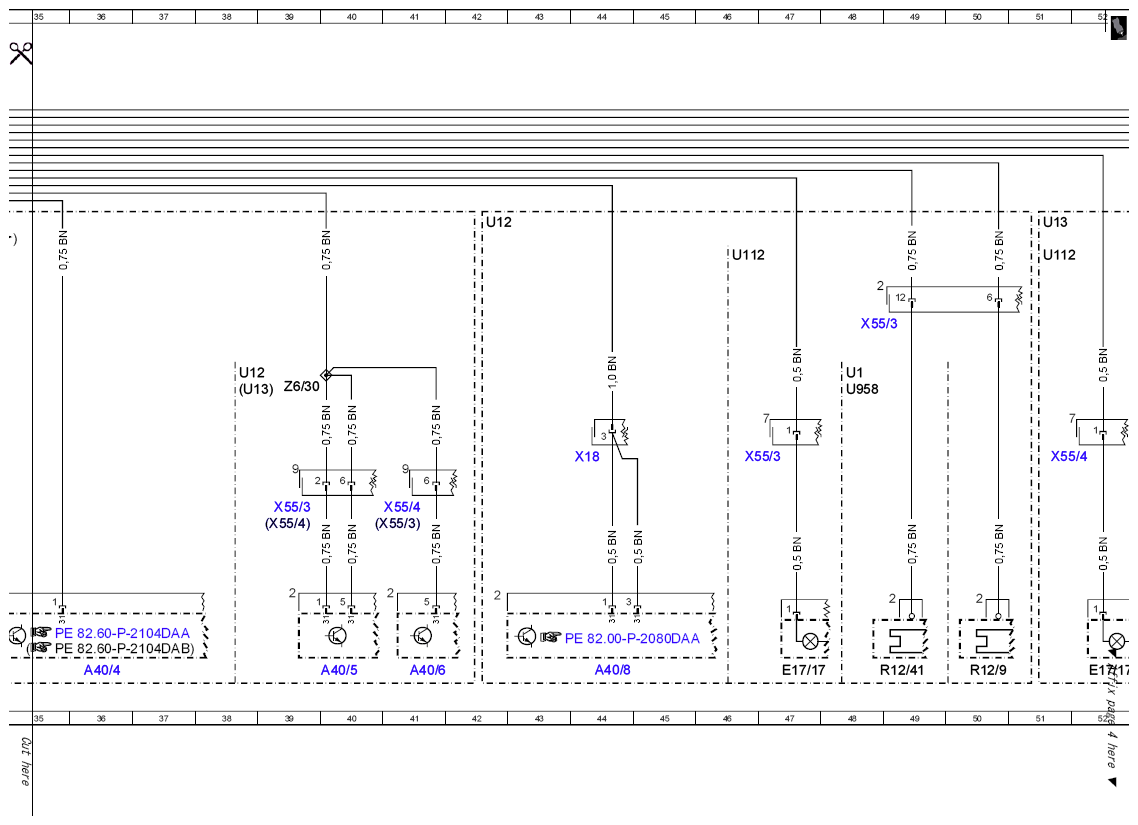

Wiring diagram of ground cabling - PE00.19-P-2800-97DAH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 W18
| Code: | Designation: | Position: |
|---|---|---|

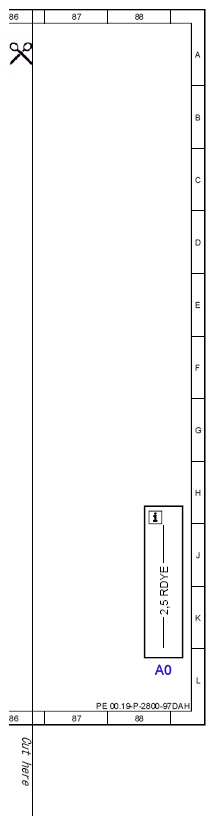

| A0 | Color code key | 88L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 57L |
| A40/4 | DVD player | 36L |
| A40/5 | Left rear display | 40L |
| A40/6 | Right rear display | 41L |
| A40/8 | Audio/COMAND display | 44L |
| A6/1 | Stationary heater radio remote control receiver | 18A |
| A76 | Left front reversible emergency tensioning retractor | 22A |
| A85/3 | Left rear door lock | 10L |
| B4/31 | Fuel quality sensor | 21L |
| B6/5 | Right intake camshaft Hall sensor | 2L |
| B6/7 | Right exhaust camshaft Hall sensor | 3L |
| Code 460 | Canada version | 28F |
| Code 494 | USA version | 28F |
| Code 864 | Rear compartment entertainment | 32D |
| Code 864 | Rear compartment entertainment | 32D |
| Code 929 | Engine for ethanol fuel | 20F |
| E10/5 | Rear air outlet symbol illumination | 23L |
| E10/5 | Rear air outlet symbol illumination | 19L |
| E10/5x1 | Rear vent symbol illumination electrical connector | 19H |
| E17/17 | Left rear footwell lamp | 47L |
| E17/17 | Left rear footwell lamp | 52L |
| E36/1 | Center console armrest stowage compartment switch and controls illumination | 8L |
| M2/1 | Rear blower motor | 25L |
| M25/4 | Driver seat lumbar support pneumatic pump | 69L |
| M25/5 | Front passenger seat lumbar support pneumatic pump | 69L |
| N15/5 | Electronic selector lever module control unit | 14A |
| N29/5 | Left front seat ventilation blower regulator | 79L |
| N32/1 | Driver seat control unit | 72L |
| N32/1 | Driver seat control unit | 76L |
| N32/19 | Left front dynamic multicontour seat control unit | 61L |
| N32/2 | Front passenger seat control unit | 72L |
| N32/2 | Front passenger seat control unit | 76L |
| N32/23 | Driver seat lumbar support adjustment control unit | 67L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 67L |
| N37/5 | Left nitrogen oxides control unit | 4L |
| N37/8 | Nitrogen oxides control unit downstream of SCR catalytic converter | 6L |
| N69/3 | Left rear door control unit | 12L |
| N74 | Soot particulate sensor control unit | 30L |
| R12/10 | Front passenger sidebag squib | 53L |
| R12/41 | Driver pelvis airbag squib | 49L |
| R12/9 | Driver sidebag squib | 50L |
| R13/1 | Left front seat sitting surface heated cushion | 17L |
| R13/2 | Left front backrest heated cushion | 16L |
| S12 | Parking brake indicator switch | 55L |
| S22/1 | Driver seat partially electric seat adjustment switch | 64L |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 64L |
| U1 | Valid for USA | 48F |
| U112 | Valid for footwell lamps | 46D |
| U112 | Valid for footwell lamps | 51D |
| U113 | Valid for 2-zone THERMATIC | 18F |
| U114 | Valid for 3-zone THERMOTRONIC | 22F |
| U12 | Valid for left-hand drive vehicles | 14F |
| U12 | Valid for left-hand drive vehicles | 42D |
| U12 | Valid for left-hand drive vehicles | 60D |
| U12 | Valid for left-hand drive vehicles | 38F |
| U13 | Valid for right-hand drive vehicles | 14G |
| U13 | Valid for right-hand drive vehicles | 51D |
| U13 | Valid for right-hand drive vehicles | 60D |
| U13 | Valid for right-hand drive vehicles | 38F |
| U157 | Valid for combustion engine 272 DE | 1E |
| U21 | Valid for heated seats | 14F |
| U25 | Valid for automatic transmission | 12A |
| U285 | Valid for partially electric driver seat adjustment | 60E |
| U286 | Valid for partially electric front passenger seat adjustment | 60E |
| U328 | Valid for air outlet symbol illumination | 18F |
| U328 | Valid for air outlet symbol illumination | 22F |
| U438 | Valid for seat ventilation | 78D |
| U54 | Valid for all except Japan | 56E |
| U579 | Valid for stationary heater | 16A |
| U579 | Valid for stationary heater | 56D |
| U71 | Valid for fully electric seat adjustment with memory function | 74D |
| U775 | Valid for emergency tensioning retractor | 20A |
| U880 | Valid for diesel engine 642 | 5E |
| U880 | Valid for diesel engine 642 | 28F |
| U911 | Valid for lumbar support | 65H |
| U921 | Not valid for England | 9H |
| U928 | Valid for England | 9H |
| U940 | Valid without DIRECT SELECT | 24F |
| U940 | Valid without DIRECT SELECT | 22F |
| U940 | Valid without DIRECT SELECT | 18F |
| U944 | Valid for comfort telephony with compensator | 56E |
| U948 | Valid for diesel engine 651 | 28G |
| U958 | Valid for pelvis airbag | 48F |

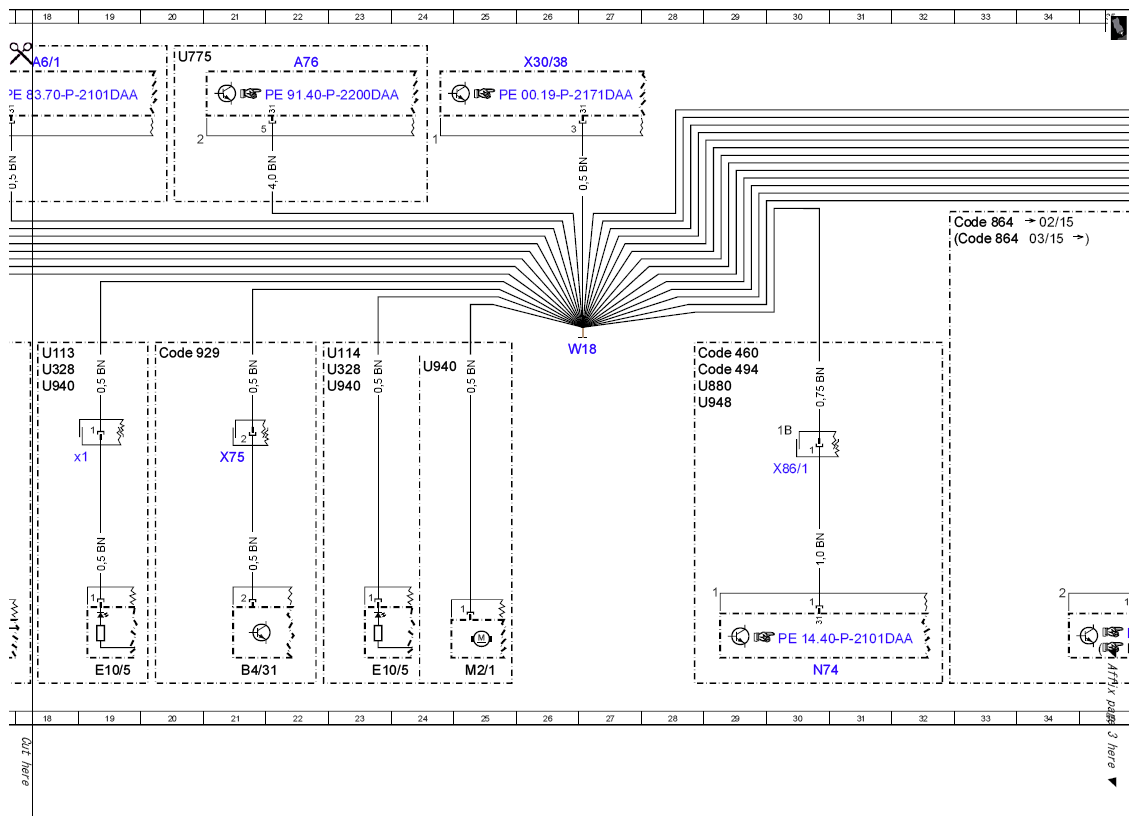

| W18 | Left front seat crossmember ground point | 26F |
| X18 | Vehicle interior and harness for taillamp electrical connector | 44H |
| X29/5 | Armrest stowage compartment illumination electrical connector | 7G |
| X30/38 | Potential distributor electrical connector (CAN I) | 26A |
| X35/3 | Left rear door electrical connector | 9G |
| X55/3 | Driver seat connector block | 15H |
| X55/3 | Driver seat connector block | 39H |
| X55/3 | Driver seat connector block | 47G |
| X55/3 | Driver seat connector block | 48E |
| X55/3 | Driver seat connector block | 79G |
| X55/3 | Driver seat connector block | 61E |
| X55/3 | Driver seat connector block | 41J |
| X55/4 | Front passenger seat connector block | 15H |
| X55/4 | Front passenger seat connector block | 41H |
| X55/4 | Front passenger seat connector block | 53G |
| X55/4 | Front passenger seat connector block | 51G |
| X55/4 | Front passenger seat connector block | 79H |
| X55/4 | Front passenger seat connector block | 61F |
| X55/4 | Front passenger seat connector block | 39J |
| X75 | Fuel quality sensor electrical connector | 21H |
| X86/1 | Nitrogen oxides control unit electrical connector | 5F |
| X86/3 | Nitrogen oxides control unit electrical connector | 3F |
| Z6/30 | ME-SFI [ME] diagnosis connector sleeve | 39F |
| Z6/94 | Driver seat circuit 31 connector sleeve | 61G |
| Z6/95 | Front passenger seat circuit 31 connector sleeve | 61H |
| Z7/44 | Sensor ground connector sleeve | 3H |
| Z7/44 | Sensor ground connector sleeve | 5H |
