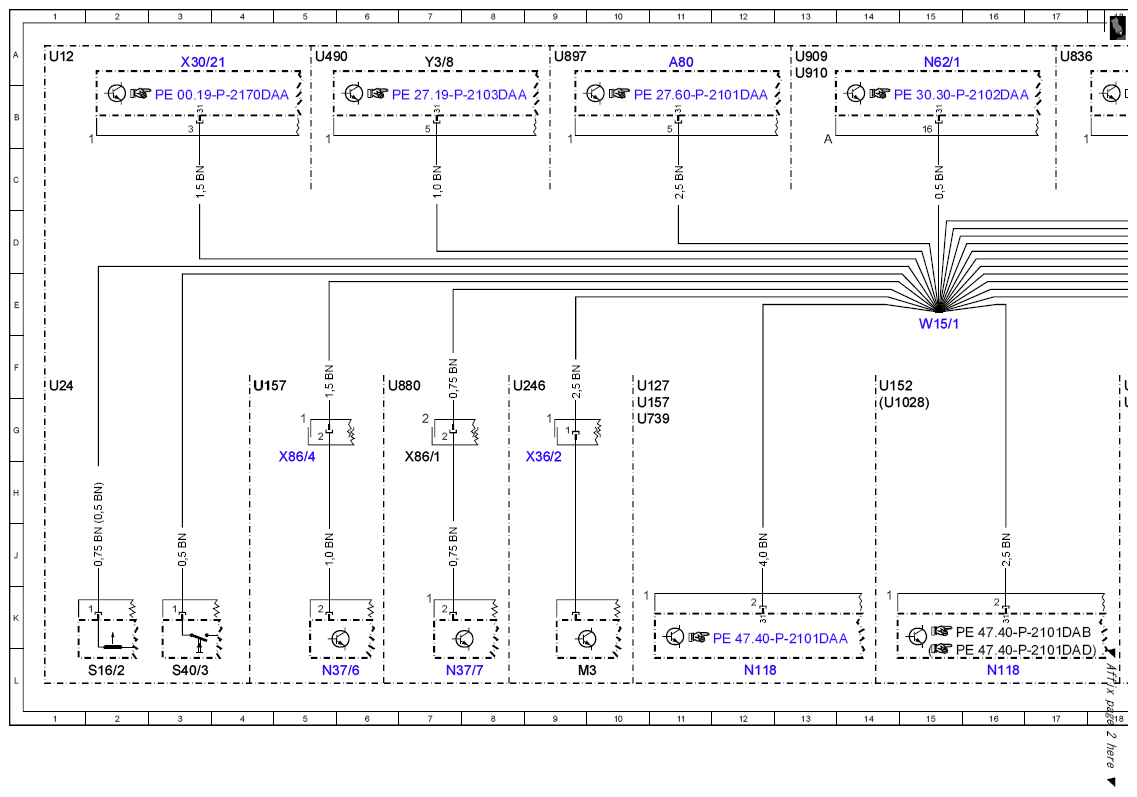

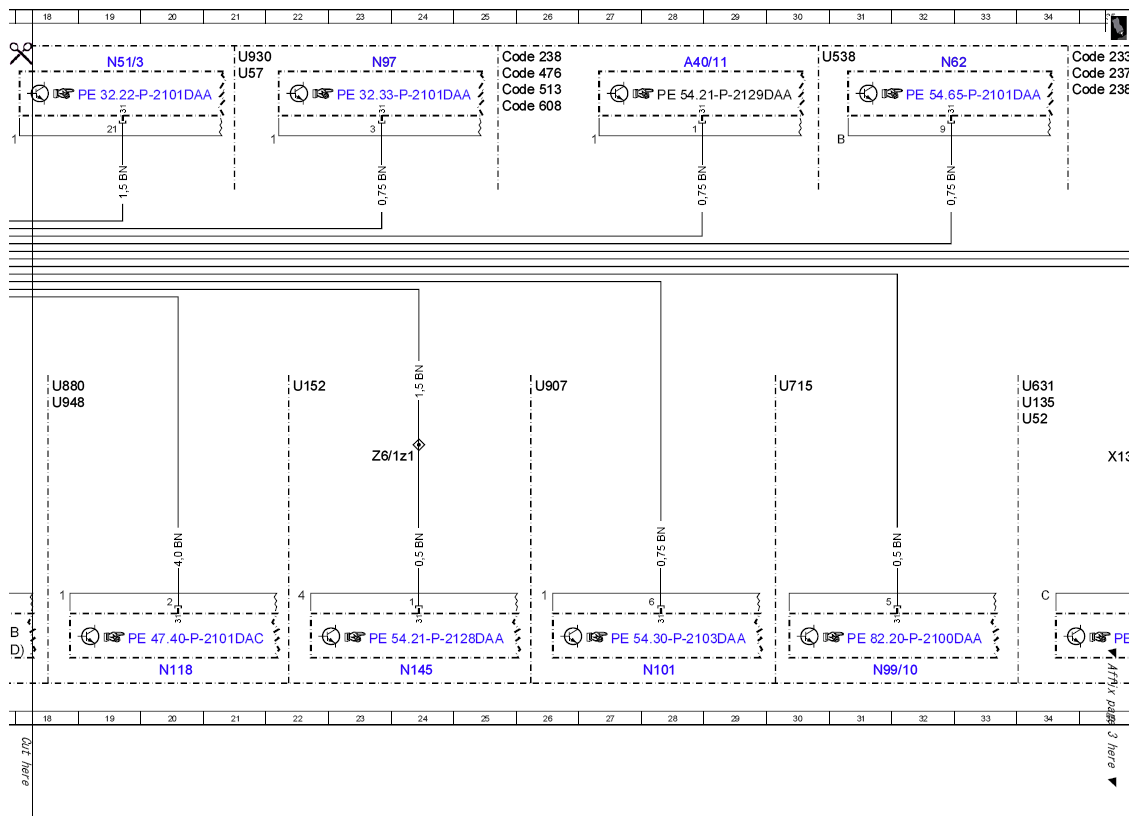

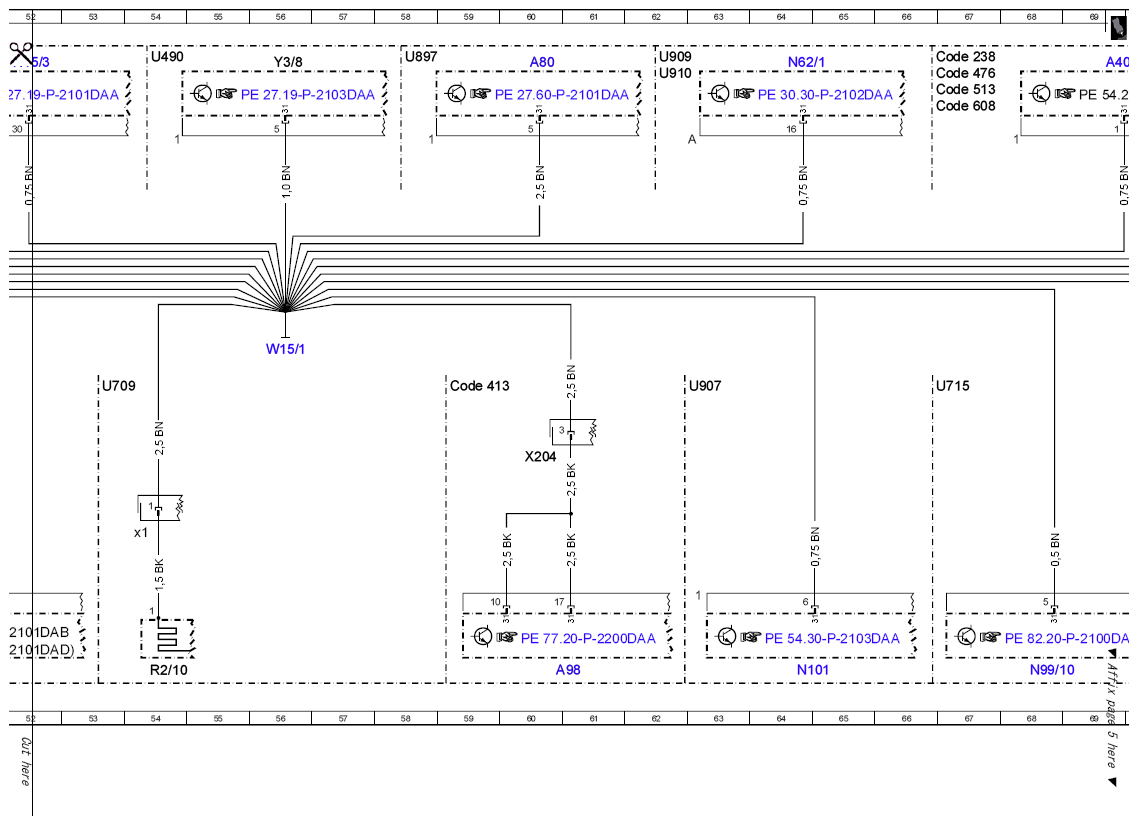

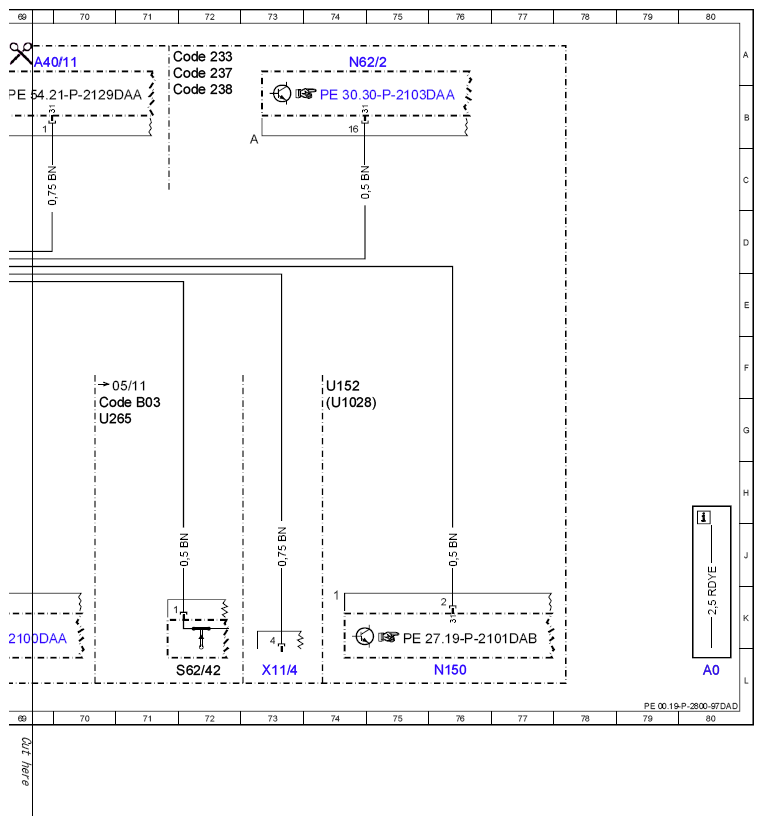

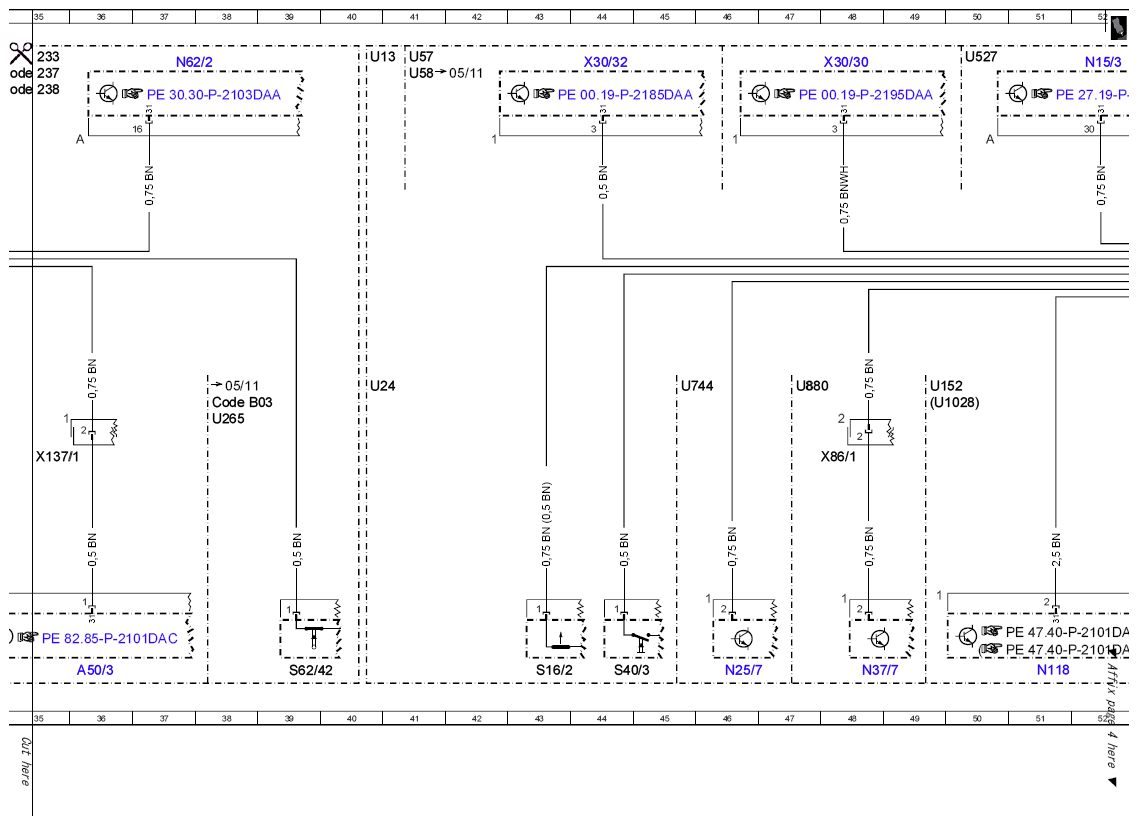

Wiring diagram of ground cabling - PE00.19-P-2800-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 W15/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A40/11 | Multifunction camera | 28A |
| A40/11 | Multifunction camera | 69A |
| A50/3 | Electronic Toll Collection control unit | 36L |
| A80 | Intelligent servo module for DIRECT SELECT | 11A |
| A80 | Intelligent servo module for DIRECT SELECT | 60A |
| A98 | Panoramic sliding roof control module | 61L |
| Code 233 | DISTRONIC PLUS | 34A |
| Code 233 | DISTRONIC PLUS | 71A |
| Code 237 | Active Blind Spot Assist | 34A |
| Code 237 | Active Blind Spot Assist | 71A |
| Code 238 | Active Lane Keeping Assist | 25A |
| Code 238 | Active Lane Keeping Assist | 34B |
| Code 238 | Active Lane Keeping Assist | 66A |
| Code 238 | Active Lane Keeping Assist | 71B |
| Code 413 | Panoramic sliding sunroof | 59F |
| Code 476 | Automatic lane detection | 25A |
| Code 476 | Automatic lane detection | 66A |
| Code 513 | Speed Limit Assist | 25B |
| Code 513 | Speed Limit Assist | 66B |
| Code 608 | Adaptive Highbeam Assist | 25B |
| Code 608 | Adaptive Highbeam Assist | 66B |
| Code B03 | ECO start/stop function | 38G |
| Code B03 | ECO start/stop function | 70G |
| M3 | Fuel pump (FP) | 9L |
| N101 | Night vision assist control unit | 28L |
| N101 | Night vision assist control unit | 64L |
| N118 | Fuel pump control unit | 12L |
| N118 | Fuel pump control unit | 16L |
| N118 | Fuel pump control unit | 20L |
| N118 | Fuel pump control unit | 51L |
| N145 | Transmission mode control unit | 24L |
| N15/3 | Electronic transmission control unit | 52A |
| N150 | DIRECT SELECT INTERFACE | 76L |
| N25/7 | Steering wheel heater control unit | 46L |
| N37/6 | Control unit NOx sensor on the right | 5L |
| N37/7 | Nitrogen oxides control unit downstream of diesel particulate filter | 7L |
| N37/7 | Nitrogen oxides control unit downstream of diesel particulate filter | 48L |
| N51/3 | AIRMATIC control unit | 19A |
| N62 | Parking system control unit | 32A |
| N62/1 | Radar sensors control unit | 15A |
| N62/1 | Radar sensors control unit | 64A |
| N62/2 | Video and radar sensor system control unit | 37A |
| N62/2 | Video and radar sensor system control unit | 74A |
| N97 | Rear axle electronic level control unit | 23A |
| N99/10 | Right front illuminated door sill molding voltage converter | 31L |
| N99/10 | Right front illuminated door sill molding voltage converter | 68L |
| R2/10 | Wiper park heater | 54L |
| R2/10x1 | Wiper park position heater electrical connector | 54J |
| S16/2 | Backup lamp switch | 2L |
| S16/2 | Backup lamp switch | 43L |
| S40/3 | Clutch pedal switch | 3L |
| S40/3 | Clutch pedal switch | 44L |
| S62/42 | Right engine hood contact switch | 39L |
| S62/42 | Right engine hood contact switch | 72L |
| U1028 | Valid for engine 157 | 14G |
| U1028 | Valid for engine 157 | 49G |
| U1028 | Valid for engine 157 | 74G |
| U12 | Valid for left-hand drive vehicles | 1A |
| U127 | Valid for combustion engines 272 and 273 KE | 10F |
| U13 | Valid for right-hand drive vehicles | 40A |
| U135 | Valid for Electronic Toll Collection | 34G |
| U152 | Valid for gasoline engine 156 | 14F |
| U152 | Valid for gasoline engine 156 | 22F |
| U152 | Valid for gasoline engine 156 | 49F |
| U152 | Valid for gasoline engine 156 | 74F |
| U157 | Valid for combustion engine 272 DE | 4F |
| U157 | Valid for combustion engine 272 DE | 10G |
| U24 | Valid for manual transmission | 40F |
| U24 | Valid for manual transmission | 1F |
| U246 | Valid without fuel system control unit | 8F |
| U265 | Not valid for pedestrian protection | 38G |
| U265 | Not valid for pedestrian protection | 70G |
| U490 | Valid for 7-speed automatic transmission | 5A |
| U490 | Valid for 7-speed automatic transmission | 54A |
| U52 | Valid for Japan | 34G |
| U527 | Valid for electronic transmission control | 50A |
| U538 | Valid for PARKTRONIC | 30A |
| U57 | Valid for model 212.2 | 21A |
| U57 | Valid for model 212.2 | 41A |
| U58 | Valid for model 212.0/1 | 41A |
| U631 | Valid for COMAND | 34F |
| U709 | Valid for wiper park position heater | 53F |
| U715 | Valid for illuminated door sills | 30F |
| U715 | Valid for illuminated door sills | 66F |
| U739 | Valid for gasoline engine 271 DE | 10G |
| U744 | Valid for steering wheel heater | 45F |
| U836 | Valid for AIRMATIC | 17A |
| U880 | Valid for diesel engine 642 | 6F |
| U880 | Valid for diesel engine 642 | 18F |
| U880 | Valid for diesel engine 642 | 47F |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 9A |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 58A |
| U907 | Valid for Night View Assist | 26F |
| U907 | Valid for Night View Assist | 63F |
| U909 | Valid for DISTRONIC PLUS | 13A |
| U909 | Valid for DISTRONIC PLUS | 62A |
| U910 | Valid for Blind Spot Assist | 13A |
| U910 | Valid for Blind Spot Assist | 62A |
| U930 | Valid for electronic level control with hydraulics | 21A |
| U948 | Valid for diesel engine 651 | 18G |
| W15/1 | Right footwell ground point | 15E |
| W15/1 | Right footwell ground point | 56F |
| X11/4 | Diagnostic connector | 73L |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 35H |
| X204 | Panoramic sliding roof electrical connector | 60H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 3A |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 48A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 44A |
| X36/2 | Fuel pump and vehicle rear wiring harness electrical connector | 9H |
| X86/1 | Nitrogen oxides control unit electrical connector | 7H |
| X86/1 | Nitrogen oxides control unit electrical connector | 48H |
| X86/4 | Right nitrogen oxides control unit electrical connector | 5H |
| Y3/8 | Fully integrated transmission control unit | 7A |
| Y3/8 | Fully integrated transmission control unit | 56A |
| Z6/1z1 | Circuit 31 connector sleeve | 24G |
