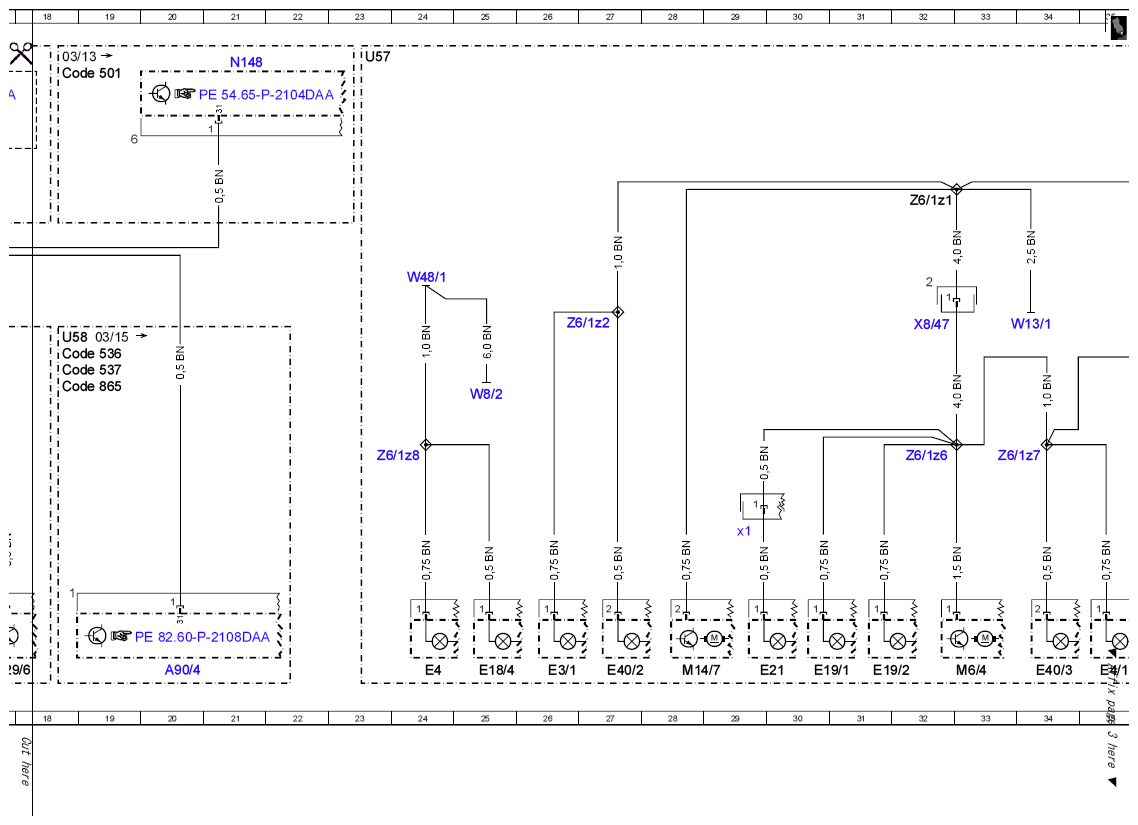

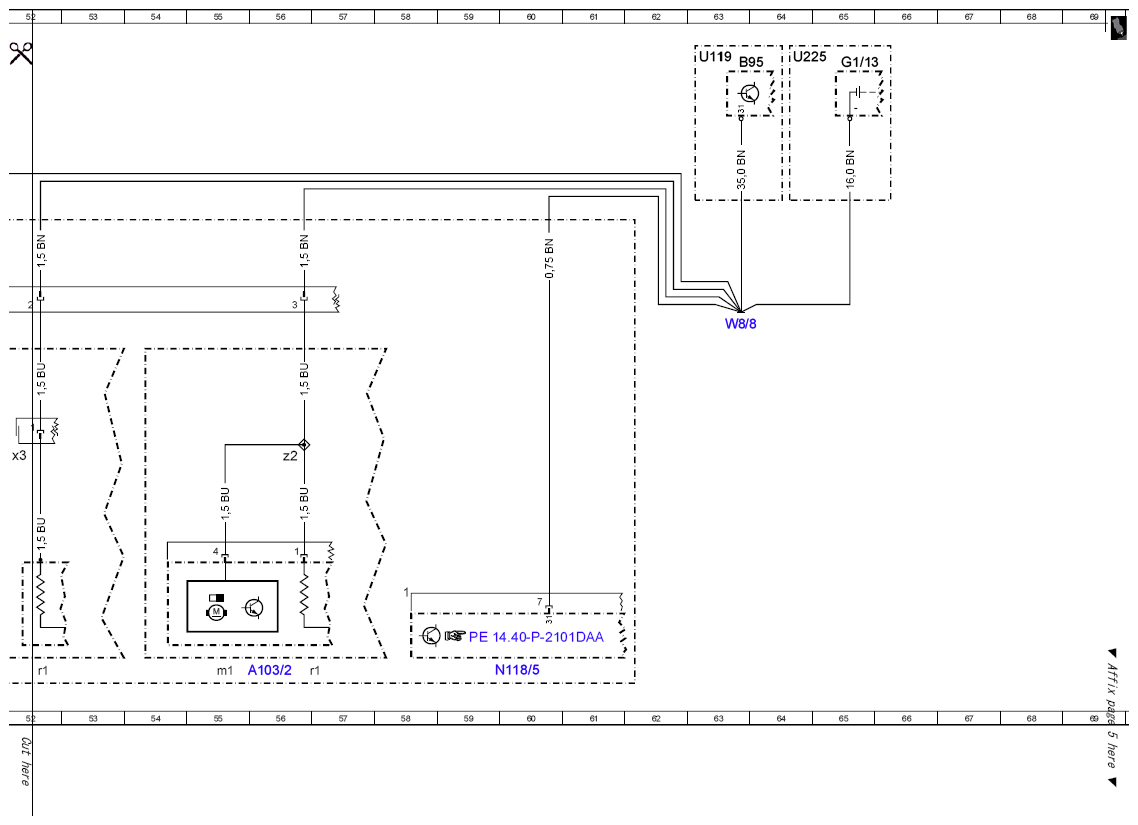

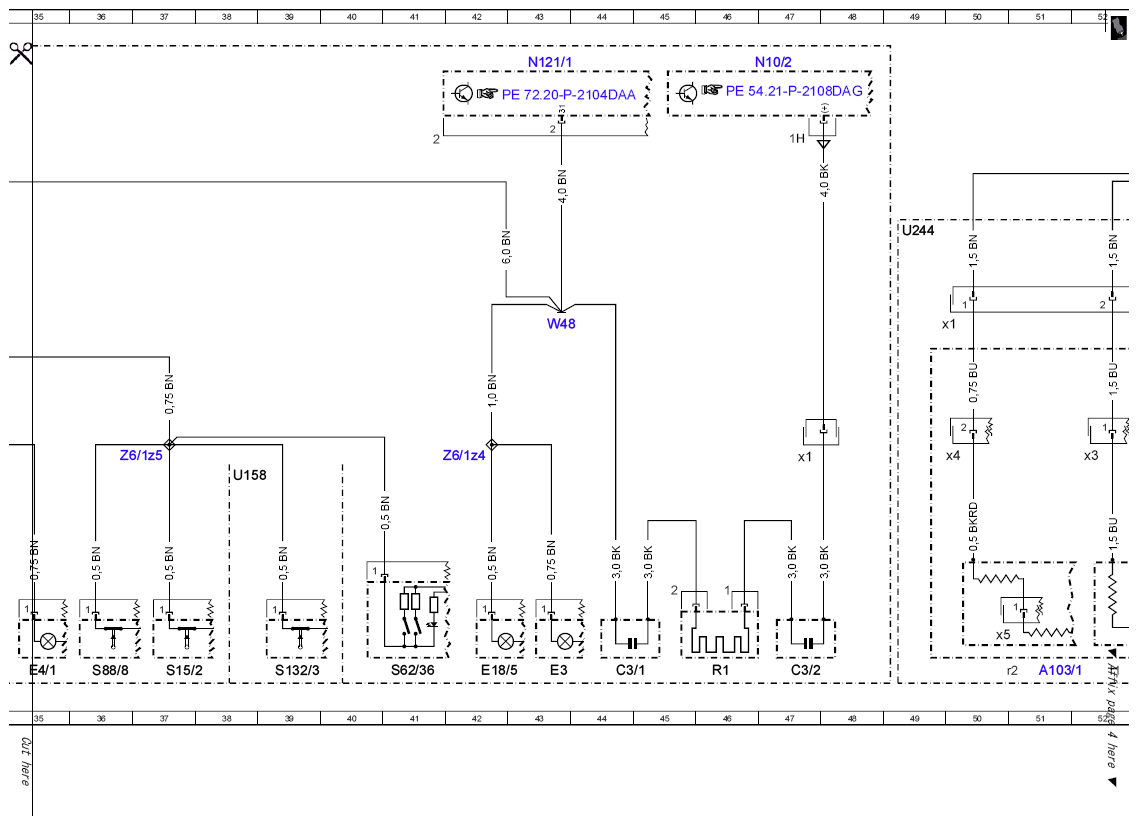

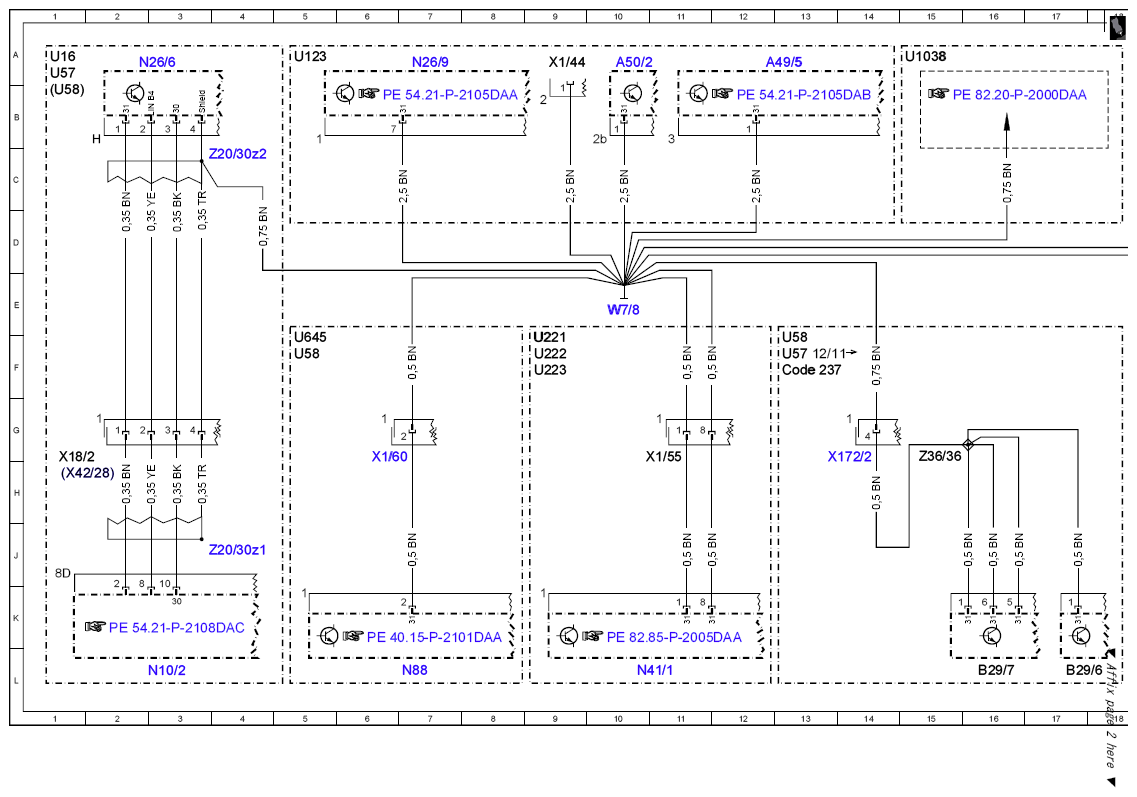

Wiring diagram of ground cabling - PE00.19-P-2800-97DAC
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 W7/8, W8/2, W13/1, W13/2, W48, W48/1
| Code: | Designation: | Position: |
|---|---|---|

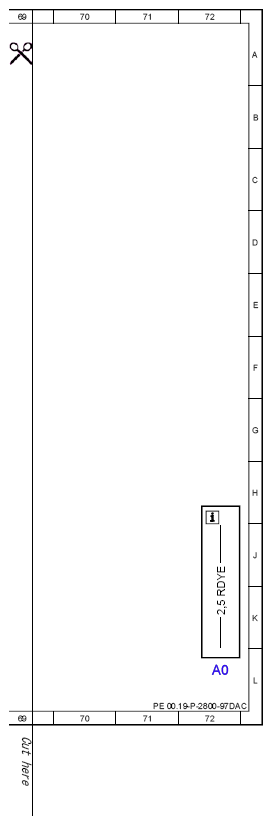

| A0 | Color code key | 72L |
| A103/1 | AdBlue® tank module | 51L |
| A103/1r1 | AdBlue® tank heating element | 52L |
| A103/1r2 | AdBlue® pressure line heating element | 50L |
| A103/1x1 | AdBlue® tank module electrical connector | 50E |
| A103/1x3 | AdBlue® tank module temperature sensor and heating element electrical connector | 52G |
| A103/1x4 | AdBlue® tank module pressure line heating element electrical connector 1 | 50G |
| A103/1x5 | AdBlue® tank module pressure line heating element electrical connector 2 | 50K |
| A103/2 | AdBlue® delivery module | 56L |
| A103/2m1 | AdBlue® delivery pump | 55L |
| A103/2r1 | AdBlue® delivery module heating element | 56L |
| A103/2z2 | Connector sleeve / delivery pump and heating element of AdBlue® delivery module | 56G |
| A49/5 | Radio data transmission two-way radio | 13A |
| A50/2 | Card reader and printer | 10A |
| A90/4 | Tuner unit | 20L |
| B29/6 | Left rear bumper radar sensor | 17L |
| B29/7 | Right rear bumper radar sensor | 16L |
| B95 | Battery sensor | 63A |
| C3/1 | Rear window interference suppression capacitor 1 | 44L |
| C3/2 | Rear window interference suppression capacitor 2 | 47L |
| C3/2x1 | Rear window interference suppression capacitor 2 electrical connector | 47H |
| Code 237 | Active Blind Spot Assist | 13F |
| Code 501 | 360 degree camera | 18A |
| Code 536 | SIRIUS satellite radio | 18F |
| Code 537 | Digital radio | 18F |
| Code 865 | TV tuner (digital) | 18F |
| E18/4 | Right luggage compartment lamp | 25L |
| E18/5 | Left luggage compartment lamp | 42L |
| E19/1 | Left license plate lamp | 30L |
| E19/2 | Right license plate lamp | 31L |
| E21 | Center stop lamp | 29L |
| E21x1 | Center brake lamp electrical connector | 29J |
| E3 | Left rear lamp unit | 43L |
| E3/1 | Inner left rear lamp unit | 26L |
| E4 | Right rear lamp unit | 24L |
| E4/1 | Inner right rear lamp unit | 35L |
| E40/2 | Left tailgate ambient lamp and warning lamp | 27L |
| E40/3 | Right tailgate ambient lamp and warning lamp | 34L |
| G1/13 | ECO start/stop function additional battery | 65A |
| M14/7 | Tailgate central locking motor | 28L |
| M6/4 | Tailgate wiper motor | 33L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2 | Rear SAM control unit with fuse and relay module | 47A |
| N118/5 | AdBlue® control unit | 60L |
| N121/1 | Tailgate control unit | 43A |
| N148 | 360° camera control unit | 21A |
| N26/6 | Interior protection and tow-away protection control unit | 3A |
| N26/9 | Special-purpose vehicle multifunction control unit | 7A |
| N41/1 | Navigation processor | 10L |
| N88 | Tire pressure monitor control unit | 7L |
| R1 | Rear window heater | 46L |
| S132/3 | 3rd seat row switch | 39L |
| S15/2 | Inside liftgate handle flap switch | 37L |
| S62/36 | Tailgate control button | 41L |
| S88/8 | Tailgate external operation switch | 36L |
| U1038 | Valid for vehicle model designation 212.1 | 15A |
| U119 | Valid for rear battery | 63A |
| U123 | Valid for taxi electrical system | 5A |
| U158 | Valid for folding bench seat in load area | 38H |
| U16 | Valid for ATA [EDW] with tow-away protection and interior protection | 1A |
| U221 | Valid for China | 9F |
| U222 | Valid for Korea | 9F |
| U223 | Valid for external navigation | 9F |
| U225 | Valid for all except China | 64A |
| U244 | Valid for BlueTEC | 49D |
| U57 | Valid for model 212.2 | 13F |
| U57 | Valid for model 212.2 | 1A |
| U57 | Valid for model 212.2 | 23A |
| U58 | Valid for model 212.0/1 | 5F |
| U58 | Valid for model 212.0/1 | 13F |
| U58 | Valid for model 212.0/1 | 1B |
| U58 | Valid for model 212.0/1 | 18F |
| U645 | Valid for tire pressure monitor | 5F |
| W13/1 | Ground point (left rear window heater) | 34E |
| W48 | Left rear roof frame ground point | 43E |
| W48/1 | Right rear roof frame ground point | 24E |
| W7/8 | Right wheelhouse trunk ground point | 10E |
| W8/2 | Right tailgate ground point | 25G |
| W8/8 | Ground point (right rear end) | 63E |
| X1/44 | Taxi peripheral device electrical connector | 9A |
| X1/55 | External navigation electrical connector | 11H |
| X1/60 | Tire pressure monitor electrical connector | 6H |
| X172/2 | Rear bumper radar sensors electrical connector | 14H |
| X18/2 | Electrical connector/interior roof | 1H |
| X42/28 | Interior protection electrical connector | 2H |
| X8/47 | Left and right liftgate electrical connector | 32E |
| Z20/30z1 | Tracer wire connector sleeve | 3J |
| Z20/30z2 | Tracer wire connector sleeve | 3C |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 15G |
| Z6/1z1 | Circuit 31 connector sleeve | 32C |
| Z6/1z2 | Circuit 31 connector sleeve | 27E |
| Z6/1z4 | Circuit 31 connector sleeve | 42G |
| Z6/1z5 | Circuit 31 connector sleeve | 37G |
| Z6/1z6 | Circuit 31 connector sleeve | 32G |
| Z6/1z7 | Circuit 31 connector sleeve | 34G |
| Z6/1z8 | Circuit 31 connector sleeve | 24G |
