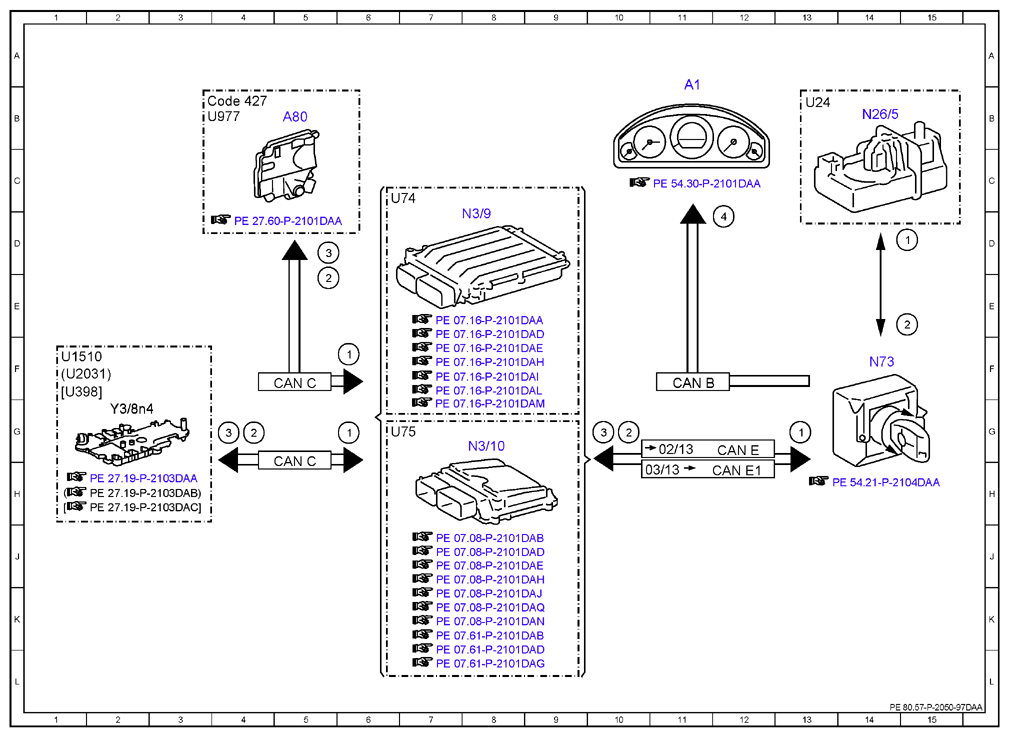

Electrical function schematic for drive authorization system (DAS) - PE80.57-P-2050-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Drive authorization query, signal | 6G |
| 1 | Drive authorization query, signal | 6F |
| 1 | Drive authorization query, signal | 13G |
| 1 | Drive authorization query, signal | 15D |
| 2 | Drive authorization feedback, signal | 5E |
| 2 | Drive authorization feedback, signal | 10G |
| 2 | Drive authorization feedback, signal | 15E |
| 2 | Drive authorization feedback, signal | 4G |
| 3 | Circuit 15, signal | 4G |
| 3 | Circuit 15, signal | 5D |
| 3 | Circuit 15, signal | 10G |
| 4 | Instrument cluster, message | 12D |
| A1 | Instrument cluster | 11B |
| A80 | Intelligent servo module for DIRECT SELECT | 5B |
| CAN B | Interior CAN | 11F |
| CAN C | Drive train CAN | 5H |
| CAN C | Drive train CAN | 5F |
| CAN E | Chassis CAN | 12G |
| CAN E1 | Chassis CAN 1 | 12H |
| Code 427 | 7-speed automatic transmission | 3B |
| N26/5 | Electric steering lock control unit | 14B |
| N3/10 | ME-SFI [ME] control unit | 8G |
| N3/9 | CDI control unit | 7D |
| N73 | Electronic ignition switch control unit | 14F |
| U1510 | Valid for transmission 722.9 | 1F |
| U2031 | Valid for transmission 724 | 1F |
| U24 | Valid for manual transmission | 13B |
| U398 | Valid for transmission 725 (NAG3) | 1F |
| U74 | Valid for diesel engines | 6C |
| U75 | Valid for gasoline engines | 6G |
| U977 | Not valid for mild hybrid drive | 3B |
| Y3/8n4 | Fully integrated transmission control unit | 2G |
