Wiring diagram for common rail diesel injection (CDI) control unit - PE07.16-P-2101-97DAL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 as of 6/1/10 in MODEL 212 (except 212.098/298)

except CODE 494 (US version)

except CODE U42 (BlueTEC diesel exhaust treatment (SCR))

except CODE U77 (Diesel Emission control BLUETEC (SCR)) Control unit N3/9, vehicle connector

Code: Designation: Position:
A0 Color code key 88L
B16/15 Temperature sensor upstream of SCR catalytic converter 67L
B19/7 Temperature sensor upstream of catalytic converter 65L
B19/9 Temperature sensor upstream of diesel particulate filter 69L
B28/8 Differential pressure sensor (DPF) 71L
B37 Accelerator pedal sensor 60L
B79/2 Transmission neutral position sensor 75L
CAN C Drive train CAN 6K
CAN E Chassis CAN 13K
CAN E1 Chassis CAN 1 13K
CAN I Drive train sensor CAN 9K
Code 474 Diesel particulate filter 68F
Code B03 ECO start/stop function 73F
Code U42 BlueTEC diesel exhaust treatment 64F
Code U77 BLUETEC (SCR) diesel exhaust treatment 64F
F32 Front electrical prefuse box 55L
F32f153 Prefuse 153 53K
G3/2 Oxygen sensor upstream of catalytic converter 18L
G3/2x1 Electrical connector for oxygen sensor upstream of catalytic converter 16J
M1 Starter 47L
M4/7 Combustion engine and air conditioning with integrated control fan motor 57L
N10/1 Front SAM control unit with fuse and relay module 21L
N10/1 Front SAM control unit with fuse and relay module 27L
N10/1 Front SAM control unit with fuse and relay module 33L
N10/1 Front SAM control unit with fuse and relay module 38L
N10/1f22 Fuse 22 24L
N10/1f22 Fuse 22 36L
N10/1f23 Fuse 23 26L
N10/1f23 Fuse 23 35L
N10/1f24 Fuse 24 37L
N10/1f27 Fuse 27 23L
N10/1f6 Fuse 6 20L
N10/1f7 Fuse 7 34L
N118 Fuel pump control unit 3L
N2/10 Supplemental restraint system control unit 51L
N3/9 CDI control unit 4A
N3/9 CDI control unit 19A
N3/9 CDI control unit 28A
N3/9 CDI control unit 36A
N3/9 CDI control unit 44A
N3/9 CDI control unit 52A
N3/9 CDI control unit 61A
N3/9 CDI control unit 76A
N3/9 CDI control unit 68A
S40/3 Clutch pedal switch 62L
S40/5 Start enable clutch pedal switch 78L
U12 Valid for left-hand drive vehicles 61G
U12 Valid for left-hand drive vehicles 77G
U13 Valid for right-hand drive vehicles 61H
U13 Valid for right-hand drive vehicles 77H
U24 Valid for manual transmission 61F
U24 Valid for manual transmission 73F
U62 Valid for 4MATIC 79F
U960 Valid for radiator shutters 39G
W15/1 Right footwell ground point 62H
W15/1 Right footwell ground point 78H
W15/2 Left footwell ground point 62H
W15/2 Left footwell ground point 78G
W16/6 Right major assembly compartment ground point 16E
W9 Left front ground point (at lamp unit) 57H
X220 New Manual Transmission zero position sensor electrical connector 74H
X25/2 Engine compartment/interior electrical connector 27G
X25/2 Engine compartment/interior electrical connector 58E
X26 Interior and engine wiring harness electrical connector 42H
X26 Interior and engine wiring harness electrical connector 69H
X30/21 Drive train CAN voltage distributor electrical connector 6L
X30/30 Vehicle floor chassis CAN voltage distributor electrical connector 13L
X30/38 Potential distributor electrical connector (CAN I) 9L
Y123 Left switchable engine mount 81L
Y123/1 Right switchable engine mount 83L
Y84 Radiator shutters actuator 40L
Z3z1 Tml. 15 connector sleeve 19E
Z51/19 Engine management crash signal connector sleeve 51E
Z57/17 Engine mount connector sleeve in engine compartment 82G
Z6/8 Sensor ground connector sleeve 71E
Z6/8z1 Sensor ground line connector sleeve 66E
Z7/35 Circuit 87 M1e connector sleeve 25E
Z7/36 Circuit 87 M2e connector sleeve 72E
Z7/36z1 Circuit 87 M2e connector sleeve 80G
Z7/36z1 Circuit 87 M2e connector sleeve 40G

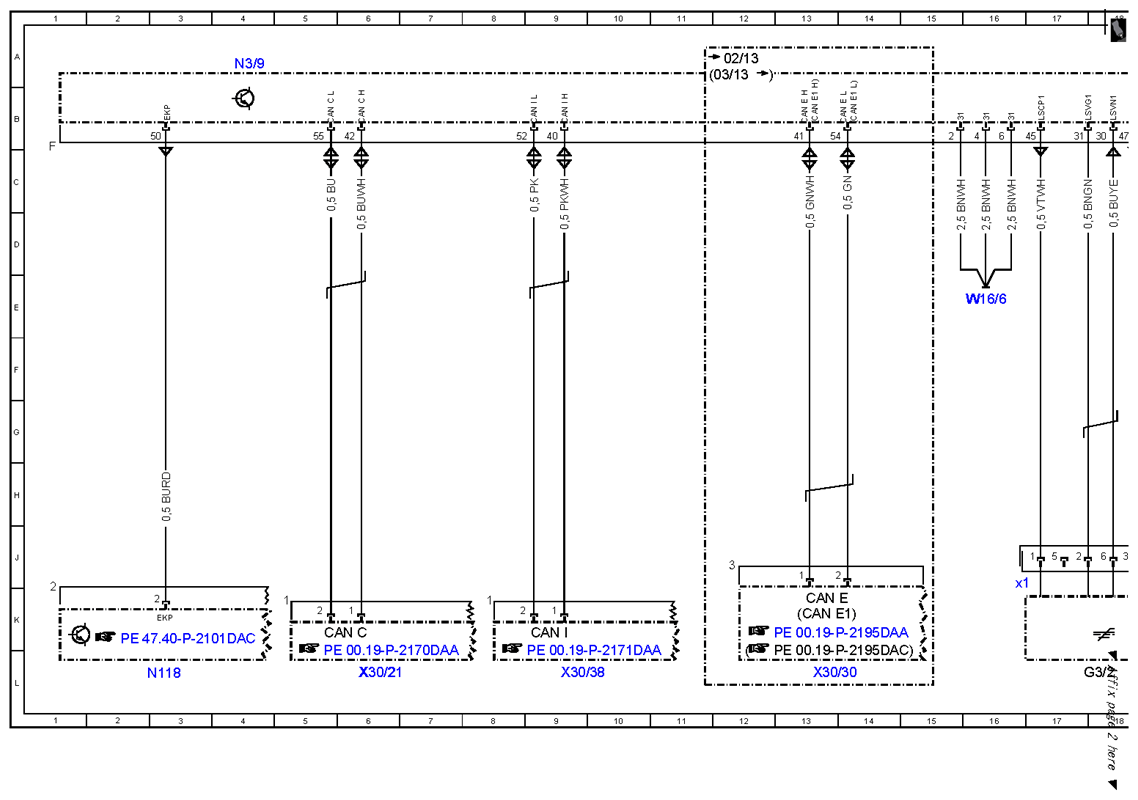

Fig 1: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (1 Of 6)
G10054366Courtesy of MERCEDES-BENZ USA

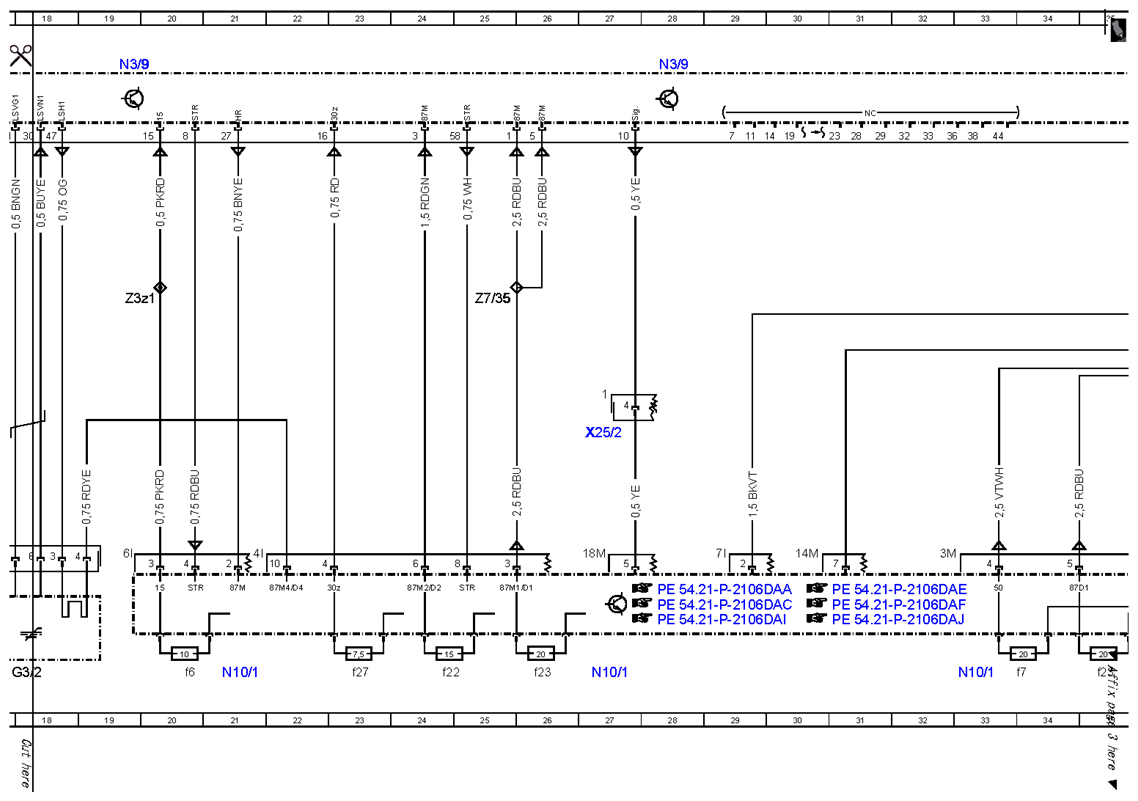

Fig 2: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (2 Of 6)
G10054367Courtesy of MERCEDES-BENZ USA

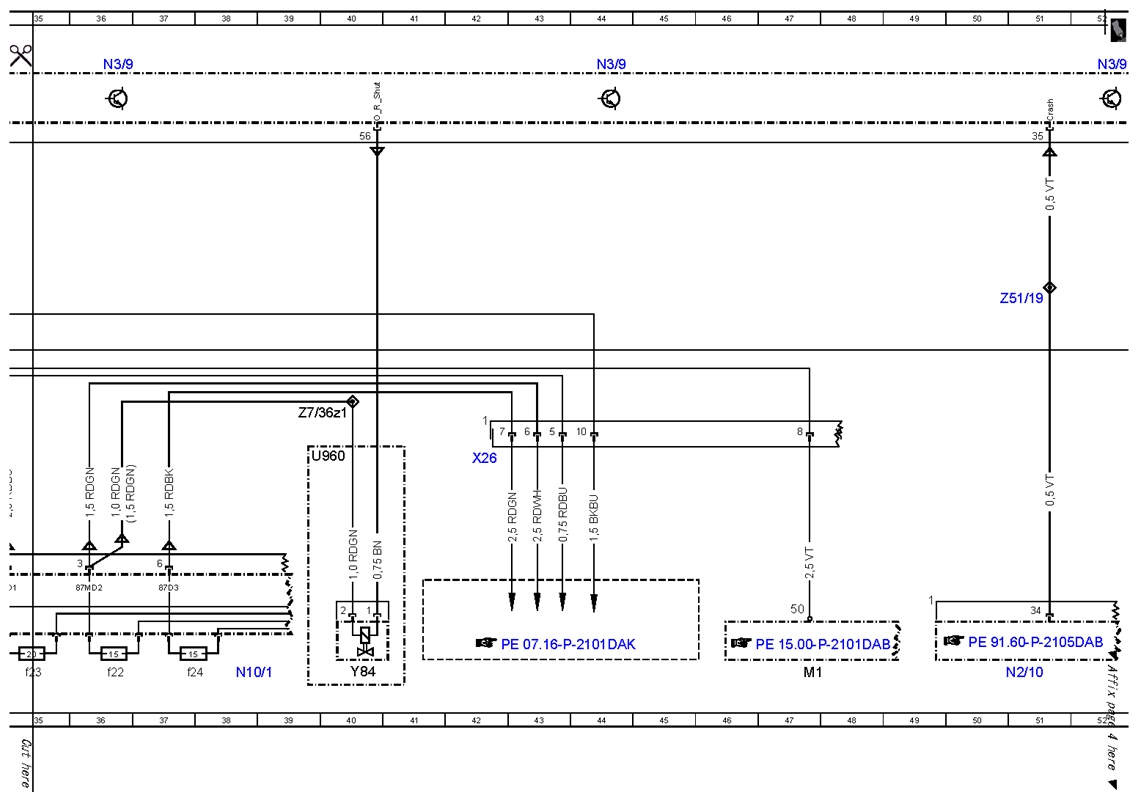

Fig 3: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (3 Of 6)
G10054368Courtesy of MERCEDES-BENZ USA

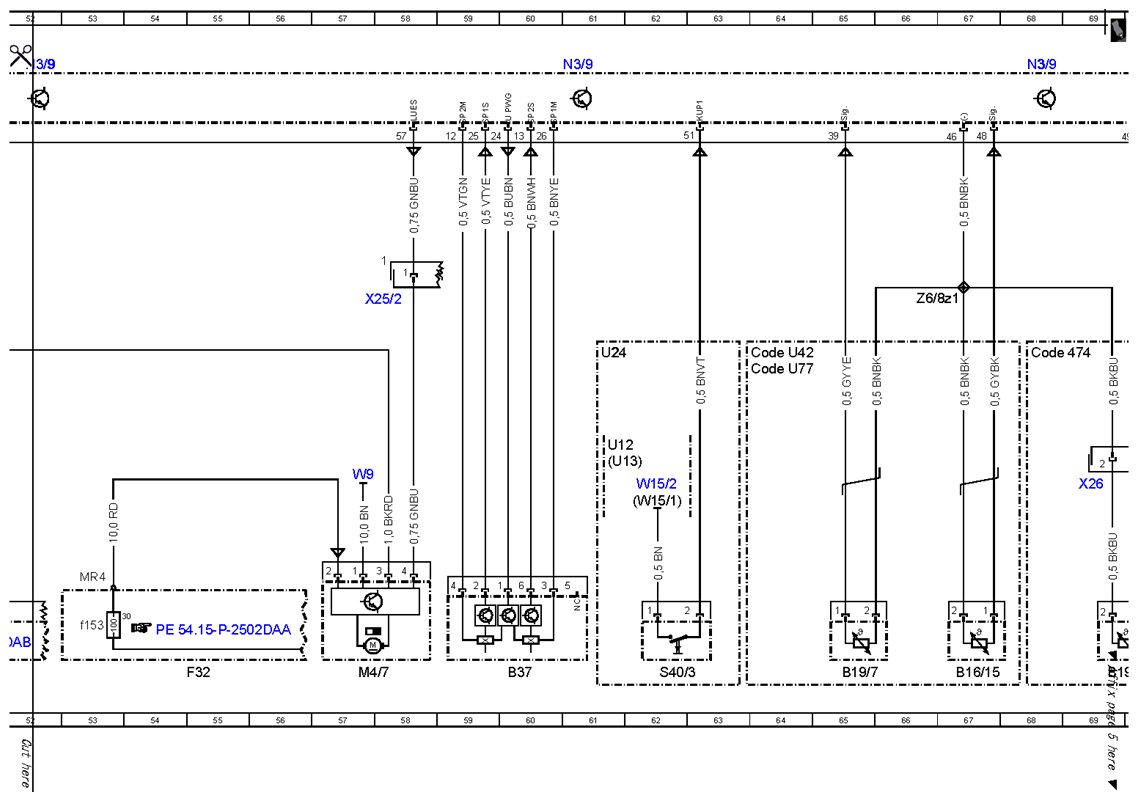

Fig 4: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (4 Of 6)
G10054369Courtesy of MERCEDES-BENZ USA

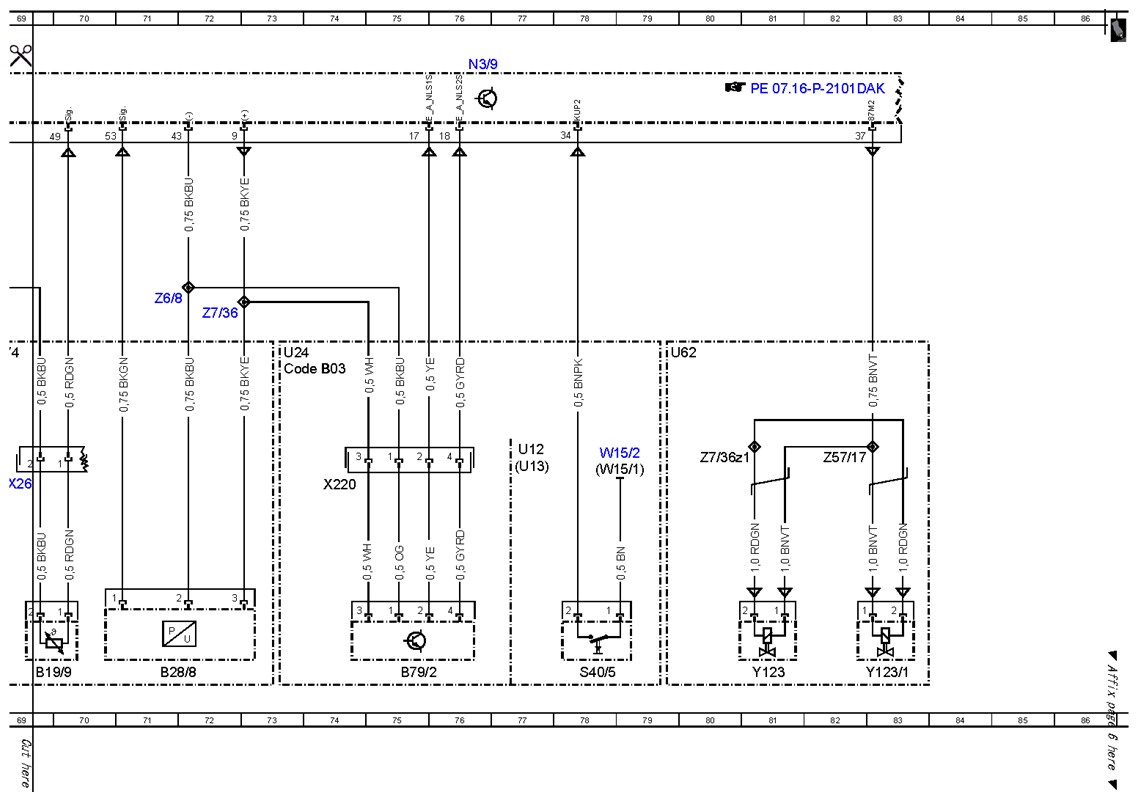

Fig 5: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (5 Of 6)
G10054370Courtesy of MERCEDES-BENZ USA

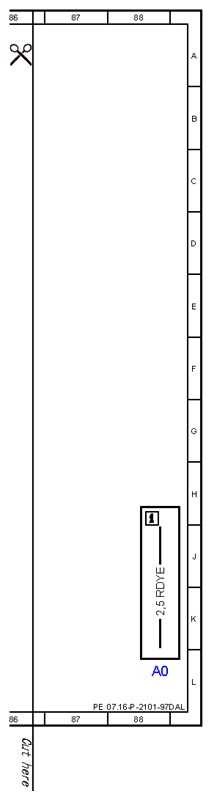

Fig 6: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (6 Of 6)
G10054371Courtesy of MERCEDES-BENZ USA
