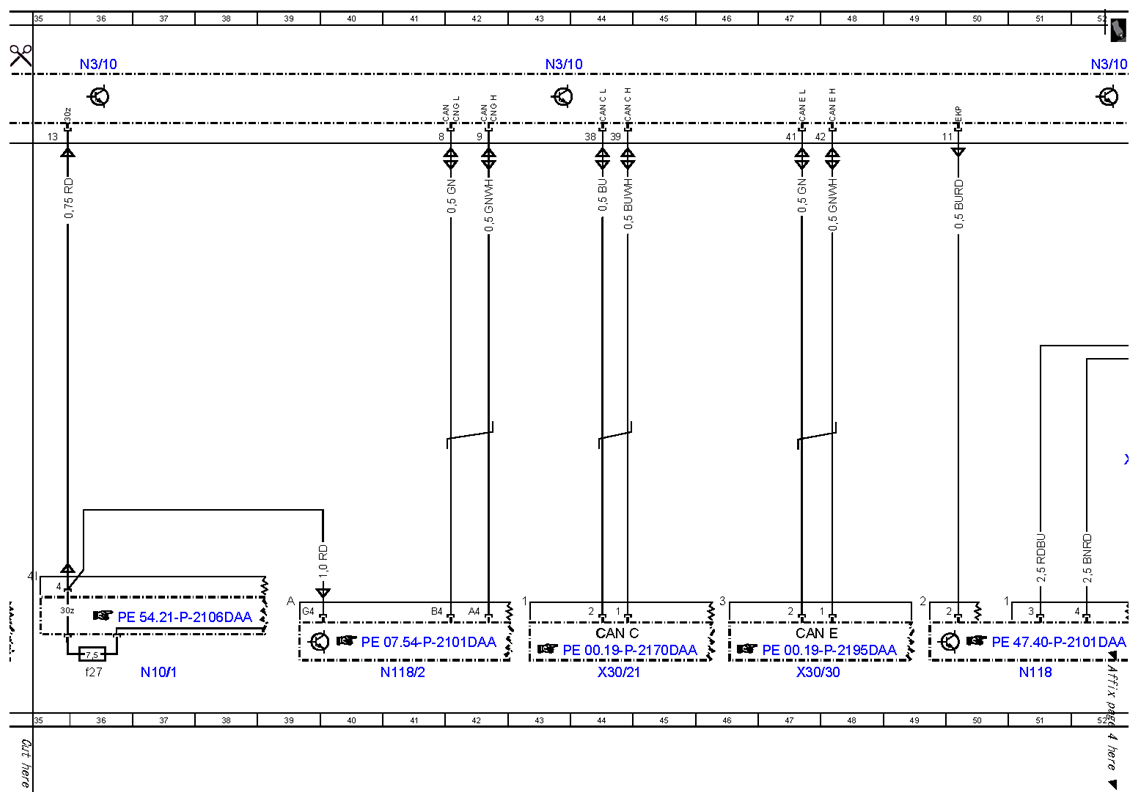

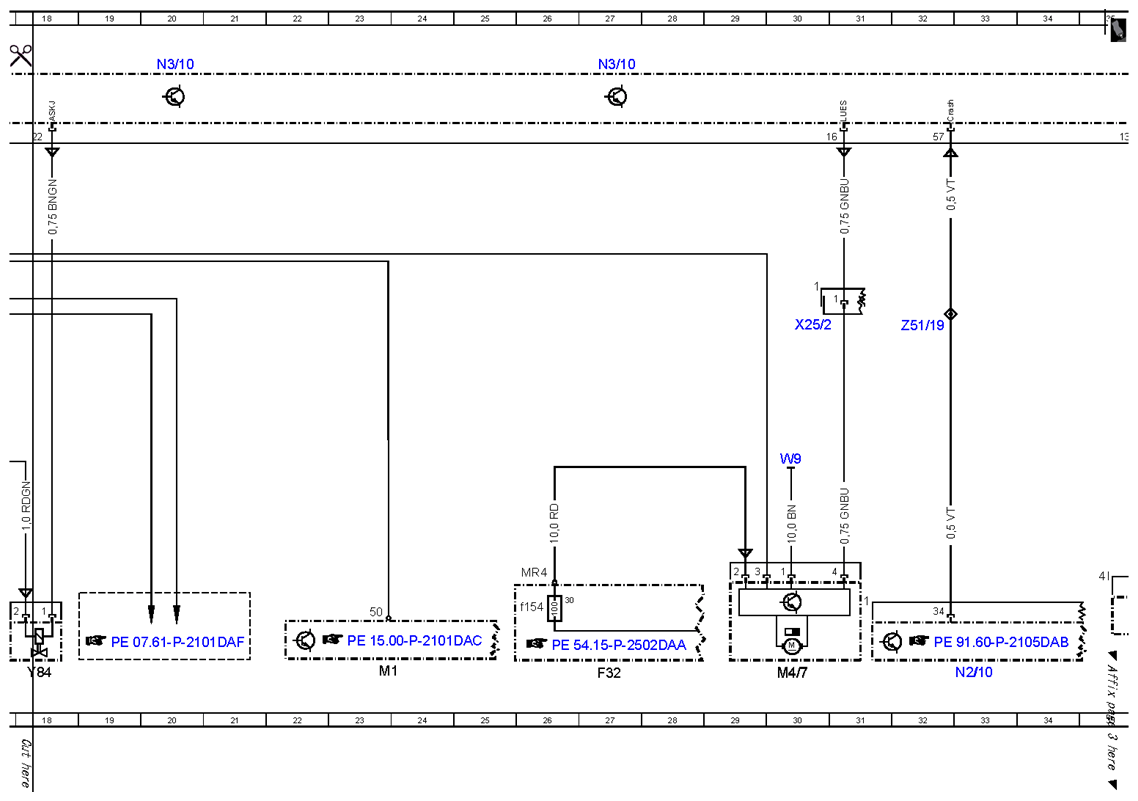

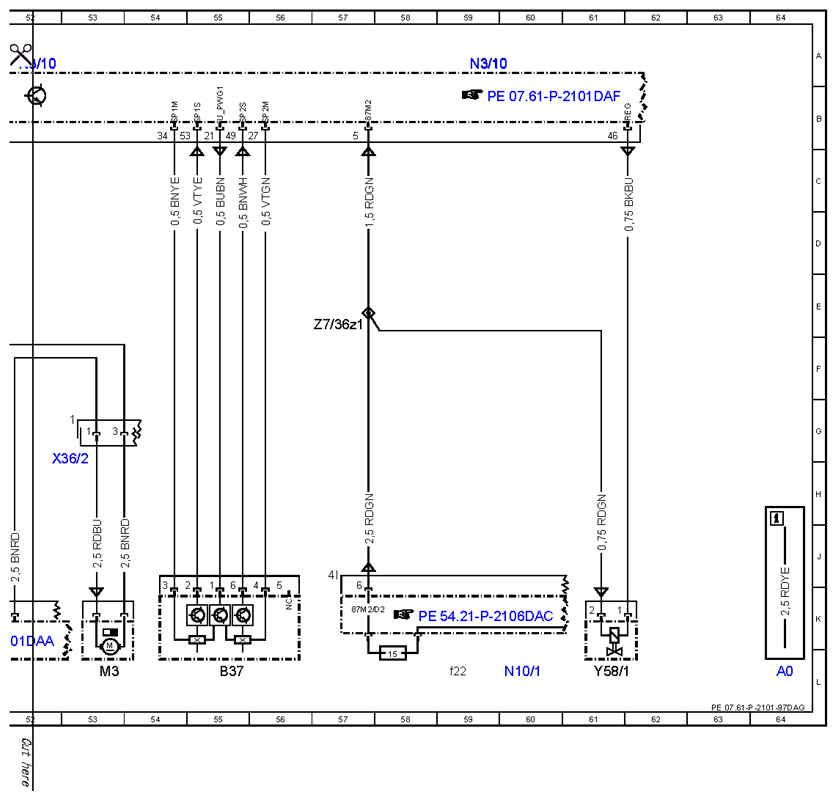

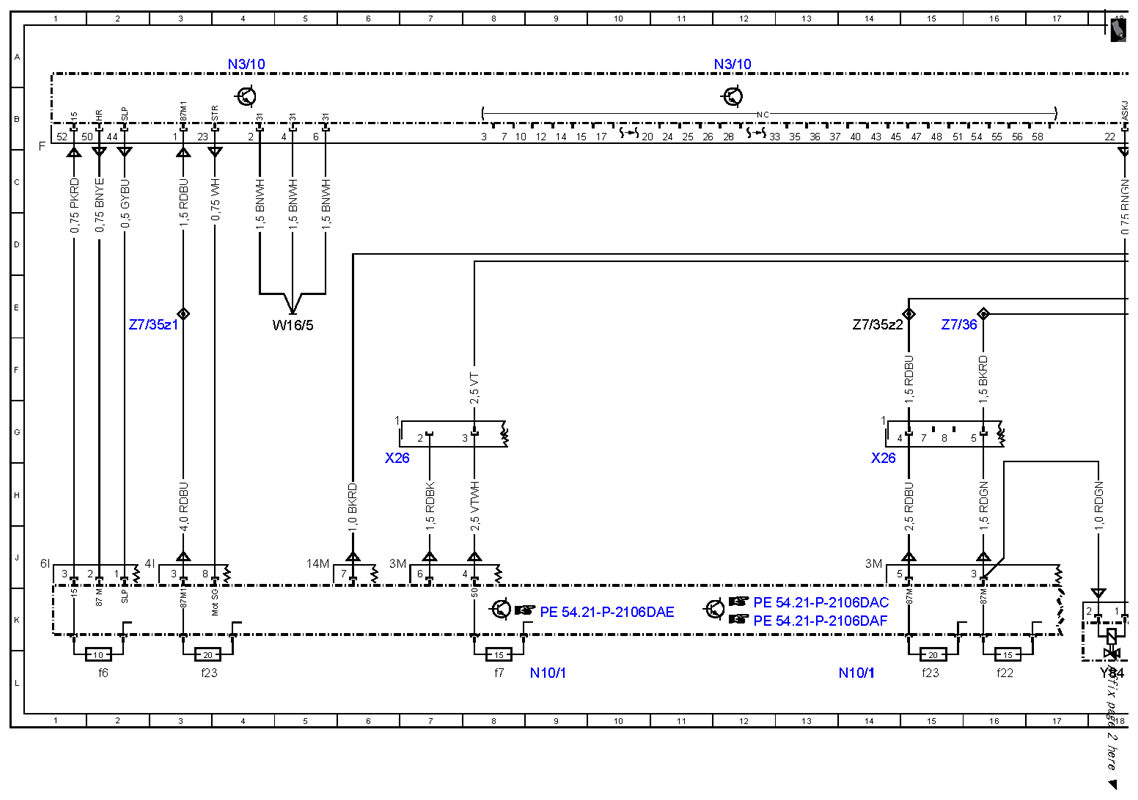

Wiring diagram for ME-SFI (ME) gasoline injection and ignition system control unit - PE07.61-P-2101-97DAG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 271.958 in MODEL 212 Control unit N3/10, vehicle connector
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| B37 | Accelerator pedal sensor | 55L |
| CAN C | Drive train CAN | 44K |
| CAN E | Chassis CAN | 47K |
| F32 | Front electrical prefuse box | 27L |
| F32f154 | Prefuse 154 | 26K |
| M1 | Starter | 23L |
| M3 | Fuel pump (FP) | 53L |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 30L |
| N10/1 | Front SAM control unit with fuse and relay module | 9L |
| N10/1 | Front SAM control unit with fuse and relay module | 60L |
| N10/1 | Front SAM control unit with fuse and relay module | 14L |
| N10/1 | Front SAM control unit with fuse and relay module | 37L |
| N10/1f22 | Fuse 22 | 59L |
| N10/1f22 | Fuse 22 | 16L |
| N10/1f23 | Fuse 23 | 15L |
| N10/1f23 | Fuse 23 | 3L |
| N10/1f27 | Fuse 27 | 36L |
| N10/1f6 | Fuse 6 | 2L |
| N10/1f7 | Fuse 7 | 8L |
| N118 | Fuel pump control unit | 51L |
| N118/2 | CNG control unit | 41L |
| N2/10 | Supplemental restraint system control unit | 33L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 27A |
| N3/10 | ME-SFI [ME] control unit | 43A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 59A |
| W16/5 | Left major assembly compartment electronics ground point | 5E |
| W9 | Left front ground point (at lamp unit) | 30H |
| X25/2 | Engine compartment/interior electrical connector | 30E |
| X26 | Interior and engine wiring harness electrical connector | 6H |
| X26 | Interior and engine wiring harness electrical connector | 14H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 44L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 47L |
| X36/2 | Fuel pump and vehicle rear wiring harness electrical connector | 53H |
| Y58/1 | Purge control valve | 61L |
| Y84 | Radiator shutters actuator | 18L |
| Z51/19 | Engine management crash signal connector sleeve | 32E |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 3E |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 14E |
| Z7/36 | Circuit 87 M2e connector sleeve | 15E |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 57E |
