Wiring diagram for ME-SFI (ME) gasoline injection and ignition system control unit - PE07.61-P-2101-97DAE

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272 in MODEL 212 Control unit N3/10, engine connector

Code: Designation: Position:
A0 Color code key 80L
A16/1 Right knock sensor 2L
A16/2 Left knock sensor 1L
B11/4 Coolant temperature sensor 18L
B2/5 Hot film mass air flow sensor 5L
B2/5b1 Intake air temperature sensor 5L
B28 Pressure sensor 13L
B28/10 Right intake manifold tumble flap position sensor 15L
B28/9 Left intake manifold tumble flap position sensor 17L
B6/4 Left intake camshaft Hall sensor 10L
B6/5 Right intake camshaft Hall sensor 7L
B6/6 Left exhaust camshaft Hall sensor 12L
B6/7 Right exhaust camshaft Hall sensor 9L
B70 Crankshaft Hall sensor 19L
C4/1 Radio interference suppression capacitor 1 48L
C4/2 Radio interference suppression capacitor 2 50L
G3/3 Left oxygen sensor upstream of catalytic converter 30L
G3/3x1 Electrical connector for left oxygen sensor upstream of catalytic converter 29J
G3/4 Right oxygen sensor upstream of catalytic converter 27L
G3/4x1 Electrical connector for right oxygen sensor upstream of catalytic converter 26J
G3/5 Left oxygen sensor downstream of catalytic converter 25L
G3/5x1 Electrical connector for left oxygen sensor downstream of catalytic converter 24J
G3/6 Right oxygen sensor downstream of catalytic converter 22L
G3/6x1 Electrical connector for right oxygen sensor downstream of catalytic converter 21J
M16/6 Throttle valve actuator 64L
M16/6m1 Actuator motor 64K
M16/6r1 Actual value potentiometer 1 65K
M16/6r2 Actual value potentiometer 2 65K
M16/6r3 Sliding contact 1 actual value potentiometer 63J
M16/6r4 Sliding contact 2 actual value potentiometer 64J
N3/10 ME-SFI [ME] control unit 4A
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 36A
N3/10 ME-SFI [ME] control unit 44A
N3/10 ME-SFI [ME] control unit 52A
N3/10 ME-SFI [ME] control unit 61A
N3/10 ME-SFI [ME] control unit 68A
N3/10 ME-SFI [ME] control unit 73A
R4 Spark plugs 45L
R4 Spark plugs 47L
R4 Spark plugs 43L
R4 Spark plugs 51L
R4 Spark plugs 53L
R4 Spark plugs 55L
S43 Oil level check switch 3L
T1/1 Cylinder 1 ignition coil 42K
T1/2 Cylinder 2 ignition coil 44K
T1/3 Cylinder 3 ignition coil 46K
T1/4 Cylinder 4 ignition coil 51K
T1/5 Cylinder 5 ignition coil 53K
T1/6 Cylinder 6 ignition coil 55K
W11w1 Left cylinder bank ground point (engine) 53G
W11w1 Left cylinder bank ground point (engine) 50G
W11w2 Right cylinder bank ground point (engine) 45G
W11w2 Right cylinder bank ground point (engine) 49G
W16/5 Left major assembly compartment electronics ground point 67L
X205 Tumble flap and intake manifold switchover valves electrical connector 58G
X26 Interior and engine wiring harness electrical connector 71G
X26 Interior and engine wiring harness electrical connector 67G
Y110 Coolant thermostat 57L
Y16/2 Heating system shutoff valve 62L
Y22/6 Intake manifold switchover valve 59L
Y22/9 Intake manifold tumble flap switchover valve 58L
Y32 Air pump switchover valve 61L
Y49/4 Left intake camshaft solenoid 41L
Y49/5 Right intake camshaft solenoid 33L
Y49/6 Left exhaust camshaft solenoid 40L
Y49/7 Right exhaust camshaft solenoid 32L
Y62/1 Cylinder 1 injection valve 36L
Y62/2 Cylinder 2 injection valve 35L
Y62/3 Cylinder 3 injection valve 34L
Y62/4 Cylinder 4 injection valve 39L
Y62/5 Cylinder 5 injection valve 37L
Y62/6 Cylinder 6 injection valve 38L
Z5z2 Connector sleeve in wiring harness 16G
Z6/26 Sensor voltage supply connector sleeve 22G
Z6z5 Circuit 31 connector sleeve 44E
Z6z6 Circuit 31 connector sleeve 53E
Z6z6 Circuit 31 connector sleeve 67E
Z7/35z1 Circuit 87 M1e connector sleeve 40G
Z7/35z1 Circuit 87 M1e connector sleeve 71E
Z7/35z2 Circuit 87 M1e connector sleeve 11G
Z7/35z2 Circuit 87 M1e connector sleeve 40E
Z7/35z2 Circuit 87 M1e connector sleeve 52E
Z7/36z1 Circuit 87 M2e connector sleeve 20L
Z7/36z1 Circuit 87 M2e connector sleeve 23L
Z7/36z1 Circuit 87 M2e connector sleeve 29G
Z7/36z1 Circuit 87 M2e connector sleeve 60G
Z7/36z2 Circuit 87 M2e connector sleeve 60E
Z7/36z2 Circuit 87 M2e connector sleeve 68E
Z7/38z1 Circuit 87 M1i connector sleeve 6G
Z7/38z1 Circuit 87 M1i connector sleeve 33G
Z7/38z2 Circuit 87 M1i connector sleeve 34E
Z7/38z2 Circuit 87 M1i connector sleeve 47E
Z7/38z2 Circuit 87 M1i connector sleeve 69E
Z7/43 Sensor ground connector sleeve 8G
Z7/43 Sensor ground connector sleeve 14G
Z7/44 Sensor ground connector sleeve 10G
Z7/44 Sensor ground connector sleeve 18G

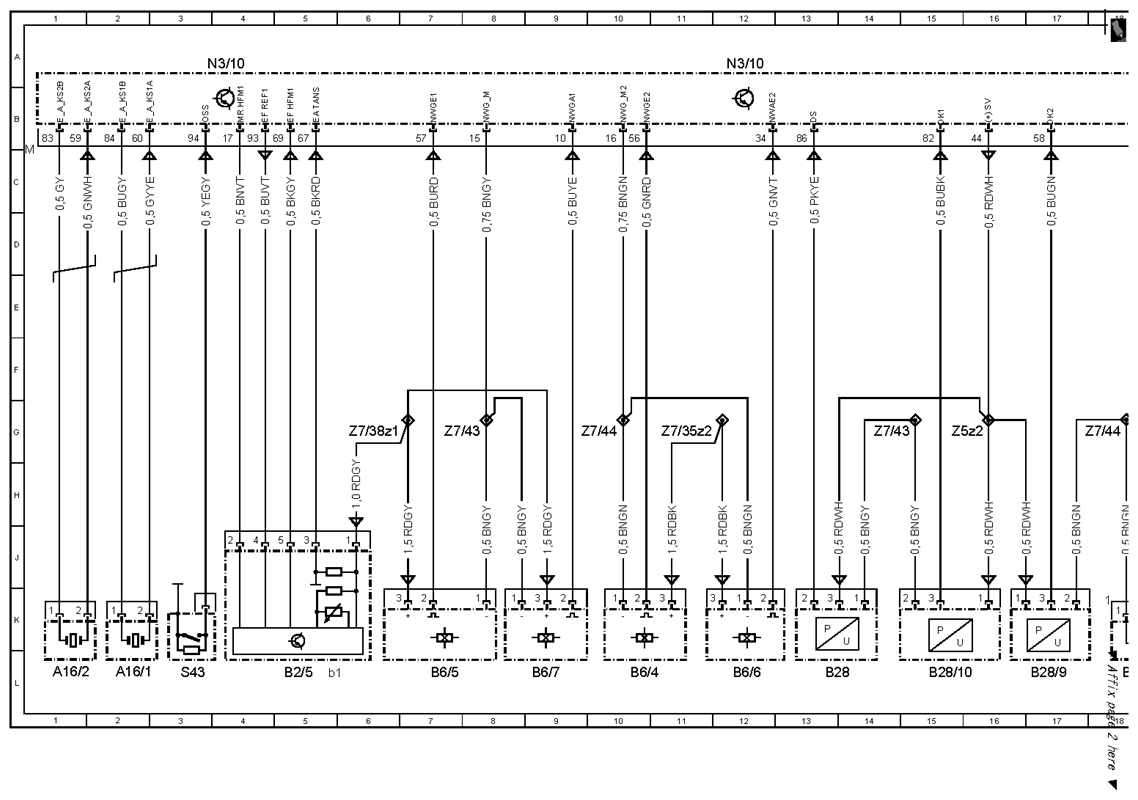

Fig 1: ME-SFI (ME) Gasoline Injection And Ignition System Control Unit - Circuit Diagram (1 Of 5)
G10054441Courtesy of MERCEDES-BENZ USA

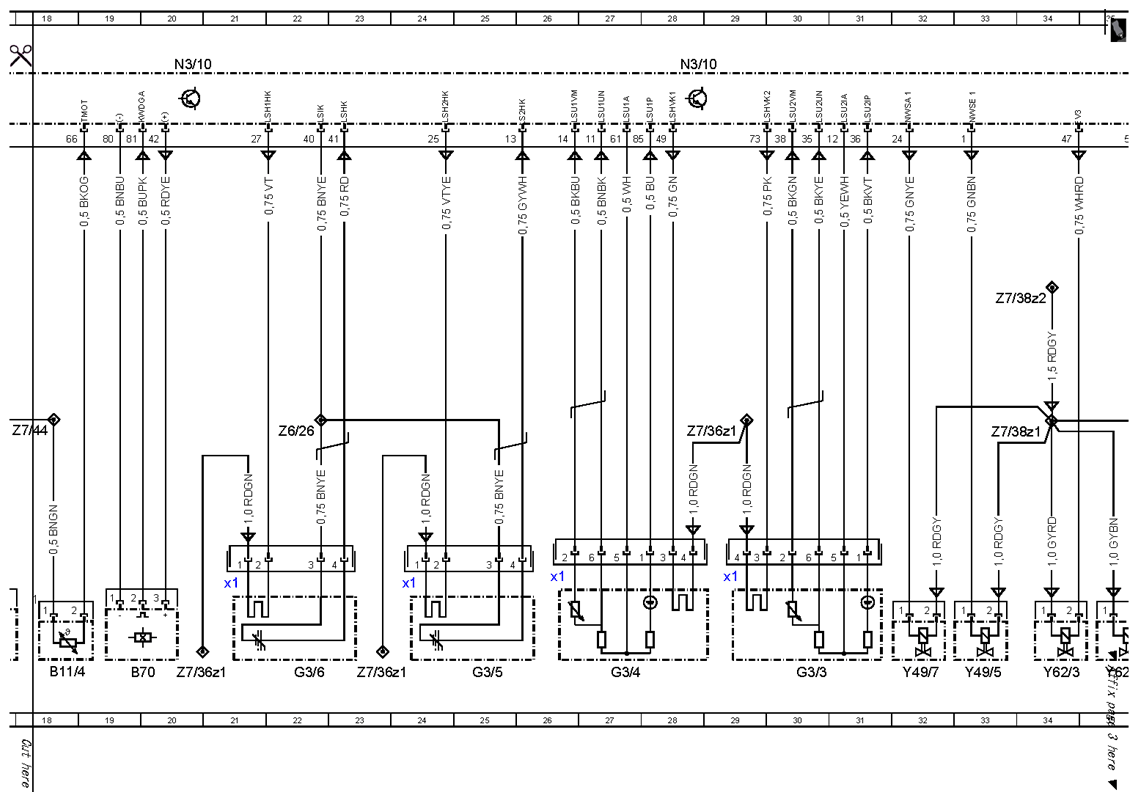

Fig 2: ME-SFI (ME) Gasoline Injection And Ignition System Control Unit - Circuit Diagram (2 Of 5)
G10054442Courtesy of MERCEDES-BENZ USA

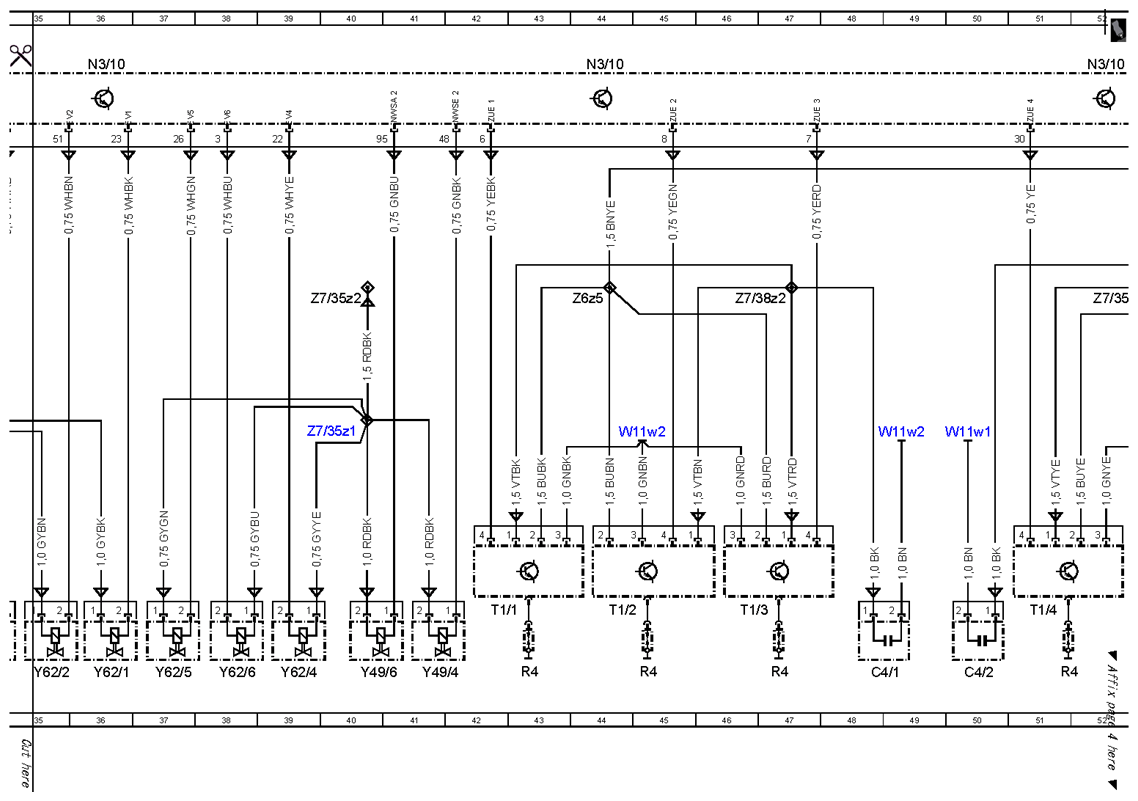

Fig 3: ME-SFI (ME) Gasoline Injection And Ignition System Control Unit - Circuit Diagram (3 Of 5)
G10054443Courtesy of MERCEDES-BENZ USA

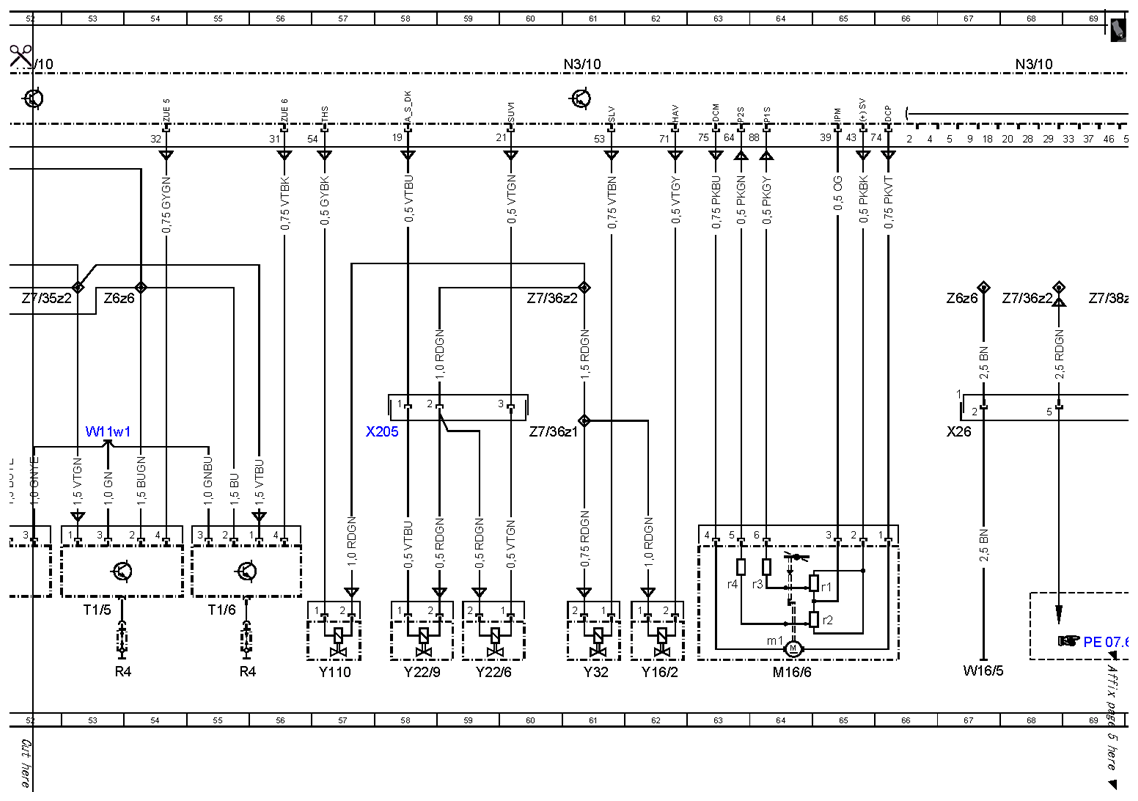

Fig 4: ME-SFI (ME) Gasoline Injection And Ignition System Control Unit - Circuit Diagram (4 Of 5)
G10054444Courtesy of MERCEDES-BENZ USA

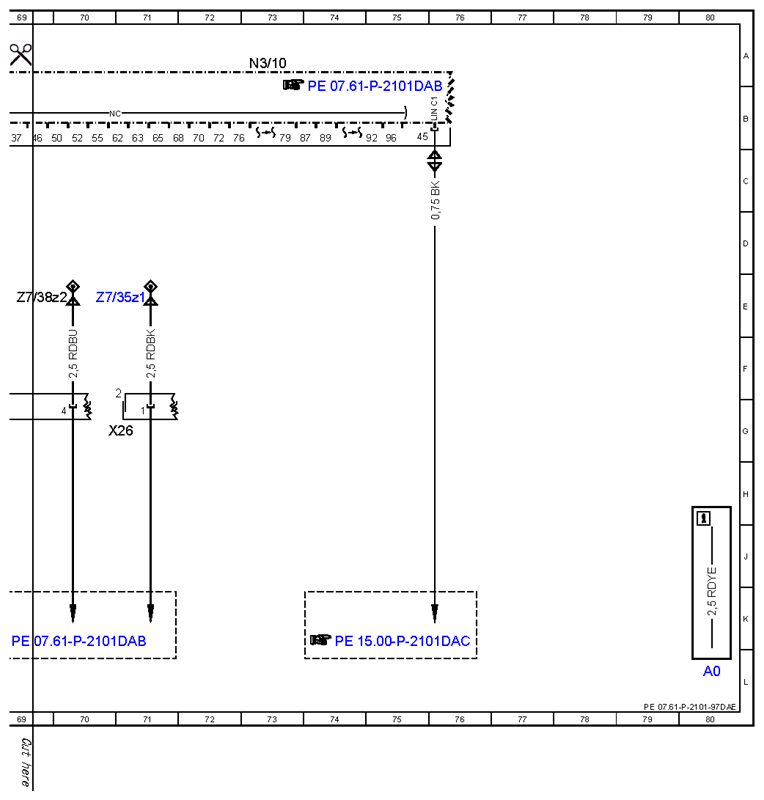

Fig 5: ME-SFI (ME) Gasoline Injection And Ignition System Control Unit - Circuit Diagram (5 Of 5)
G10054445Courtesy of MERCEDES-BENZ USA
