Remove/install fan unit - AR20.40-P-5050W
ENGINES 271, 276 in MODEL 172
Shown on engine 276
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |

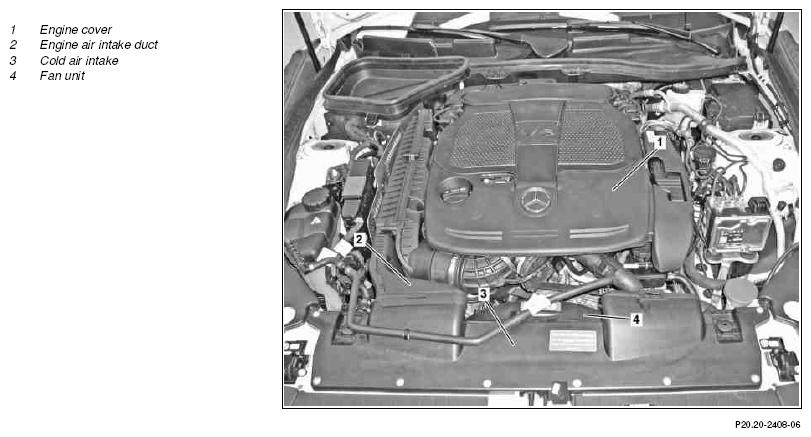

| 1 | Remove front engine cover (1) and engine intake air duct (2) upstream of air filter | ||
| 2 | Remove cold air intake (3) | ||
| 3 | Unclip upper air ducting on fan unit (4) | ||
| 4 | Remove front section of lower engine compartment paneling | AR61.20-P-1105W | |

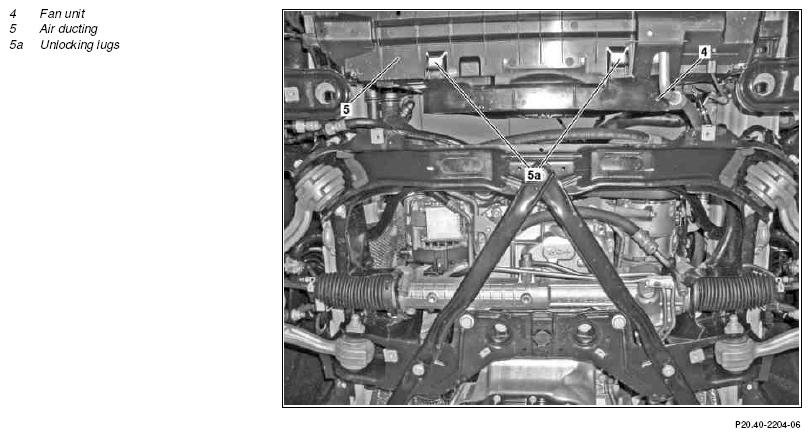

| 5 | Press unlocking fishplates (5a) apart and unclip lower air ducting (5) on the left and right from the fan unit (4) | ||
| 6 | Disconnect electrical connection on fan unit (4) and unclip electrical line on fan unit (4) | ||
| 7 | Unclip fan unit (4) on engine radiator | ||
| 8 | Remove fan unit (4) in the upward direction | ||
| 9 | Install in the reverse order |
