Remove/install left or right rear axle speed sensor - AR42.40-P-0820V

MODEL 171, 172

Shown on model 171.442

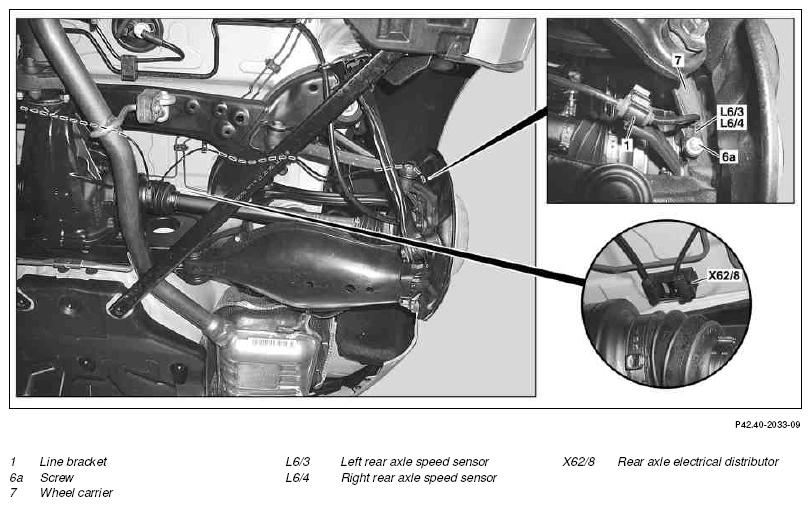

Fig 1: Identifying Rear Axle Speed Sensor Remove/Install Components - Shown On Model 171.442

Courtesy of MERCEDES-BENZ USA

Model 172

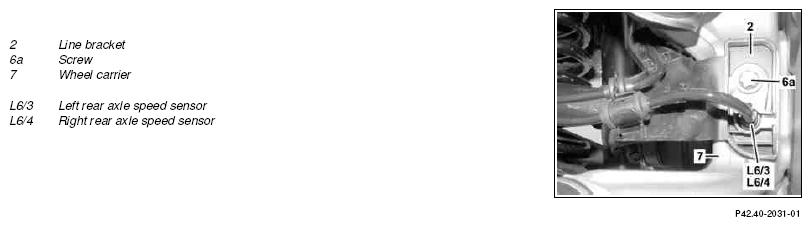

Fig 2: Identifying Rear Axle Speed Sensor Remove/Install Components - Shown On Model 172

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Switch off ignition
2	Remove left or right rear wheel		AP40.10-P-4050V
3	Detach left rear axle rpm sensor electrical connector (L6/3) or right rear axle rpm sensor electrical connector (L6/4) from rear axle electrical distributor electrical connector (X62/8)
4	Unclip electrical line of left rear-axle rpm sensor (L6/3) or right rear-axle rpm sensor (L6/4) from line bracket.	Observe routing of electrical line.
5	Unscrew screw (6a)	Model 171	*BA42.30-P-1001-02A
6	Pull left rear axle rpm sensor (L6/3) or right rear axle rpm sensor (L6/4) out off wheel carrier (7)	For model 172, pull line bracket (2) away from wheel carrier (7).
7	Install in the reverse order
8	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

REAR AXLE RPM SENSOR

Number	Designation		Model 171
BA42.30-P-1001-02A	Self-locking bolt of rear axle rpm sensor to wheel carrier	Nm	8
