Overview of system components, Adaptive Brake (ABR) - GF42.47-P-9997RD

MODEL 172.4

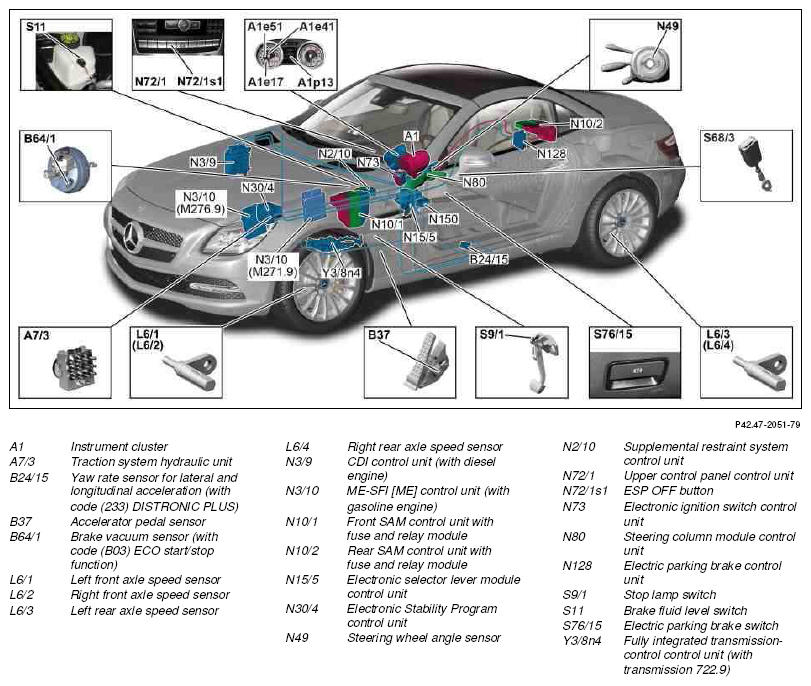

Fig 1: Overview Of Adaptive Brake System Components (ABR)

Courtesy of MERCEDES-BENZ USA

	Component description for instrument cluster	A1	GF54.30-P-6000RD
	Component description for yaw rate sensor for lateral and longitudinal acceleration	B24/15 With code (233) DISTRONIC PLUS	GF42.45-P-4810RD
	Component description for CDI control unit	N3/9 With engine 651.9	GF07.16-P-6000OLK
	Component description for ME-SFI [ME] control unit	N3/10 With engine 271.8	GF07.61-P-6000MGA
		N3/10 With engine 276.9	GF07.61-P-6000MMD
	Component description for front SAM control unit with fuse and relay module	N10/1	GF54.21-P-6070RD
	Component description for rear SAM control unit with fuse and relay module	N10/2	GF54.21-P-6030RD
	Component description for electronic selector lever module control unit	N15/5 with transmission 722.9	GF27.60-P-5163AHN
	Component description for Electronic Stability Program control unit	N30/4	GF42.45-P-5119RD
	Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001RD
	Component description for steering column tube module control unit	N80	GF54.21-P-6051RD
	Electric parking brake control unit, component description	N128	GF42.20-P-5005RD
	Component description for fully integrated transmission control unit	Y3/8n4 with transmission 722.9	GF27.60-P-5165AHN
	Upper control panel control unit, component description	N72/1 N72/1s1	GF54.21-P-6040RD
	Table of contents for function description, adaptive brake (ABR)		GF42.47-P-0999RD
