Remove/install upper control panel control unit - AR54.21-P-1262W
MODEL 172.4
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

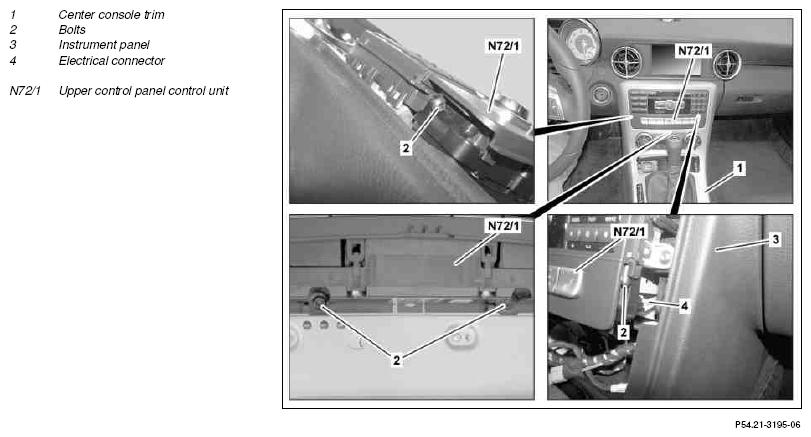

| 1 | Remove center console trim (1) | AR68.20-P-2000W | |
| 2 | Remove bolts (2) | ||
| 3 | Pull upper control panel control unit (N72/1) out of instrument panel (3) until electrical connector (4) is accessible | ||
| 4 | Disconnect electrical connector (4) and remove upper control panel control unit (N72/1) | ||
| 5 | Install in the reverse order |
