Remove/install cockpit clock - AR54.30-P-1000W

MODEL 172.4 with CODE (246) Analog clock

Shown with code (230) Exclusive parking assist and code (581) Comfort automatic air conditioning

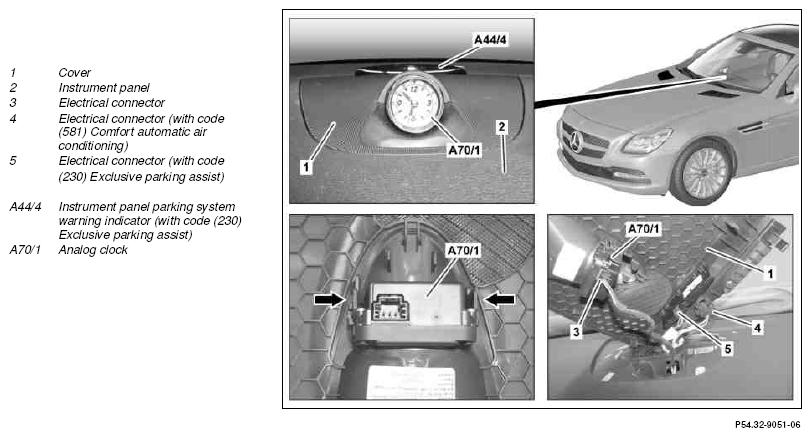

Fig 1: Identifying Cockpit Clock Remove/Install Components - Shown With Code (230)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip cover (1) from instrument panel (2)	On vehicles with code (581) Comfort automatic air conditioning, do not disconnect the electrical connector (4) from the sun sensor. On vehicles with code (230) Exclusive parking assist, do not disconnect the electrical connector (5) from the instrument panel parking system warning indicator (A44/4).
		Clip remover	Fig 2
2	Disconnect electrical connector (3) from analog clock (A70/1)
3	Push catch hooks (arrows) together and remove analog clock (A70/1) from cover (1)
4	Install in the reverse order
