Remove/install 12 Volt socket - AR54.10-P-1000W

MODEL 172.4

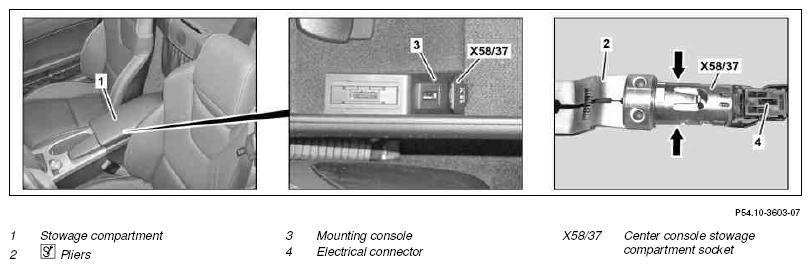

Fig 1: Identifying 12 Volt Socket Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition
2	Open stowage compartment (1)
3	Open flap on stowage compartment center console socket (X58/37)
4	Unlock stowage compartment center console socket (X58/37) with pliers (2) and pull out of console (3)	The studs on the pliers (2) must engage in the cutouts (arrows) in the housing of the stowage compartment center console socket (X58/37).
		Pliers	Figure
5	Disconnect electrical connector (4) from stowage compartment center console socket (X58/37)
6	Install in the reverse order

Fig 2: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
