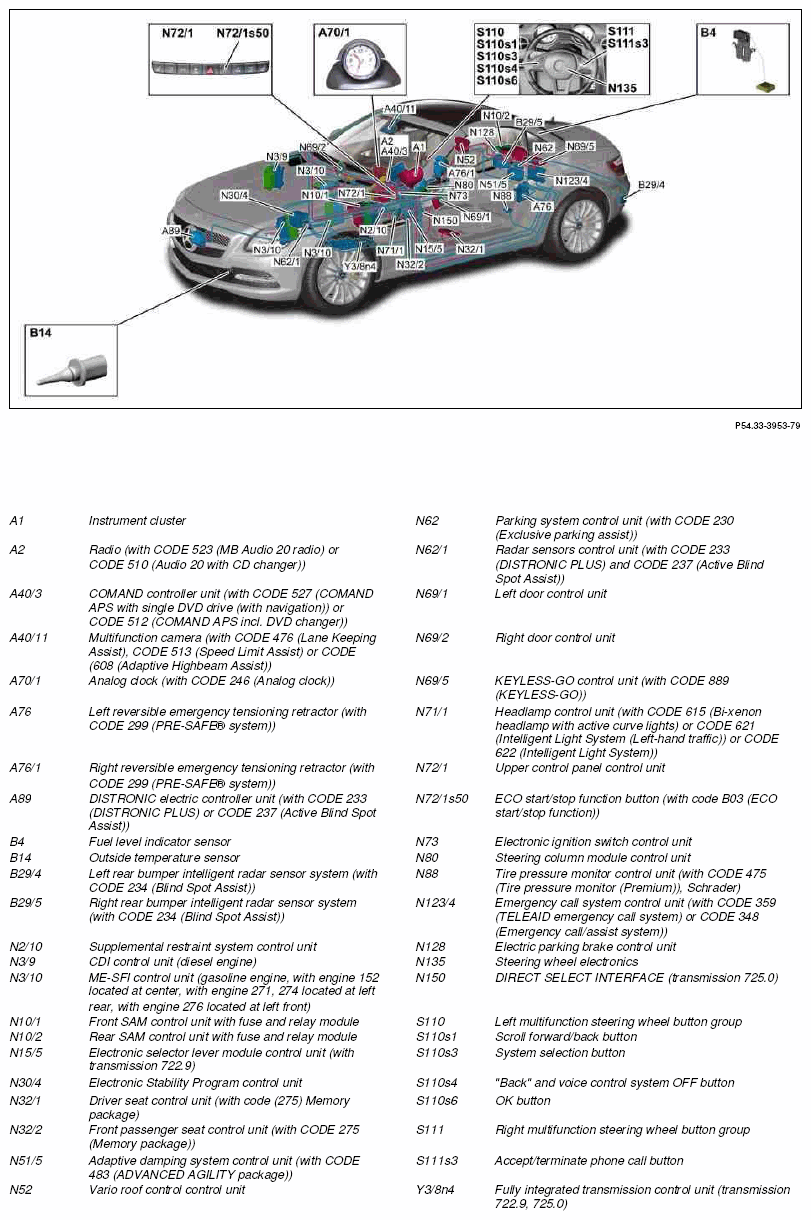

Overview of system components, instrument cluster (IC) component description - GF54.30-P-9996RD
MODEL 172.4
Shown on model 172.403
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
- Instrument illumination brightness control (A1r1)

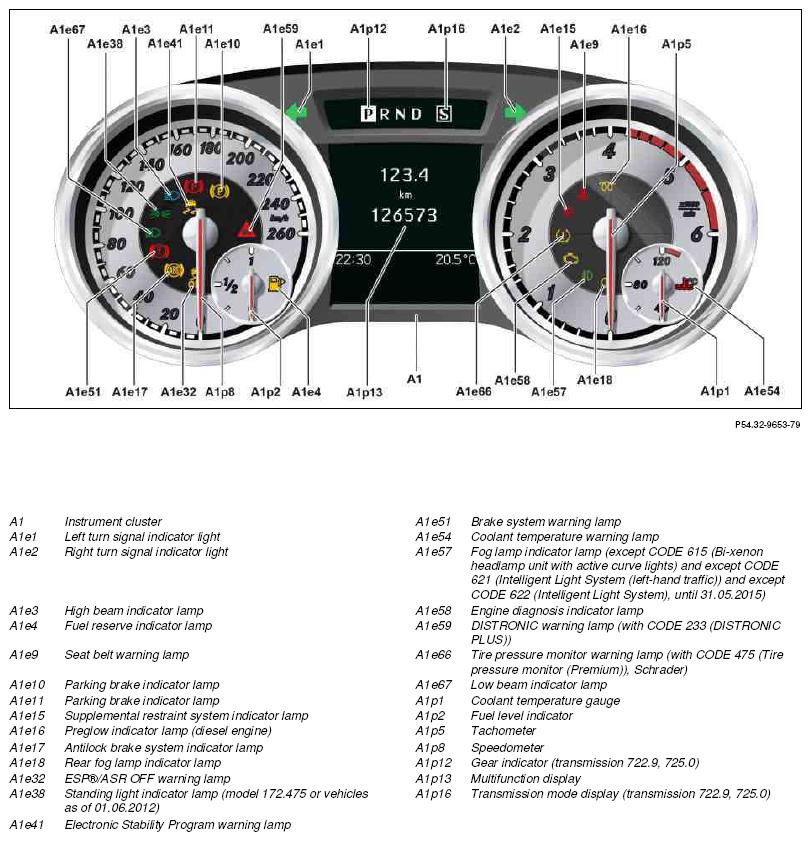

| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for the radio | MODEL 172.4 with CODE 510 (Audio 20 with CD changer) MODEL 172.4 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122RD | |
| Component description for COMAND controller unit | MODEL 172.4 with CODE 512 (COMAND APS with DVD changer) MODEL 172.4 with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136RD | |
| Component description for multifunction camera | MODEL 172.4 with CODE 476 (Lane keeping assist) MODEL 172.4 with CODE 513 (Speed Limit Assist) MODEL 172.4 with CODE 608 (Adaptive Highbeam Assist) A40/11 |
GF54.21-P-3300RD | |
| Component description for front reversible emergency tensioning retractors | MODEL 172.4 with CODE 299 (PRE-SAFE® system) A76, A761 |
GF91.40-P-4020RD | |
| Component description for DISTRONIC electric controller unit | MODEL 172.4 with CODE 233 (DISTRONIC PLUS) MODEL 172.4 with CODE 237 (Active Blind Spot Assist) A89 |
GF30.30-P-3213RD | |
| Component description for intelligent radar sensor control unit | MODEL 172.4 with CODE 234 (Blind Spot Monitoring) B29/4, B29/5 |
GF30.30-P-3305RD | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RD | |
| Component description for CDI control unit | MODEL 172.403 with ENGINE 651.980 N3/9 |
GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | MODEL 172.4 with ENGINE 152.9 N3/10 |
GF07.61-P-6000MMI | |
| MODEL 172.4 with ENGINE 271.861 N3/10 |
GF07.61-P-6000MGA | ||
| MODEL 172.4 with ENGINE 274.9 N3/10 |
GF07.61-P-6000MRE | ||
| MODEL 172.4 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MMD | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for electronic selector lever module control unit | MODEL 172 with TRANSMISSION 722.9 N15/5 |
GF27.60-P-5163AHN | |
| Component description for Electronic Stability Program control unit |
N30/4 | GF42.45-P-5119RD | |
| Component description for driver seat control unit | MODEL 172.4 with CODE 275 (Memory package) N32/1 |
GF91.29-P-5231RD | |
| Component description for front passenger seat control unit | MODEL 172.4 with CODE 275 (Memory package) N32/2 |
GF91.29-P-5241RD | |
| Component description for adaptive damping system control unit | MODEL 172.4 with CODE 483 (ADVANCED AGILITY package) N51/5 |
GF32.32-P-1010RD | |
| Vario roof control unit, component description | N52 | GF77.39-P-3210RD | |
| Parking system control unit component description | MODEL 172.4 with CODE 230 (Advanced Parking Guidance) N62 |
GF54.65-P-5002RD | |
| Component description for radar sensors control unit | MODEL 172.4 with CODE 233 (DISTRONIC PLUS) MODEL 172.4 with CODE 237 (Active Blind Spot Assist) N62/1 |
GF30.30-P-3301RD | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RD | |
| Component description for KEYLESS-GO control unit | MODEL 172.4 with CODE 889 (KEYLESS-GO) N69/5 |
GF80.61-P-4204RD | |
| Headlamp control unit, component description | MODEL 172.4 with CODE 615 (Bi-xenon headlamps with active light function) MODEL 172.4 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 172.4 with CODE 622 (Intelligent Light System) N71/1 |
GF82.10-P-2020RD | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RD | |
| Component description for tire pressure monitor control unit | MODEL 172.4 with CODE 475 (Tire pressure monitor (premium)) Schrader N88 |
GF40.15-P-5124RD | |
| Component description for emergency call system control unit | MODEL 172.4 with CODE 359 (TELE AID emergency call system) N123/4 |
GF82.95-P-3212RDU | |
| MODEL 172.4 with CODE 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212RDV | ||
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RD | |
| DIRECT SELECT interface, component description | MODEL 172 with TRANSMISSION 725.0 N150 |
GF27.19-P-1300ANH | |
| Component description for fully integrated transmission control unit | MODEL 172 with TRANSMISSION 722.9 Y38n4 |
GF27.60-P-5165AHN | |
| MODEL 172 with TRANSMISSION 725.0 Y38n4 |
GF27.60-P-5165ANH | ||
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997RD |
