Overview of energy management system components - GF54.10-P-9990RD
MODEL 172.4

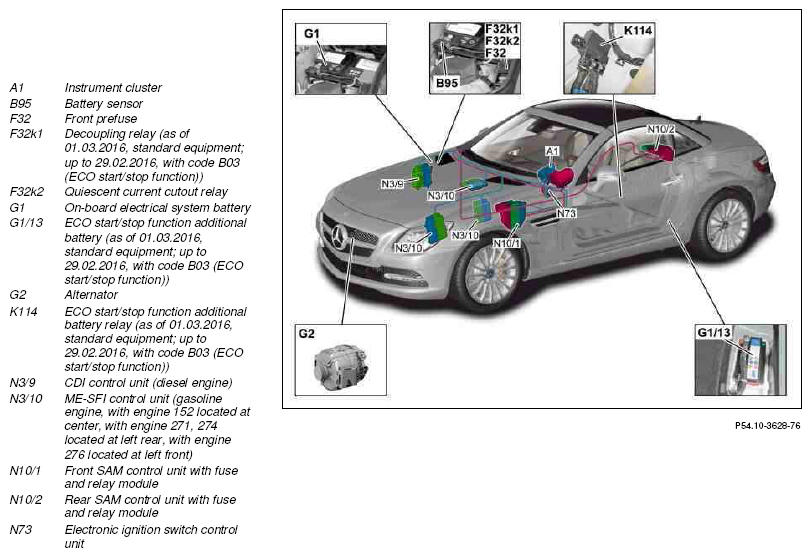

Illustration shows model 172.4 up to 29.02.2016
| Component description for instrument cluster | A1 | GF54.30-P-6000RD | |
| Component description for CDI control unit | Model 172.4 with engine 651.9 N3/9 |
GF07.16-P-6000OLK | |
| Component description for ME-SFI (ME) control unit | Model 172.4 with engine 152.9 N3/10 |
GF07.61-P-6000MMI | |
| Model 172.4 with engine 271.861 N3/10 |
GF07.61-P-6000MGA | ||
| Model 172.4 with engine 274.9 N3/10 |
GF07.61-P-6000MRE | ||
| Model 172.4 with engine 276.9 N3/10 |
GF07.61-P-6000MMD | ||
| Model 172.4 with engine 276.8 | GF07.61-P-6000MNC | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD | |
| Table of contents for function description of energy management | GF54.10-P-0990RD |
