Control unit for electronic selector lever module, task - GF27.19-P-5138-02R

Transmission 722.6 in model 230 except code (428a) steering wheel shift buttons

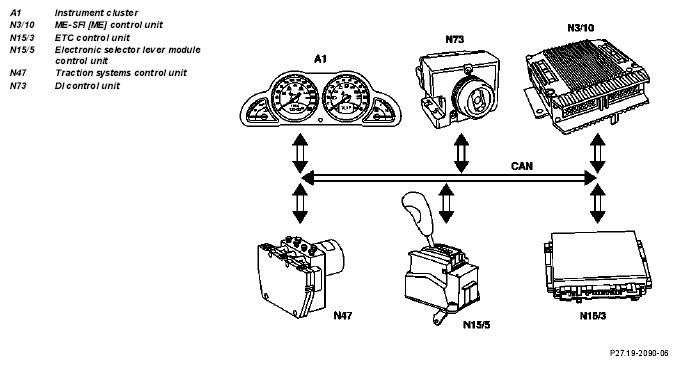

Fig 1: Control Unit For Electronic Selector Lever Module - Communication Diagram

Courtesy of MERCEDES-BENZ USA

The electronic selector lever module control unit (N15/5) receives digital and analog input signals, actuates various components or transmits information to various control units via the Controller Area Network bus class C (engine compartment) (CAN-C).

The selector lever positions and touch shifts carried out are detected in a non-contact manner by means of optoelectronic switches. A photoelectric barrier is closed or interrupted each time the position of the selector lever is changed.

Analog input signals:

Selector lever position
Transmission mode switch (S16/5)
Touch button +/-
Steering wheel gear shifter MINUS (S110/1) (models 230.474/479)
Steering wheel gear shifter PLUS (S111/1) (models 230.474/479)
Voltage supply (circuit 87)

Analog output signals:

R/P locking solenoid
Gate lighting (circuit 58d)

The following information is received via CAN-C.

Instrument cluster (A1):

Circuit 58 dimmed

Traction systems control unit N47

Right rear wheel speed
Left rear wheel speed
Set braking torque

Electronic ignition switch control unit (N73):

Stop lamp switch (S9/1)
Stop lamp feedback
Circuit 50 engine start switch (circuit 50)
Circuit 15 voltage supply switched UB (battery voltage) (circuit 15)
Message from drive authorization system (DAS)

The following information is transmitted via CAN-C.

Instrument cluster (A1):

Selector lever position for gear display (A1p12)

ETC [EGS] control unit (N15/3):

Selector lever position
Transmission mode switch (S16/5)
Steering wheel gear shifter MINUS (S110/1) (models 230.474/479)
Steering wheel gear shifter PLUS (S111/1) (models 230.474/479)
Touch button +/-
R/P-restraining magnet energized

Electronic ignition switch control unit (N73):

Drive authorization system [DAS] 3 information
Selector lever position for actuation of backup lamp

Motor electronics control unit (N3/10):

Selector lever position P/N
