Implausible fault messages in instrument cluster and/or implausible body electrical system function - AF40.15-P-6100A

MODEL 230.### #F up to 016293

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text
P	541011	Perform quick test
P	405070	Replace tire pressure monitor (TPM [RDK]) control module

Damage code:	Cause:	Remedy:
	A hardware fault in the tire pressure monitoring system (TMP [RDK] may impair CAN-B operation.	If you can confirm the named symptoms / notes: ↓
	Impaired CAN-B operation results in malfunctions in the instrument cluster and display instruments (e.g. jumps in fuel level or temperature indicator). Various warning and fault lamps go on and off in cycles. Exterior lights switch on and off without obvious cause. In addition, depending on the duration of the malfunction, fault codes (CAN communication disturbance) may be stored in the various control modules linked to CAN-B (such as the TPM [RDK], signal acquisition and actuation module (SAM), electronic ignition switch (EIS [EZS]), lower control panel (LCP [UBF]), vehicle power supply control module [BNS], roll bar soft top control module [UVS], automatic air conditioning (AAC [KLA]), instrument cluster with maintenance interval display [KIW], etc.).	1 Remove/install/replace TPM [RDK] control module

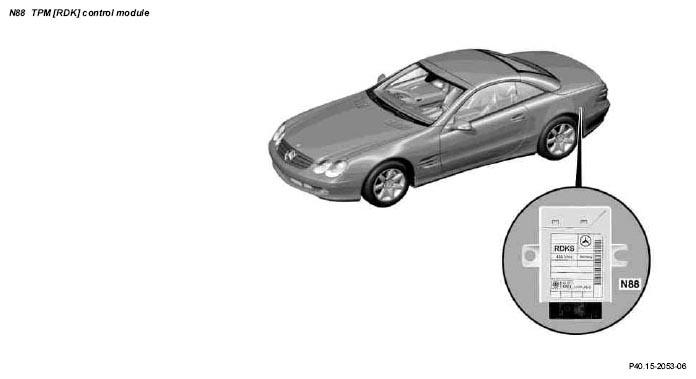

Fig 1: Identifying TPM (RDK) Control Module Location

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A 001 820 94 26	TPM [RDK] control module (433 MHz) ≥ Q4 version	1
A 001 820 95 26	TPM [RDK] control module (315 MHz) ≥ Q4 version	1
