Install repair bolt - AR40.20-P-0322-01R

CAMBER ADJUSTMENTS

Spring link in mm	Camber change	Torque strut in mm	Caster change
+4	a46'	± 0	+20'
-4	+44'	± 0	-18'

CASTER ADJUSTMENTS

Spring link in mm	Camber change	Torque strut in mm	Caster change
± 0	-10'	+4	a52'
± 0	+11'	-4	+52'

CAMBER AND CASTER ADJUSTMENTS

Spring link in mm	Camber change	Torque strut in mm	Caster change
+4	-55'	+4	-32'
-4	+57'	-4	+33'
+4	-35'	-4	+1° 11 '
-4	+33'	+4	-1° 10'

Jack up vehicle at the front (the suspension must be fully rebounded).
Undo bolt/nut from spring link.
For camber correction.

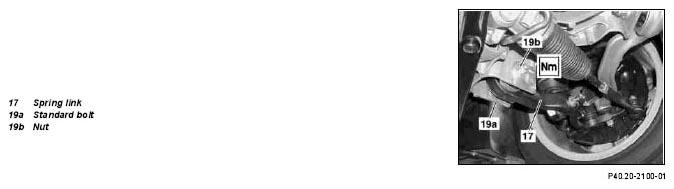

Fig 1: Identifying Spring Link And Standard Bolt
Courtesy of MERCEDES-BENZ USA
Detach bolted connection on torque strut.
For caster correction.

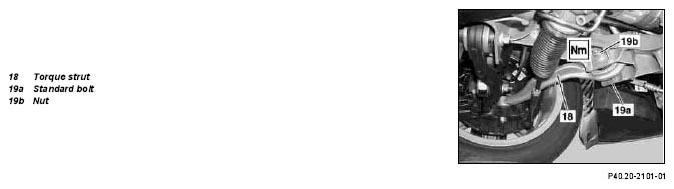

Fig 2: Identifying Torque Strut And Nut
Courtesy of MERCEDES-BENZ USA
The standard factory bolt must be replaced by a repair bolt when camber and caster are being adjusted.

Fig 3: Identifying Repair Bolt And Standard Factory Bolt
Courtesy of MERCEDES-BENZ USA

The standard bolt (19a) is centered by the bumps (arrows) in the bearing of the torque strut or spring link. Grooves in the repair bolt (19c) permit it to be installed in the bearing on either the right or left side, allowing the torque strut or spring link to be adjusted by a distance of 4 mm to the inside or outside.

After installation in the bushing in the torque strut or spring link do not turn the repair bolt (19c). Because the rubber bushing on the radius rod or track control arm should be free to turn when the suspension is compressed, the nut should not yet be tightened.

Fig 4: Identifying Repair Bolt Position

Courtesy of MERCEDES-BENZ USA
