Inspect front axle joint for play, inspect rubber boots - AP33.20-P-3353BA

MODEL 124, 129, 140, 170, 202, 208, 210, 215, 220, 230

MODEL 211.004 /006 /007 /008 /016 /020 /022 /023 /026 /028 /029 /041 /042 /052 /054 /056 /061 /065 /070 /072 /076 /077 /080 /082 /083 /084 /087 /089 /090 /092 /206 /208 /216 /220 /222 /223 /226 /241 /242 /254 /256 /261 /265 /270 /272 /276 /277 /280 /282 /283 /284 /287 /289 /290 /292 /606 /608 /616 /620

Diagram left

Model 124, 129

Diagram right

Model 140, 170, 202, 208, 210

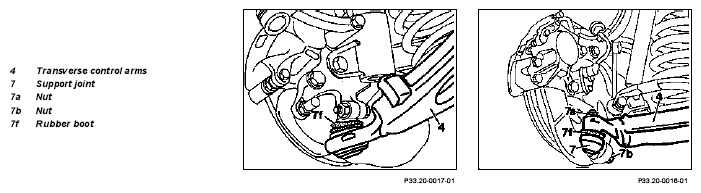

Fig 1: Inspecting Front Axle Joint For Play, Inspect Rubber Boots - Left: Model 124, 129 - Right: Model 140, 170, 202, 208, 210

Courtesy of MERCEDES-BENZ USA

Model 211, 215, 220, 230

Shown on model 220, left side

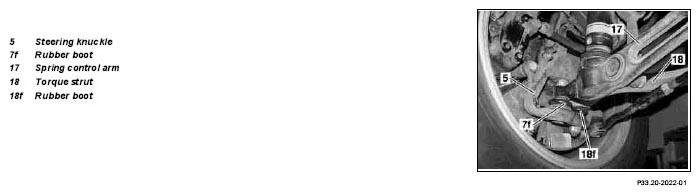

Fig 2: Inspecting Front Axle Joint For Play, Inspect Rubber Boots - Shown On Model 220, Left Side

Courtesy of MERCEDES-BENZ USA

Modification notes

2.5.06

Step 2.1

Check front axle supporting joints

	Checking
1	Check rubber boot (7f) on supporting joint for leakage and condition	If the rubber boot (7f) is leaking: ↓ Install new supporting joint (7) or lower transverse control arm (4): Install new supporting joint (7):
		Model 140	AR33.20-P-0440A
		Models 170, 202, 208, 210 except 210.08/28	AR33.20-P-0440B
		Model 210.08/28	AR33.20-P-0440D
		Model 211 except 211.08/09/ 28/29 Model 230	AR33.20-P-0440TX
		Model 215 Model 220 except 220.08/18/87 and except special protection version code 979 and top protection Z07	AR33.20-P-0440I
		Model 220.083/084/087/183/184/187 Model 211.08/28/09/29	AR33.20-P-0440IW
		Model 220 with special protection version code 979 with top protection Z07	AR33.20-P-0440MB
		Model 220.8	AR33.20-P-0440MP
+		Model 124, 129 Install new lower transverse control arm (4):	ra33001240440x
		Model 140	AR33.20-P-0510A
		Model 170, 202, 208	AR33.20-P-0510B
		Model 210 except 210.08/28	AR33.20-P-0510C
		Model 210.08/28	AR33.20-P-0510D
		Model 210.07 with special protection version, code 979, with light armoring, code Z04, or B6 armoring, code Z06	AR33.20-P-0510FB
		Model 211.08/09/28/29	AR33.20-P-0510TW
		Model 220.083/084/087/183/184/187	AR33.20-P-0510IW
