Remove/install belt drive components - AR13.20-P-0001RMG (SL63 AMG): Notes
ENGINE 156 in MODEL 230
MODIFICATION NOTES
| 6.8.09 | Value modified: guide pulley on coolant pump housing (between power steering pump and guide pulley with grooved channel profile) | *BA13.25-P-1003-01U |
| Remove/install | ||||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | ||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | ||
| 1 | Remove engine air intake duct and front engine cover | |||
| 2 | Remove bottom engine compartment paneling | AR61.20-P-1105R | ||

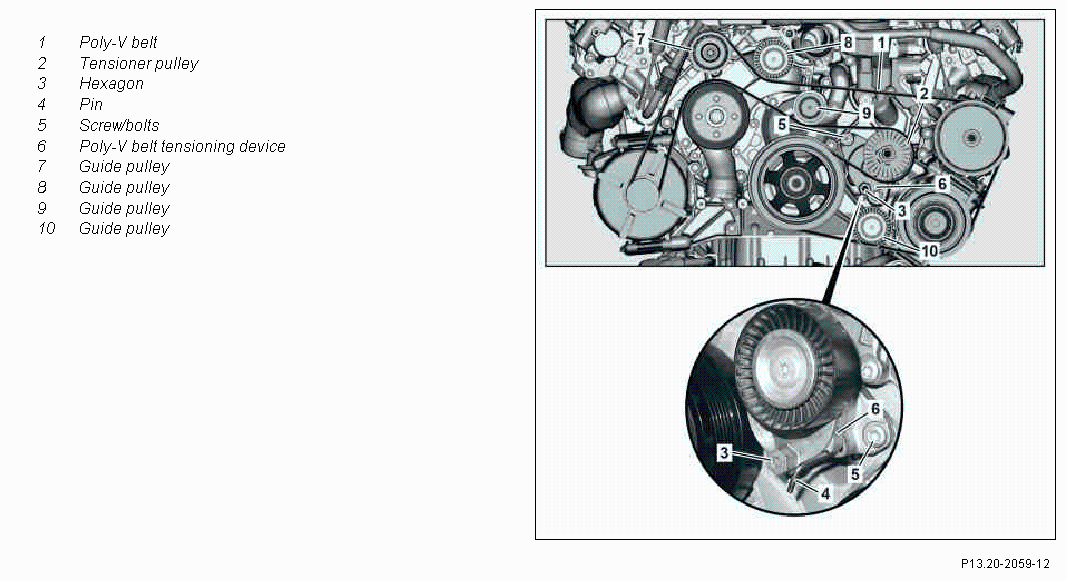

| 3 | Loosen poly-V-belt (1) and remove | AR13.22-P-3902-02AMG | ||
| Check | ||||
| 4 | Check profile of belt pulley and poly-V belt tensioning device (6) for damage and soiling | |||
| 5 | Check poly-V-belt (1) for wear and damage; replace if necessary | AP13.22-P-1352RX | ||
| 6 | Check guide pulleys (7, 8, 9, 10) and replace if necessary | |||
| *BA13.25-P-1003-01U | ||||
| *BA13.25-P-1004-01U | ||||
| *BA13.25-P-1005-01U | ||||
| *BA13.25-P-1006-01U | ||||
| Carry out operation steps 7 and 8 only if removing/installing the poly-V belt tensioning device (6) | ||||
| 7 | Remove screw/bolts (5) and poly-V belt tensioning device (6) | *BA13.25-P-1001-01U | ||
| Check | ||||
| 8 | Check poly-V belt tensioning device (6) for damage and soiling; replace if necessary | |||
| 9 | Install in the reverse order | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | ||
| 10 | Carry out engine test run | |||
BELT TENSIONING DEVICE
| Number | Designation | Engine 156 | ||
|---|---|---|---|---|
| BA13.25-P-1001-01U | Screw/bolt, poly-V belt tensioning device to timing case cover | (M8) | Nm | 20 |
| BA13.25-P-1003-01U | Guide pulley on coolant pump housing (between power steering pump and guide pulley with grooved channel profile) | Nm | 30 | |
| BA13.25-P-1004-01U | Guide pulley on coolant pump housing (between alternator and smooth guide pulley) | Nm | 20 | |
| BA13.25-P-1005-01U | Guide pulley (between poly-V-belt tensioning device and coolant pump) | Nm | 20 | |
| BA13.25-P-1006-01U | Guide pulley between A/C compressor and vibration damper | Nm | 30 |
