Remove, install poly V-belt - AR13.22-P-1202R (SL500, SL55 AMG)

ENGINE 113.963 in MODEL 230.475

ENGINE 113.992 in MODEL 230.474

ENGINE 113.991 in MODEL 215.374, 220.074 /174

ENGINE 112.973 in MODEL 230.467

ENGINE 113.995 in MODEL 230.472

Shown on engine 113

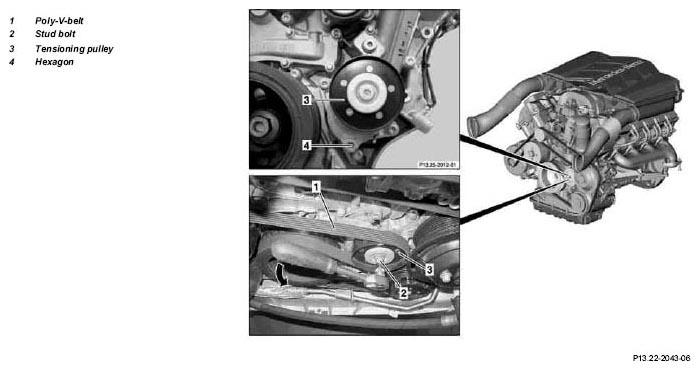

Fig 1: Identifying Poly V-Belt Components - Shown On Engine 113

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1.1	Remove poly-V-belt for supercharger	Vehicles with supercharger	AR13.21-P-1202RVK
2	Loosen poly-V-belt (1) and remove	Model 230.467/475: To do this swivel tensioning pulley (3) at stud bolt (2) in an anti-clockwise direction. Model 230.472 /474, 215, 220: To do this, swivel tensioning pulley (3) in counter-clockwise direction at hexagon (4).
	Checking
3	Inspect belt pulley sections and tensioning device for damage and dirt
4	Check poly-V-belt (1)
	Check poly-V-belt in visible area for wear		AP13.22-P-1352Z
	Install
5	Fit on poly V-belt (1), tension	Do not use any belt wax or similar products, as this decreases the mileage of the poly-V-belt. Begin in numerical order of the relevant running diagram with the tensioning pulley: ↓ Routing diagram of poly-V-belt
		Model 230.467/ 475	AR13.22-P-3902-02B
		Model 230.472 /474, 215, 220	AR13.22-P-3902-02RVK
6.1	Fit on poly-V-belt of compressor and tension	Vehicles with supercharger Do not use belt wax or similar products otherwise the poly-V-belt may slip.	AR13.21-P-1202RVK
