Divert air switchover valve location/task/design/function - GF07.05-P-3104M
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230
ENGINE 275.953 in MODEL 216, 221
ENGINE 275.954 in MODEL 230
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230
ENGINE 275.982 in MODEL 216, 221
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240

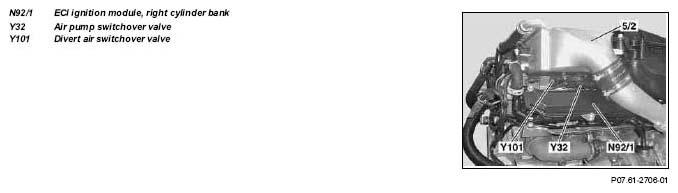

| Divert air switchover valve location | Mounted at the rear of the right cylinder head. Note the danger of mixing up it with the air pump switchover valve. |
||
| Divert air switchover valve task | To apply vacuum to both air switchover valves from the vacuum reservoir when actuation of the membrane cells takes place. | ||
| Divert air switchover valve structure/function | Supply of power to the electromagnetic valve takes place from terminal 87. The control unit ME actuates the valve from the earth side. An electromagnet with anchor actuates a valve which switches between the connections. |
