Torque Diagram For Exhaust Manifold - AR09.40-P-6020-11MC

Turbocharger

Number	Designation		Engine 275
BA09.40-P-1011-01H	Exhaust manifold on cylinder head	Nm	15

Fig 1: Identifying Assembly Arm (285 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Do Not Use Any Assembly Paste Or Similar Product!

Tighten All The Nuts (1 To 12) To The Specified Tightening Sequence With The Specified Torque.
Dismount Assembly Tool (01, 02).
Tighten All The Nuts (1 To 12) Once Again To The Specified Tightening Sequence With The Specified Torque.

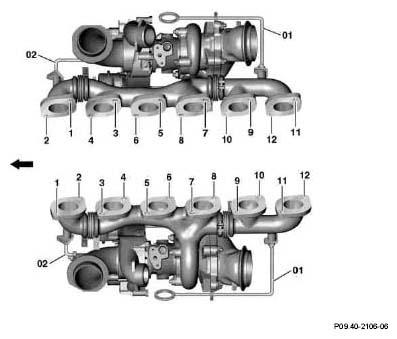

Fig 2: Identifying Exhaust Manifold Nuts
Courtesy of MERCEDES-BENZ USA
