Check Charge Air Cooler - AR09.41-P-6800-01H
| If Necessary After Test: ↓ | |||
| Replace Charge Air Cooler. | AR09.41-P-6817HH |

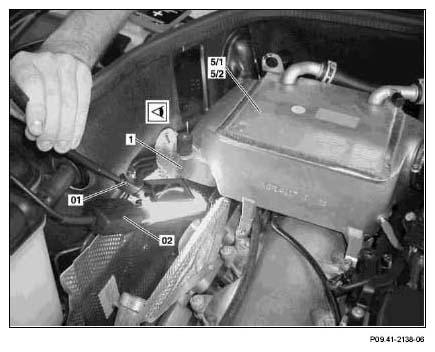

- Check Left And Right Charge Air Cooler (5/1, 5/2) Through Visual Inspection In The Air Intake Support (1) For Traces Of Fluid And Residues Of Coolant.
For This Use Inspection Mirror (01) And Hand Lamp (02) Or Cylinder Inspection Light With Flexible Endoscope.
Shown On Right Charge Air Cooler In Model 240
