Charge air cooling circulation pump, location - GF09.41-P-3102-01RA

Mounted underneath the left lamp unit in the return line to the low temperature cooler.

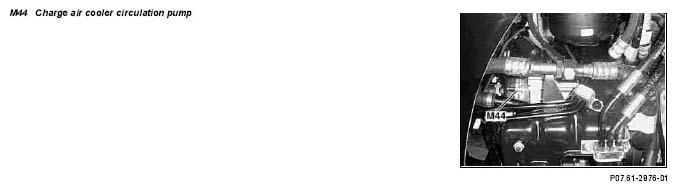

Fig 1: Identifying Charge Air Cooling Circulation Pump
G05068045Courtesy of MERCEDES-BENZ USA
