Removing/installing the deceleration air valve - AR09.40-P-3001R (SL600, SL65 AMG)
ENGINE 275 in MODEL 230
| Removing/installing | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between the columns of the and position the four support plates below the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood | AR88.40-P-1000R | |
| 2 | Remove engine trim panel | ||
| Model 230.476 | AR01.10-P-2405LA | ||
| Model 230.479 | AR01.10-P-2405IM | ||
| 3 | Remove engine compartment paneling | AR61.20-P-1105R | |
| Right deceleration air valve | |||
| 4 | Unscrew bolts (3) of deceleration air valve (110/4) | *BA09.40-P-1014-01H | |
| 5 | Remove right pneumatic line (4a) on the deceleration air valve (110/4) | ||
| Left deceleration air valve | |||
| 6 | Unscrew bolts (5) of deceleration air valve (110/4) | *BA09.40-P-1014-01H | |
| 7 | Remove left pneumatic line (4b) on the deceleration air valve (110/4) | ||
| 8 | Install in the reverse order | ||
| Checking | |||

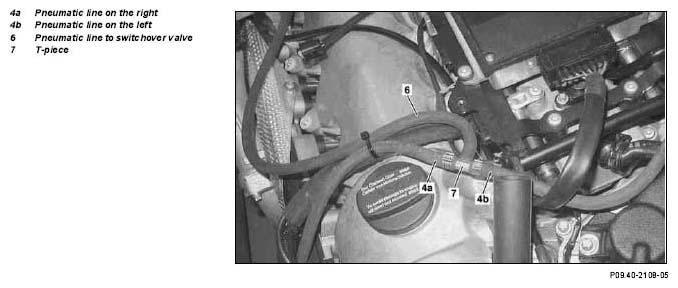

| 9 | Detach pneumatic line on the right (4a) and pneumatic line on the left (4b) from T-piece (7) | ||
| 10 | Pressurize deceleration air valve with a vacuum of 700 millibar | ||

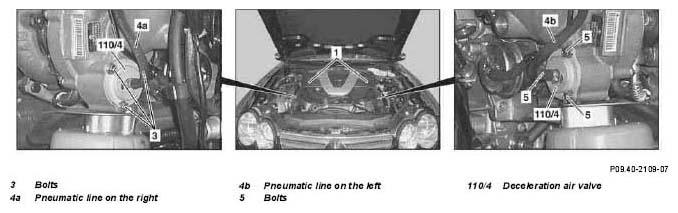

| Fig 3 |
TURBOCHARGER
| Number | Designation | Engine 275 | |
|---|---|---|---|
| BA09.40-P-1014-01H | Bolt for deceleration air valve to turbocharger | Nm | 7 |
