Remove/Install Divert Air Switchover Valve - AR09.40-P-3000M (SL600, SL65 AMG)

Engine 275 In Model 215, 216, 220, 221, 230

Engine 285 In Model 240

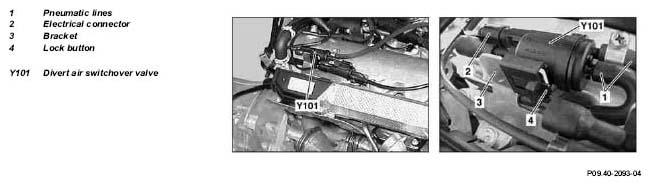

Fig 1: Identifying Divert Air Switchover Valve Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove engine trim panel	Engine 275.95	AR01.10-P-2405LA
		Engine 275.98	AR01.10-P-2405IM
2	Remove right air filter housing.	Model 215, 216, 220, 221, 230	AR09.10-P-1150LA
		Model 240	AR09.10-P-1150H
3	Dismount right charge air cooler from engine and connect with connected coolant hoses to engine hood	Do not open low temperature circuit.	AR09.41-P-6817HH
4	Remove pneumatic line (1) on divert air switchover valve (Y101)	Installation:  Check pneumatic lines (1) and hose clamps for wear and damage; replace if required.
5	Disconnect the electrical plug connector (2) on the divert air switchover valve (Y101)
6	Lift locking detent (4) and detach divert air switchover valve (Y101) in direction of travel from bracket (3)
7	Install in the reverse order
