Remove/Install Charge Air Manifold - AR09.41-P-1310HH (SL600, SL65 AMG)

Engine 275 In Model 215, 216, 220, 221, 230

Engine 285 In Model 240

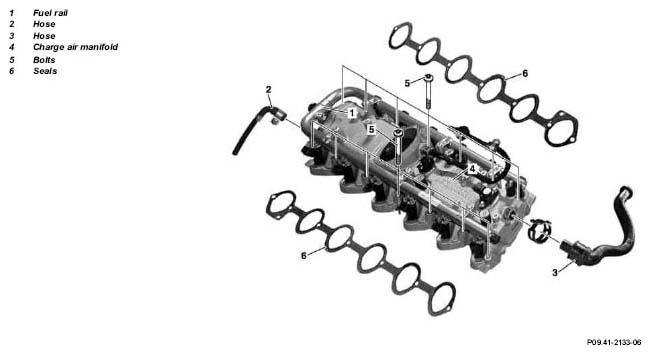

Fig 1: Identifying Charge Air Manifold Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove fuel distributor rail (1)		AR07.03-P-1451H
2	Dismount hose (3) of crankcase ventilation system	Check hose (3) and hose clamp for damage, replace if required.
3	Dismount hose (2) at charge air manifold (4)	Check hose (2) and hose clamp for damage, replace if required.
4	Dismount rear vacuum supply hose of brake system at charge air manifold (4)	Engine 275 Check vacuum supply hose and hose clamp for damage, replace if required.
5	Unscrew bolts (5) of charge air manifold (4)		*BA09.20-P-1001-01L
6	Take out charge air manifold (4)	Installation:  Replace seals (6)..
7	Install in the reverse order

Intake Manifold

Number	Designation			Engine 275, 285
BA09.20-P-1001-01L	Bolt, intake manifold to cylinder head	M6	Nm	8
