Supercharger Magnetic Clutch, Location/Task/Design/Function - GF09.50-P-3103AM: Notes
Engines 113.990 /991 /992 /993 /995

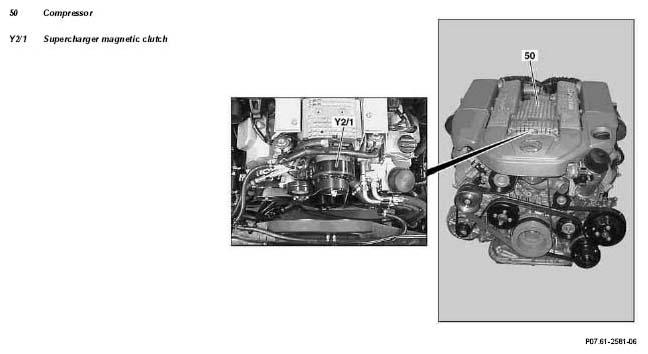

| Magnetic clutch for the mechanical supercharger - location | The magnetic clutch is flange-mounted at the front on the compressor at the height of the belt. | ||
| Magnetic clutch for the mechanical supercharger - task | The magnetic clutch quietly switches the compressor on and off depending on the operating condition of the engine. | ||
| Magnetic clutch for the mechanical supercharger - design | GF09.50-P-3103-03AM | ||
| Magnetic clutch for the mechanical supercharger - function | The magnetic clutch is actuated by the MESFI [ME] control unit (N3/10). Here a magnetic field is built up between the anchor and rotor by the solenoid whereby a friction-type connection is made between the friction linings on the anchor and rotor. The power consumption is about 47 W. |
