Supercharger - Location/Task/Design/Function - GF09.50-P-3102AM: Notes

Engine 113.990 /991 /992 /993 /995

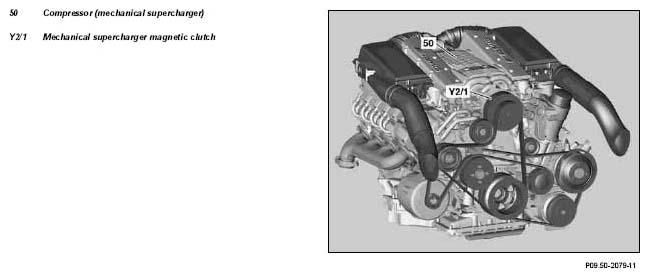

Fig 1: Identifying Compressor And Mechanical Supercharger Magnetic Clutch

Courtesy of MERCEDES-BENZ USA

	Supercharger location	The compressor is located between the two banks of cylinders in the V-angle of the engine.
	Supercharger task	The compressor compresses the quantity of air required for combustion, thus enhancing the cylinder charge of the engine. This increases engine torque and engine output.
	Supercharger design		GF09.50-P-3102-01AM
	Supercharger function		GF09.50-P-3102-02AM
