Position Of The Low Temperature Cooler - GF09.41-P-3103-01RA

Model 215, 230

Shown On Model 230

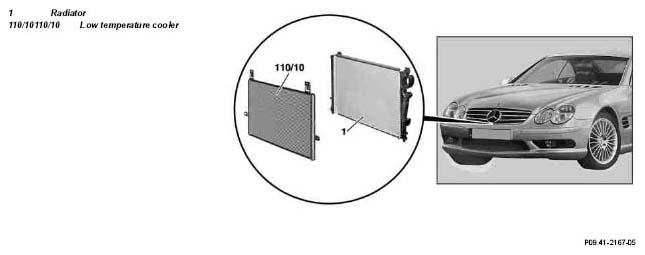

Fig 1: Identifying Position Of Low Temperature Cooler - Shown On Model 230
G04840038Courtesy of MERCEDES-BENZ USA

The Low Temperature Cooler Is Positioned Behind The Front Fender In Front Of The Radiator.
