Low Temperature Cooler, Location/Task/Design/Function - GF09.41-P-3103AM: Notes

Engines 113.990 /991 /992 /993 /995

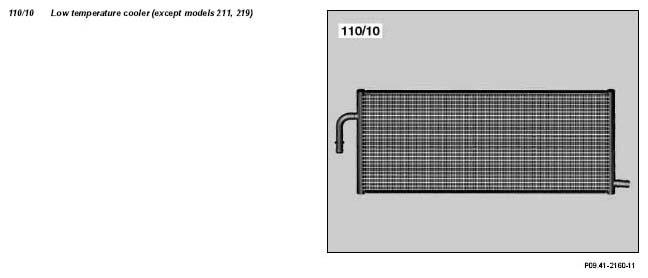

Fig 1: Identifying Low Temperature Cooler (Except Models 211, 219)

Courtesy of MERCEDES-BENZ USA

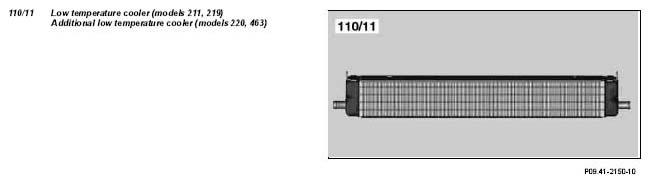

Fig 2: Identifying Low Temperature Cooler (Models 211, 219)

Courtesy of MERCEDES-BENZ USA

	Position of the low temperature cooler	Models 211, 219	GF09.41-P-3103-01T
		Model 220	GF09.41-P-3103-01AM
		Models 215, 230	GF09.41-P-3103-01RA
		Model 463	GF09.41-P-3103-01GA
	Task of the low temperature cooler	The low temperature cooler cools the coolant heated in the charge air cooler in the low-temperature cooling circuit.
	Design of the low temperature cooler	The low temperature cooler is an air/fluid heat exchanger.
	Function of the low temperature cooler	The airstream flows through the cooling fins and thus cools the coolant flowing through the low temperature cooler. The water cooling makes it possible to achieve a higher efficiency of the charge air cooling.
