Charge Pressure Cooler, Location/Task/Design/Function - GF09.41-P-3100M: Notes
Engine 275.950 In Model 215, 220
Engine 275.951 In Model 230
Engine 275.953 In Model 216, 221
Engine 275.954 In Model 230
Engine 275.980 In Model 215, 220
Engine 275.981 In Model 230
Engine 275.982 In Model 216, 221
Engine 285.950 In Model 240
Engine 285.980 In Model 240

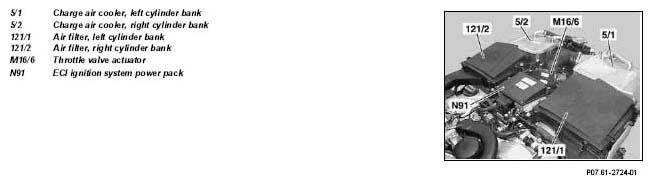

| Charge air cooler position | For each cylinder bank, a charge air cooler is mounted behind the air filter. | ||
| Charge air cooler task | Cool off charge air which is compressed and heated by the turbochargers. | ||
| Charge air cooler design | The compact charge air coolers out of aluminum are designed as a water/air cooler. Its own low temperature cooling circuit dissipates the heat. | ||
| Charge air cooler function | GF09.41-P-3100-01M |
